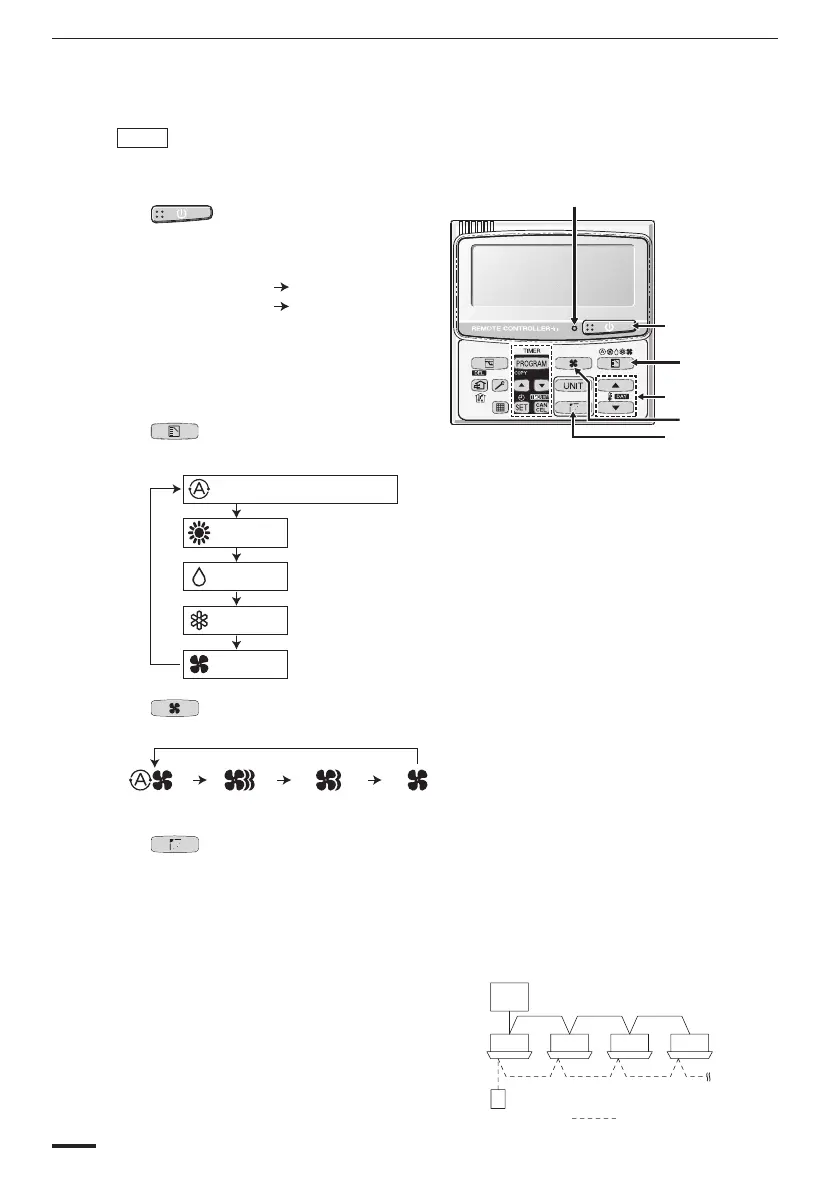

Timer Remote Controller (Optional parts)
(Wired type: available for all indoor units)
NOTE
For details, refer to the Operating Instructions attached to the optional Timer
Remote Controller.
3.
(Fan speed) button
Changing the fan speed.
AUTO STRONG MEDIUM WEAK
NOTE :
When Mode select button is set to FAN,
AUTO mode cannot be selected.
4.
(Swing/Air direction) button
Push the Swing/Airfl ow direction button to set the auto swing or air direction to a specifi c
angle. (For details, see “Adjusting Airfl ow Direction” section.)
5.
Temperature setting buttons
Changing the temperature setting.
Push the Temperature Setting buttons to change the desired temperature setting.
... Auto cooling-heating mode detects
the difference between the preset
temperature on the controller and
the actual room temperature.
Then it automatically selects heating
or cooling mode.
(The automatic heating and cooling
control for 2WAY and mini VRF system
can be performed when all indoor units
in the same refrigerant circuit are
controlled in a group control.)
HEAT
DRY
COOL
FAN
AUTO COOL-HEAT
Group Control
Group control function is suitable for operating
the multiple air conditioners in a large single room.
• Up to 8 units can be connected.
• Operation of all indoor units in the same mode
except for airfl ow direction.
• Use the indoor unit’s temperature sensor.
Remote controller
Signal line
Outdoor unit
Names and Operations
1.
(Start/Stop) button
Pushing this button starts, and pushing
again stops the unit.
When started
lights up
When stopped
goes out
Operation lamp :
Operation lamp
The lamp is turned on when an air
conditioner is in operation.
This lamp blinks when an error occurs or
a proatective device is activated.
2.
(Mode select) button
Pushing this button to select an operation mode.
1
2
5
3
4
Operation lamp
ex.) Timer Remote Controller
