8-19. CZ-RWSY2
1. Accessories
2. Installing the Receiver Unit
No. Accessories Quantity
1
Receiver
2
1
No. Accessories Quantity
3
Remote Control Holder
1
4
AAA alkaline batteries
2
5
Tapping screw 4x16
2
6
Clamper
1
1Remote Controller

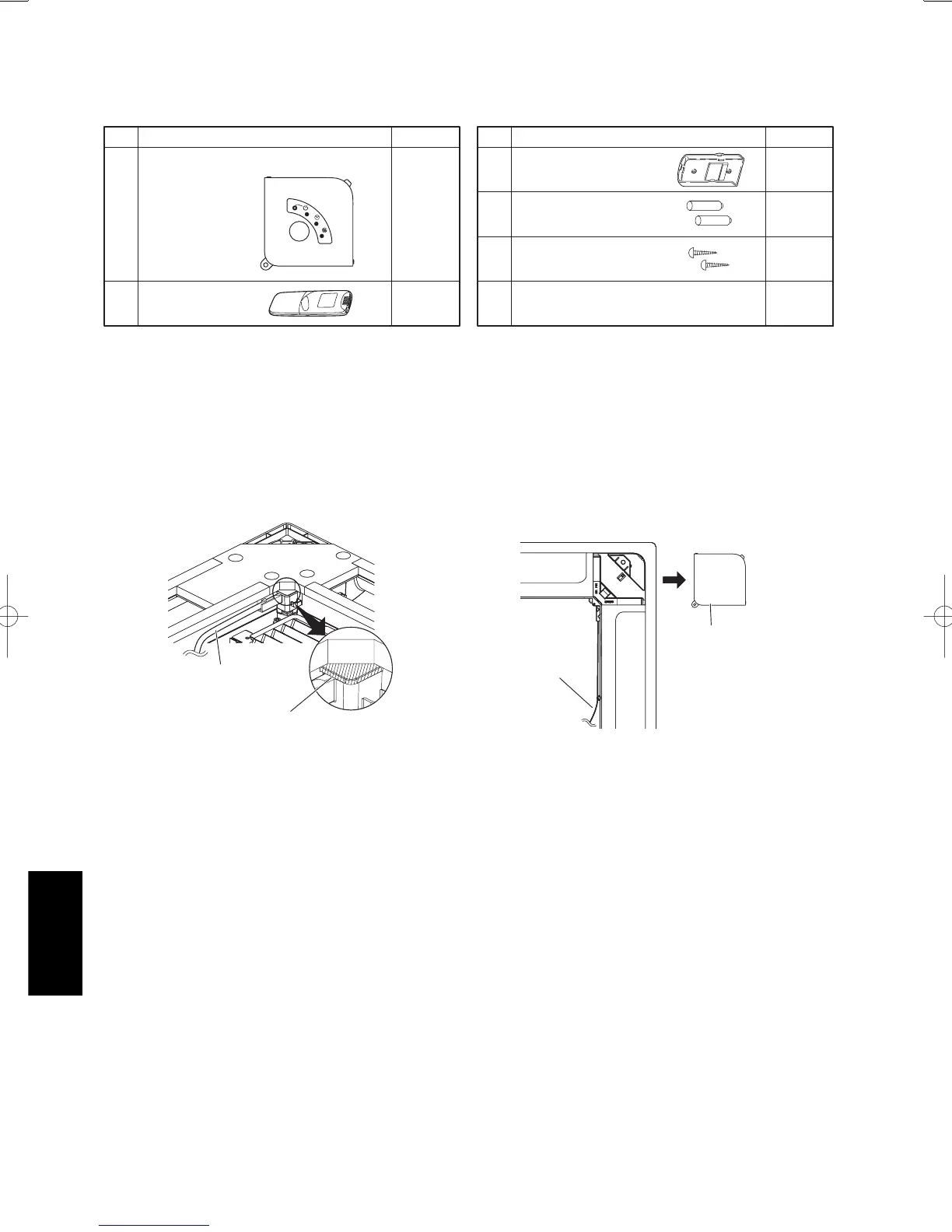

As the receiver can only be installed in the corner where the panel wire comes out, as shown in Fig. 8-32,
consideration should be given to orientation when fitting the panel to the indoor unit.
1. Twist off the circled area shown in Fig. 8-32 with pliers or similar.
2. Remove the suction grille and corner cover. (Fig. 8-33)
Break off
Panel wire
Corner cover
Panel wire
Fig. 8-32 Fig. 8-33
