Panasonic S-36PU1E5A - Page 462

3-8
3
3-1. Indoor Units
䡵
Low Silhouette Ducted Type S-36PF1E5A / S-45PF1E5A / S-50PF1E5A / S-60PF1E5A / S-71PF1E5A
S-100PF1E5A / S-125PF1E5A / S-140PF1E5A

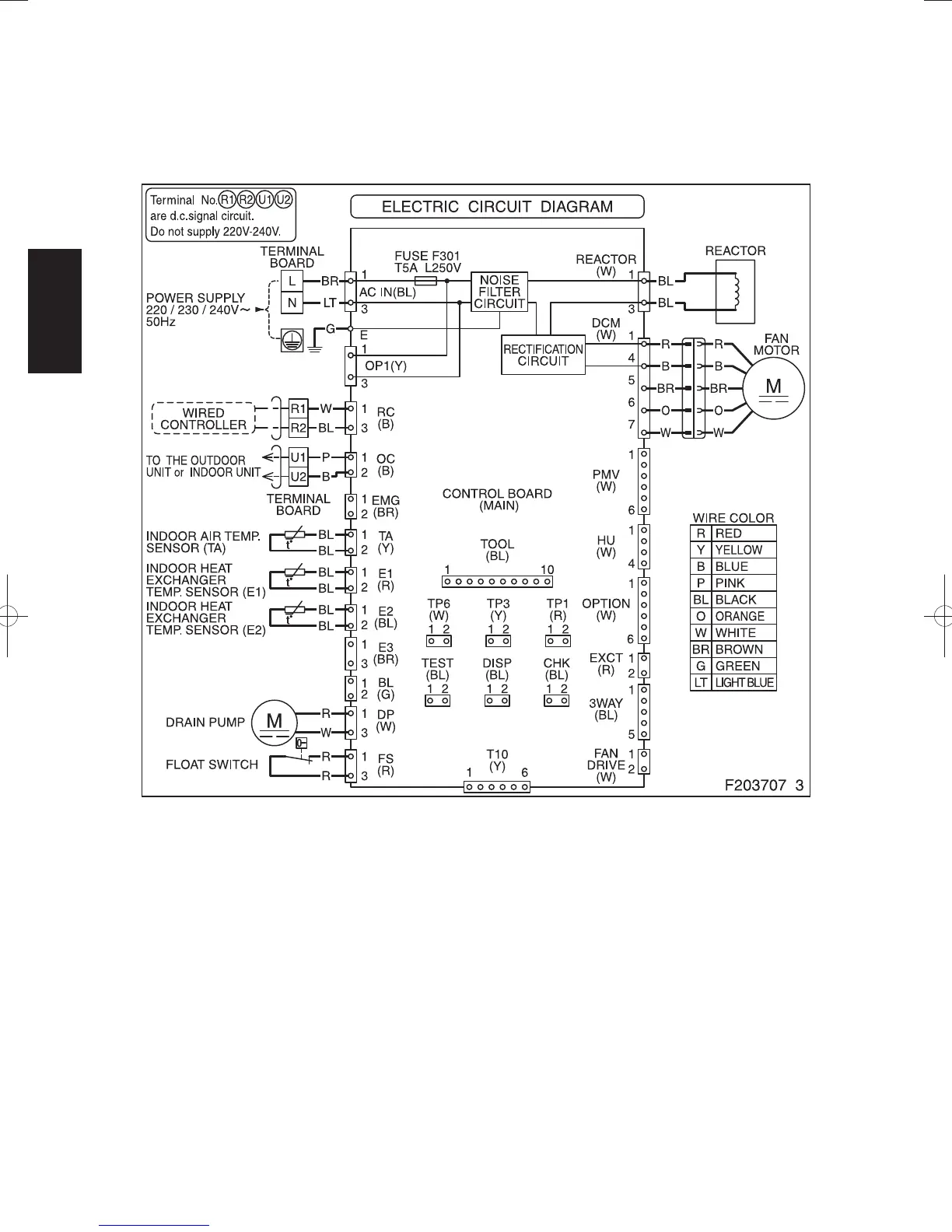

Electric Wiring Diagram
