3-2

3-1. Indoor Units

4-Way Cassette Type S-36PU1E5A / S-45PU1E5A / S-50PU1E5A / S-60PU1E5A / S-71PU1E5A /

S-100PU1E5A / S-125PU1E5A / S-140PU1E5A

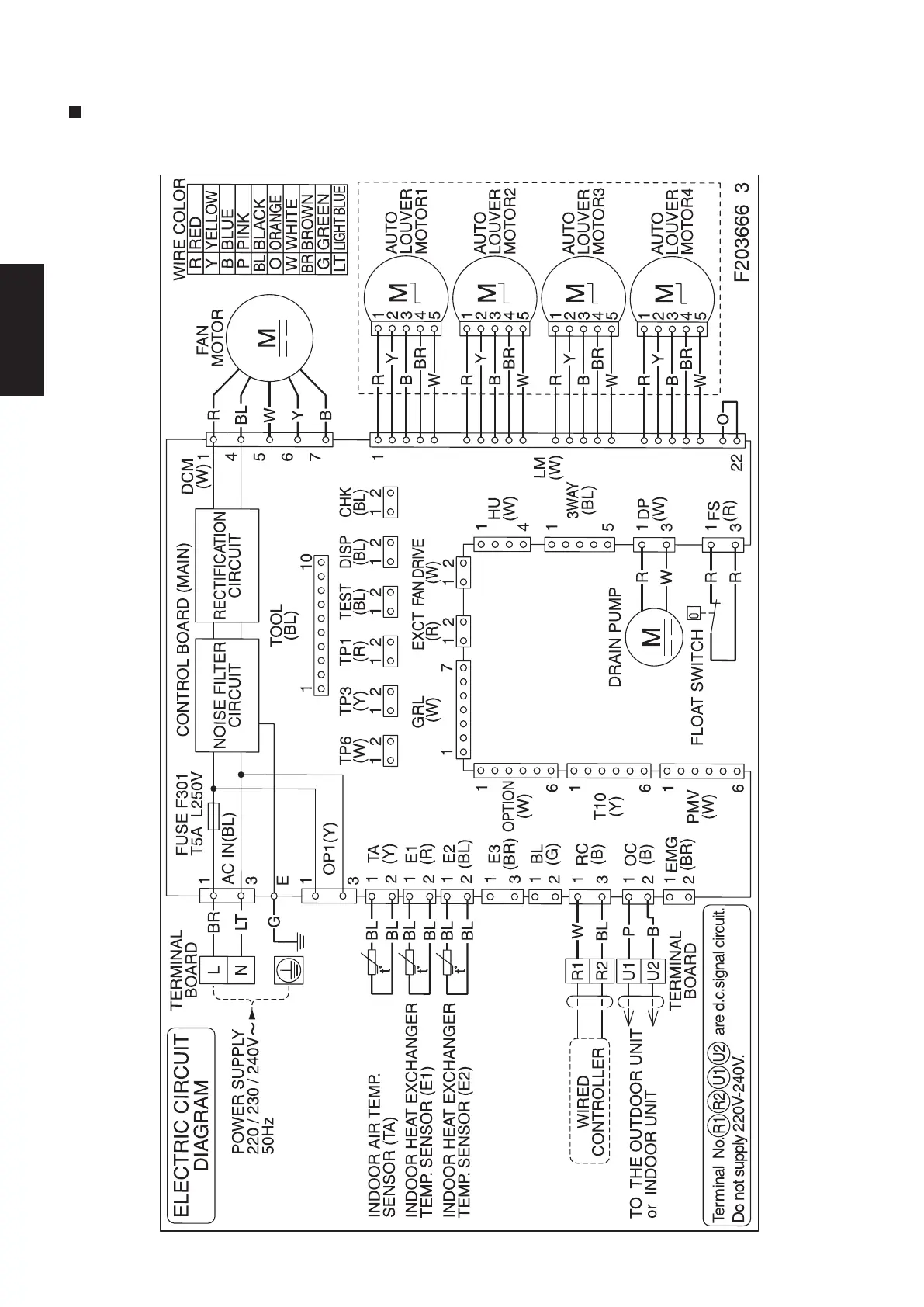

Electric Wiring Diagram

SM830231-02Single欧州.indb2SM830231-02Single欧州.indb2 2014/09/0516:33:002014/09/0516:33:00
