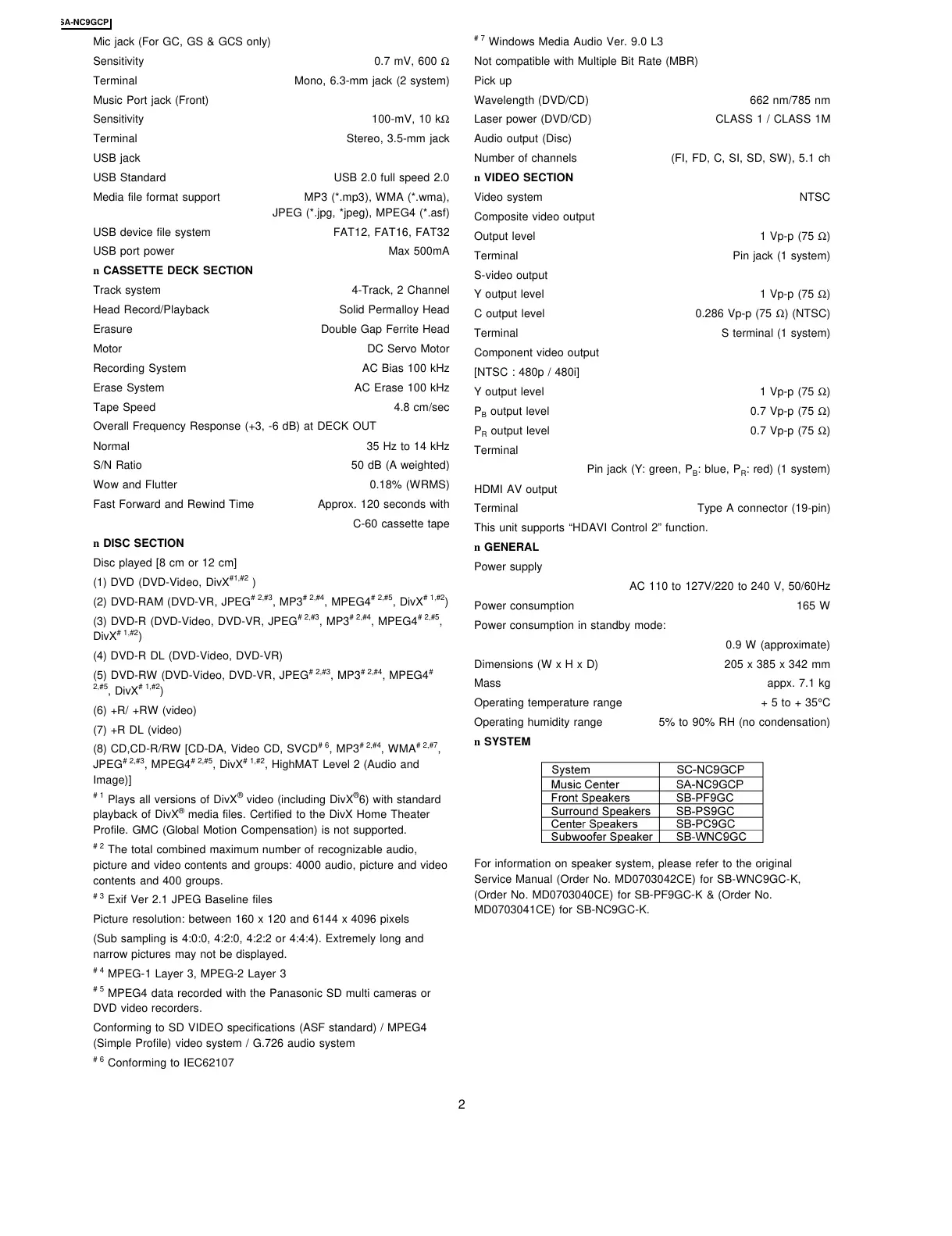

Mic jack (For GC, GS & GCS only)
Sensitivity 0.7 mV, 600 Ω
Terminal Mono, 6.3-mm jack (2 system)
Music Port jack (Front)
Sensitivity 100-mV, 10 kΩ
Terminal Stereo, 3.5-mm jack
USB jack
USB Standard USB 2.0 full speed 2.0
Media file format support MP3 (*.mp3), WMA (*.wma),
JPEG (*.jpg, *jpeg), MPEG4 (*.asf)
USB device file system FAT12, FAT16, FAT32
USB port power Max 500mA
n CASSETTE DECK SECTION
Track system 4-Track, 2 Channel
Head Record/Playback Solid Permalloy Head
Erasure Double Gap Ferrite Head
Motor DC Servo Motor
Recording System AC Bias 100 kHz
Erase System AC Erase 100 kHz
Tape Speed 4.8 cm/sec
Overall Frequency Response (+3, -6 dB) at DECK OUT
Normal 35 Hz to 14 kHz
S/N Ratio 50 dB (A weighted)
Wow and Flutter 0.18% (WRMS)
Fast Forward and Rewind Time Approx. 120 seconds with
C-60 cassette tape
n DISC SECTION
Disc played [8 cm or 12 cm]
(1) DVD (DVD-Video, DivX
#1,#2
)
(2) DVD-RAM (DVD-VR, JPEG
# 2,#3
, MP3
# 2,#4
, MPEG4
# 2,#5
, DivX
# 1,#2
)
(3) DVD-R (DVD-Video, DVD-VR, JPEG
# 2,#3
, MP3
# 2,#4
, MPEG4
# 2,#5
,
DivX
# 1,#2
)
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, JPEG
# 2,#3
, MP3
# 2,#4
, MPEG4
#
2,#5
, DivX
# 1,#2
)
(6) +R/ +RW (video)
(7) +R DL (video)
(8) CD,CD-R/RW [CD-DA, Video CD, SVCD
#6
, MP3
# 2,#4
, WMA
# 2,#7
,
JPEG
# 2,#3
, MPEG4
# 2,#5
, DivX
# 1,#2
, HighMAT Level 2 (Audio and
Image)]
#1
Plays all versions of DivX
®
video (including DivX
®
6) with standard
playback of DivX
®
media files. Certified to the DivX Home Theater
Profile. GMC (Global Motion Compensation) is not supported.
#2
The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture and video
contents and 400 groups.
#3
Exif Ver 2.1 JPEG Baseline files
Picture resolution: between 160 x 120 and 6144 x 4096 pixels
(Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and
narrow pictures may not be displayed.
#4
MPEG-1 Layer 3, MPEG-2 Layer 3
#5
MPEG4 data recorded with the Panasonic SD multi cameras or
DVD video recorders.
Conforming to SD VIDEO specifications (ASF standard) / MPEG4
(Simple Profile) video system / G.726 audio system
#6
Conforming to IEC62107
#7
Windows Media Audio Ver. 9.0 L3
Not compatible with Multiple Bit Rate (MBR)
Pick up
Wavelength (DVD/CD) 662 nm/785 nm
Laser power (DVD/CD) CLASS 1 / CLASS 1M
Audio output (Disc)
Number of channels (FI,FD,C,SI,SD,SW),5.1ch
n VIDEO SECTION
Video system NTSC
Composite video output
Output level 1Vp-p(75Ω)
Terminal Pinjack(1system)
S-video output
Y output level 1Vp-p(75Ω)
C output level 0.286 Vp-p (75 Ω)(NTSC)
Terminal S terminal (1 system)
Component video output
[NTSC : 480p / 480i]
Y output level 1Vp-p(75Ω)
P
B
output level 0.7 Vp-p (75 Ω)
P
R
output level 0.7 Vp-p (75 Ω)
Terminal
Pin jack (Y: green, P
B
:blue,P
R
: red) (1 system)
HDMI AV output
Terminal Type A connector (19-pin)
This unit supports “HDAVI Control 2” function.
n GENERAL
Power supply
AC 110 to 127V/220 to 240 V, 50/60Hz
Power consumption 165 W
Power consumption in standby mode:
0.9 W (approximate)
Dimensions (W x H x D) 205 x 385 x 342 mm
Mass appx. 7.1 kg
Operating temperature range +5to+35°C
Operating humidity range 5% to 90% RH (no condensation)
n SYSTEM
For information on speaker system, please refer to the original
Service Manual (Order No. MD0703042CE) for SB-WNC9GC-K,
(Order No. MD0703040CE) for SB-PF9GC-K & (Order No.
MD0703041CE) for SB-NC9GC-K.
