Panasonic SA-PT650P - Page 87

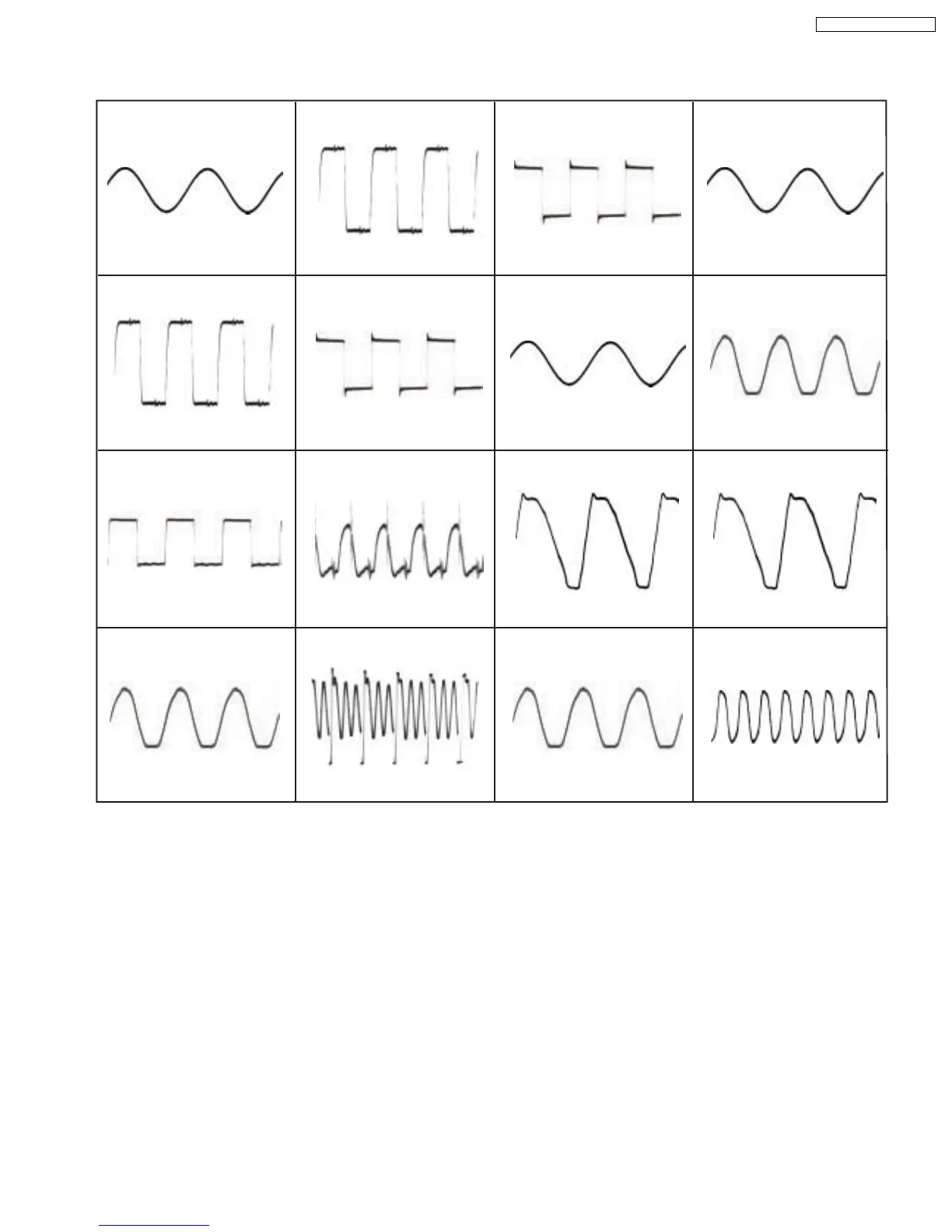

15.8.2. Waveform 2
WF No. IC5200-2,22 (PLAY)
0.6Vp-p(200usec/div)
WF No. IC5500-1,3,5 (PLAY)
7.2Vp-p(500nsec/div)
WF No. IC5701-1 (PLAY) WF No. IC5701-2,3,4 (PLAY) WF No. IC5799-2 (PLAY)
WF No. IC5799-3 (PLAY)
5Vp-p(2usec/div) 300Vp-p(1usec/div) 100Vp-p(2usec/div)
10.8Vp-p(2usec/div)
WF No. IC5500-8 (PLAY)
5.6Vp-p(500nsec/div)
WF No. IC5799-5 (PLAY) WF No. IC5801-1,2,3 (PLAY) WF No. IC6901-5 (PLAY)
280Vp-p(5usec/div) 0.5Vp-p(2usec/div)
2.8Vp-p(100nsec/div)
WF No. IC5400-2,22 (PLAY)
0.6Vp-p(200usec/div)
WF No. IC5400- 1 (PLAY)
5.8Vp-p(1usec/div)
WF No. IC5400-10,14 (PLAY)
76Vp-p(1usec/div)
WF No. IC5300- 1 (PLAY)
5.8Vp-p(1usec/div)
WF No. IC5300-10,14 (PLAY)
76Vp-p(1usec/div)
WF No. IC5300-2,22 (PLAY)
0.6Vp-p(200usec/div)
87
SA-PT650P / SA-PT650PC
