Panasonic SA-PT660 - Page 12

Slide # 12
Models:
SA-PT660
SA-PT760
SA-PT960
SA-PT1060
SH-FX67, 85
Outline
Wireless
Mech
Pwr Supply
Protection
Audio

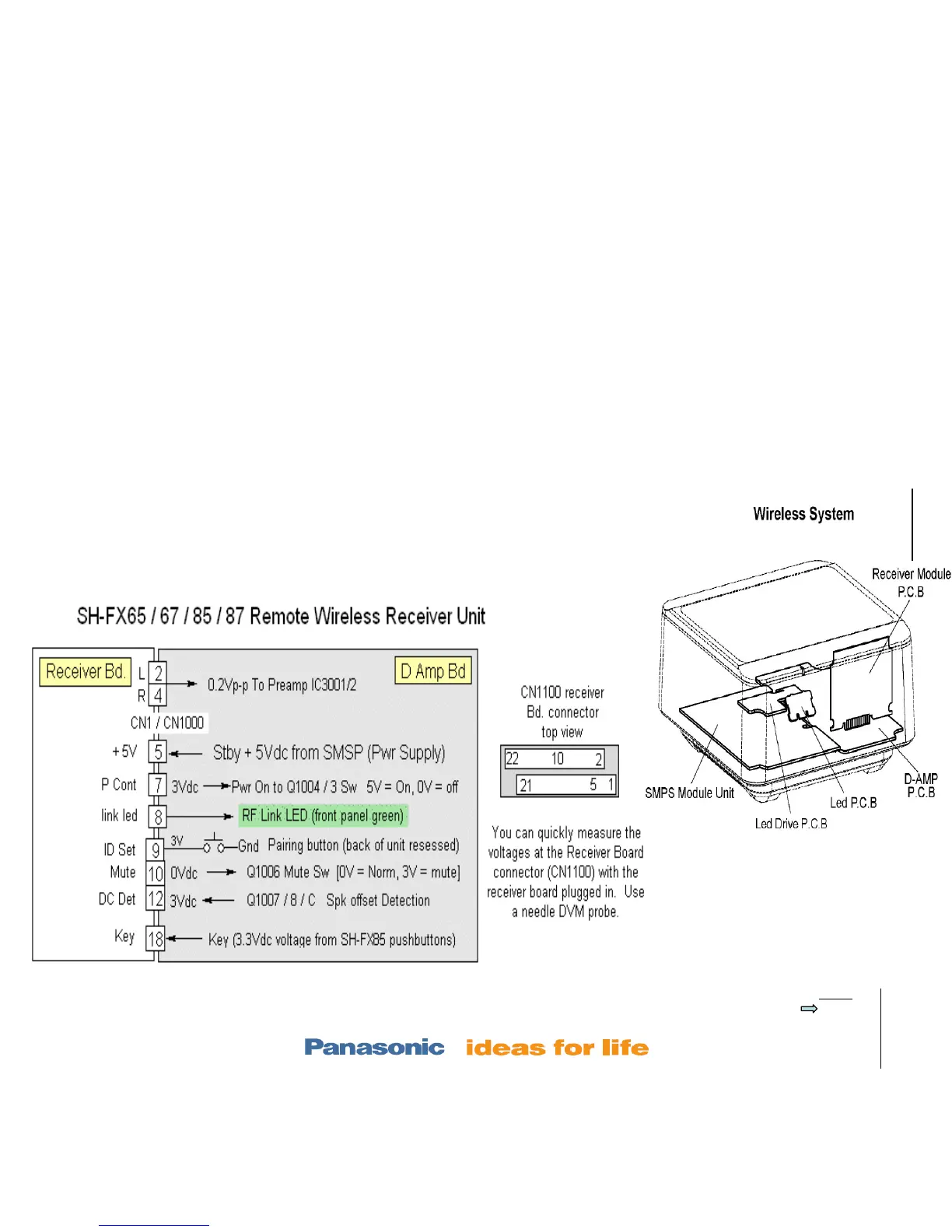

Wireless - Troubleshooting Information 2/2 – Receiver part
Use this diagram to:
 Receiver card is getting power (CN1100/pin 5).
 Receiver card is outputting Audio (CN1100/ pin 2).
 Receiver card is not muting the audio (CN1100/ pin 10).
Transmitter card – REPX 0644b
Receiver card - REPX 0645b
SH-FX67
receiver / amp
