Panasonic SA-PT660 - 5 Disc Mechanism: Laser Replacement (Part 4 - Installation); Reinstalling the Laser Assembly

Slide # 28
Models:
SA-PT660
SA-PT760
SA-PT960
SA-PT1060
SH-FX67, 85
Outline
Wireless
Mech
Pwr Supply
Protection
Audio
5 Disc Mechanism Laser Replacement 4/5 – Installation
Reinstalling the Laser
assembly:

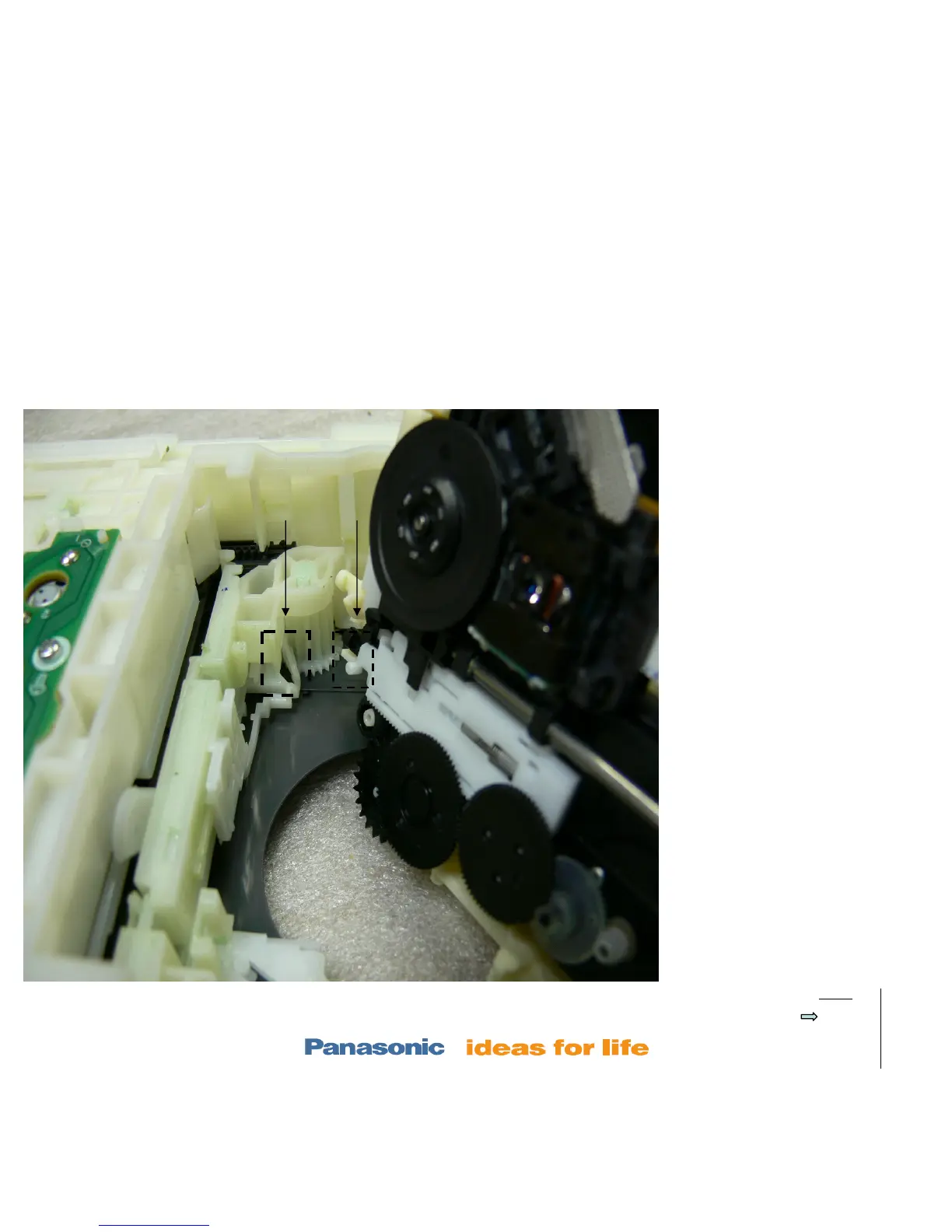

4. Before dropping the laser
assembly into the TRV
assembly observe the two
areas (A & B) outlined.
5. During the insertion, mate
the pin of the laser slider
(A) to the mechanism’s
corresponding groove (B).
Go to the next page.
B A
Fig
17
