Slide # 29
Models:
SA-PT660
SA-PT760
SA-PT960
SA-PT1060
SH-FX67, 85
Outline
Wireless
Mech
Pwr Supply
Protection
Audio
5 Disc Mechanism Laser Replacement 5/5 – Installation

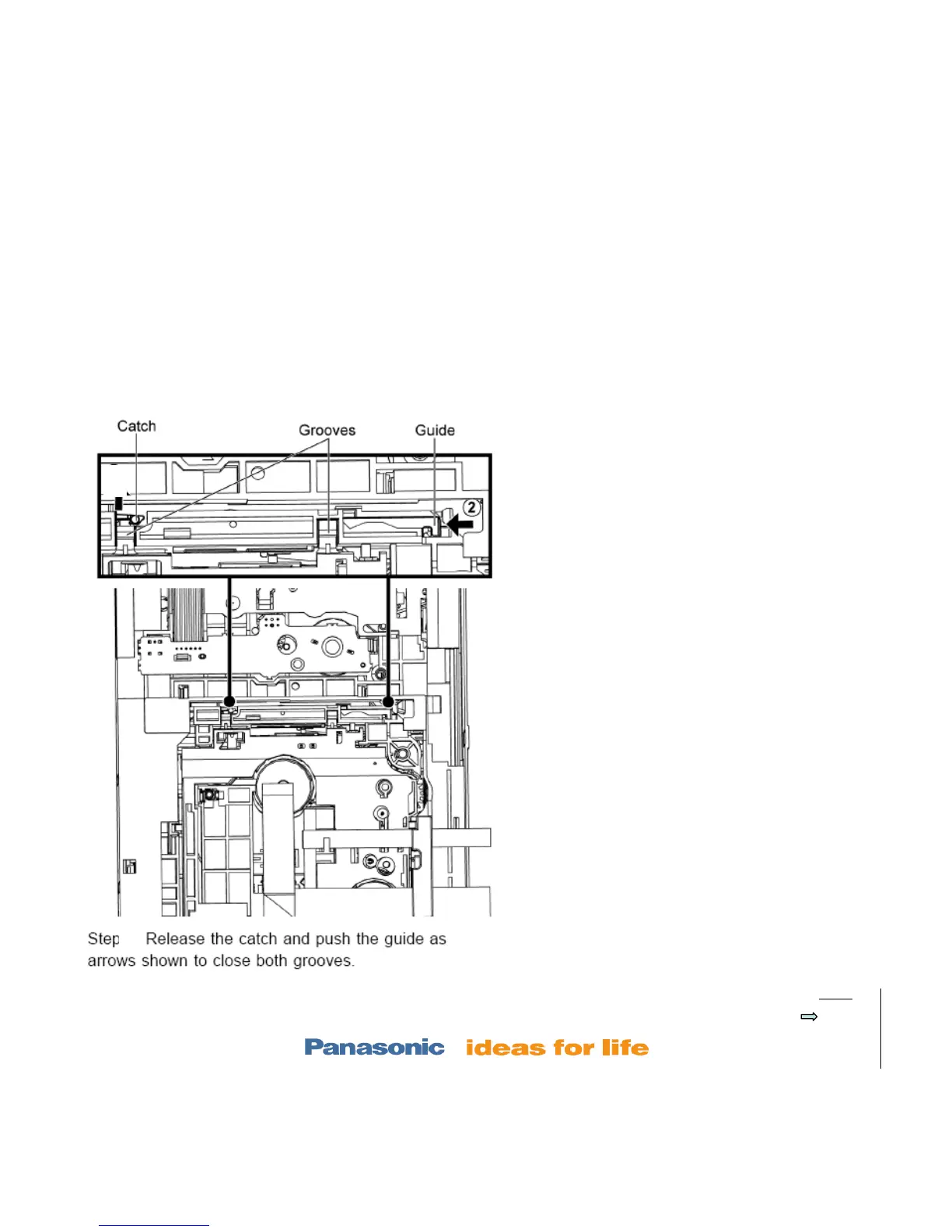

Reinstalling the Laser assembly:
6. Drop the laser assembly in.
7. Slide the lever to the left as
shown in arrow 2.
8. Make sure the catch is back
down.
9. Finished. Turn the mechanism
over and connect the mech’s 3
ribbon cables to the remainder
of the unit.
4
Fig 18
