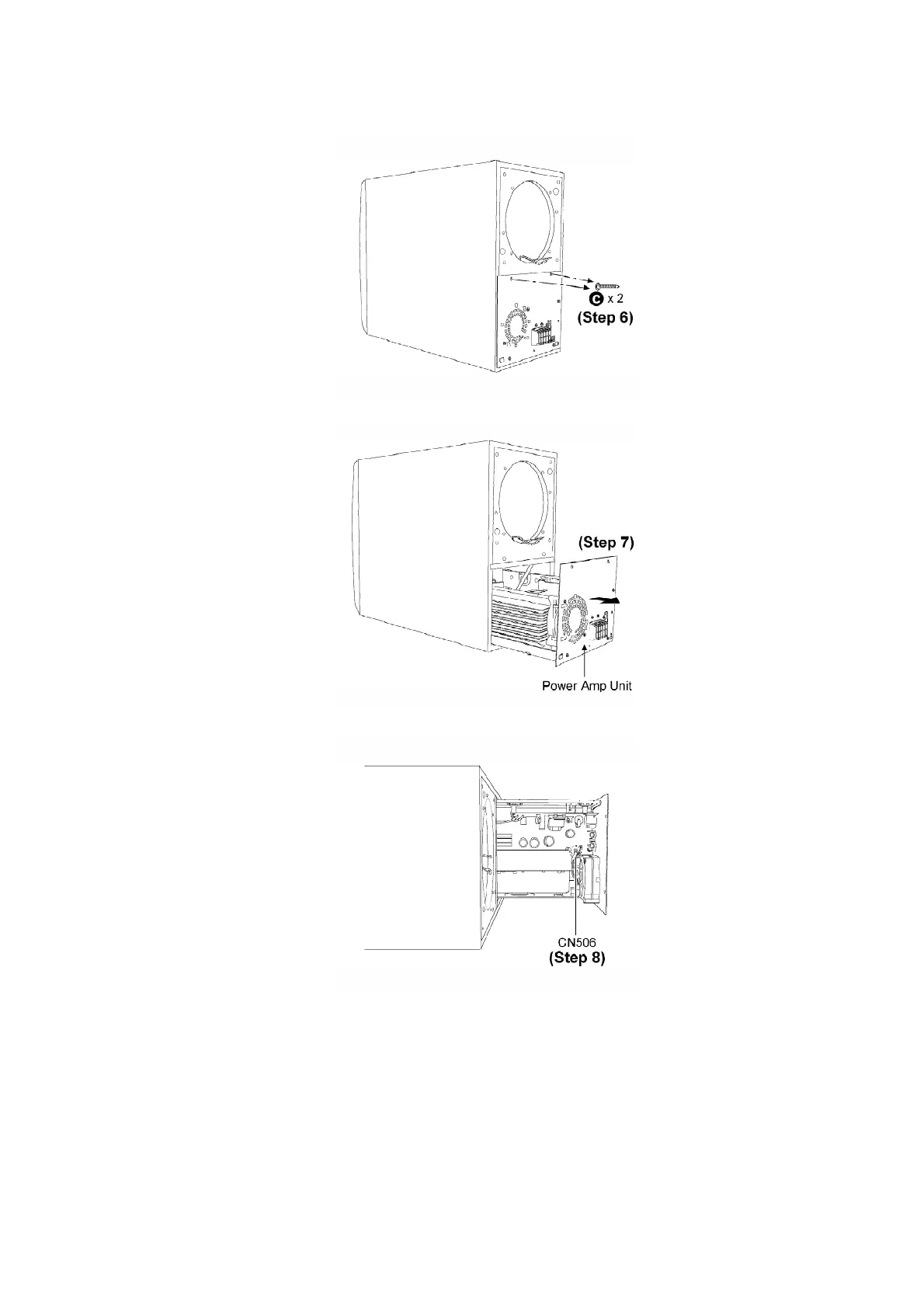

Step 6: Remove 2 screws from the Power Amp unit.
Step 7: Pull out the Power Amp unit slightly as shown.
Step 8: Release the connector CN506 then pull out the entire Power Amp unit.
9
