Refer to the numbers in parentheses for page reference.•
Remote control
Main unit
Top View

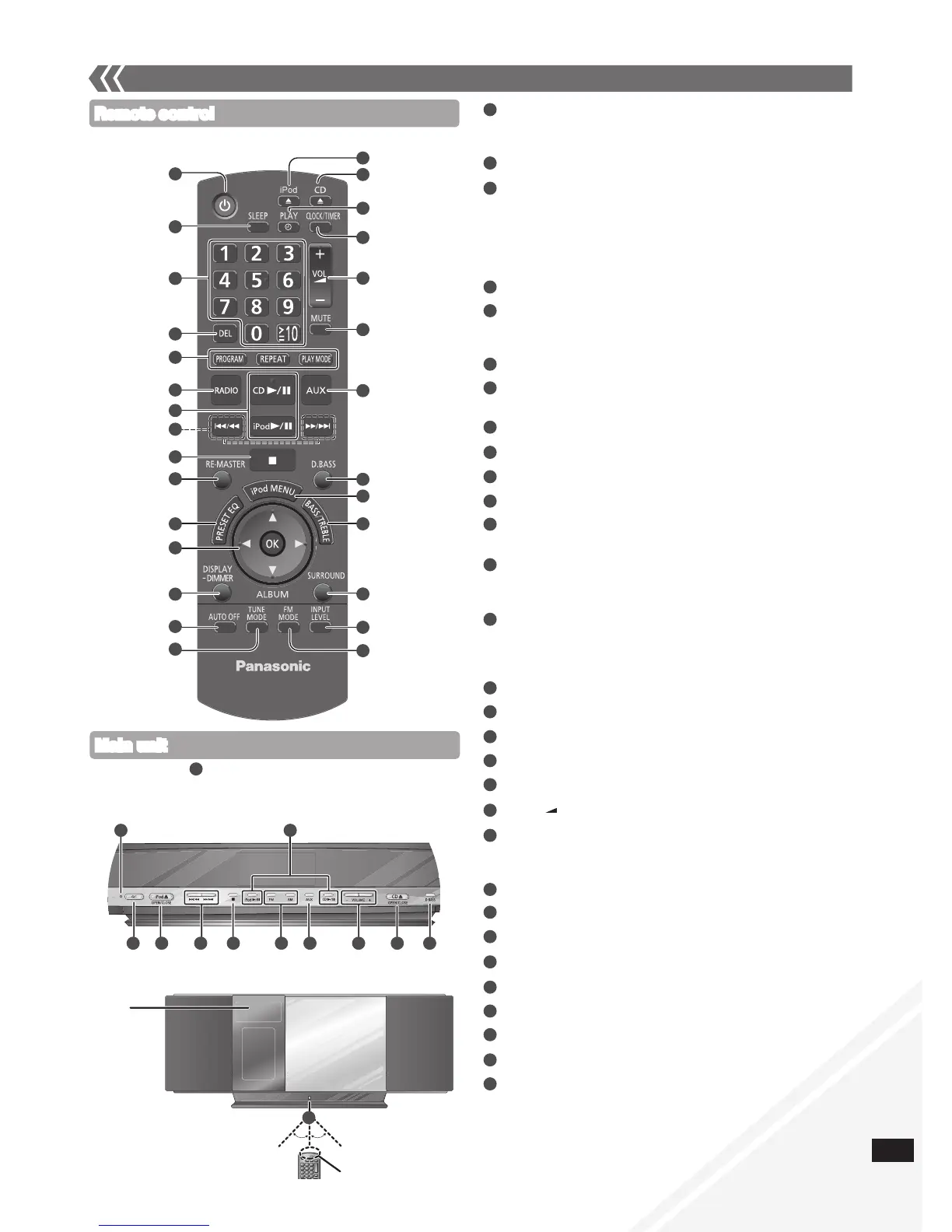

Control guide
8
9
10
11
12
6
7
Standby/on switch [^], [8] (8, 11, 14)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
[SLEEP] (11)
Numeric buttons [1-9, 0, ≧ 10]
(8, 9, 10, 13)
To select a 2-digit number
e.g. 16: [ ≧ 10]  [1]  [6]
To select a 3-digit number
e.g. 226: [
≧ 10]  [ ≧ 10]  [2]  [2]  [6]
[DEL] (9)
[PROGRAM] (9, 10)
[REPEAT] (9)
[PLAY MODE] (9, 10)
[RADIO], [FM], [AM] (10)
[CD q/h] (8, 9)
[iPod q/h] (12)
[u/t], [y/i] (8, 9, 10, 12)
[g] (8, 9, 12)
[RE-MASTER] (11)
[PRESET EQ] (11)
[e,r], [w, q] (8, 9, 11, 12)
[OK] (9, 11, 12, 13)
[DISPLAY, –DIMMER] (9)
Press and hold to dim the display panel. Press and hold again to
cancel.
[AUTO OFF]
This function allows you to turn the unit off (except in radio mode)
after the unit is left unused for about 30 minutes. Press twice to turn
it on.
[TUNE MODE] (10)
[;, iPod], [iPod ;, OPEN/CLOSE] (12)
[;, CD], [CD ;, OPEN/CLOSE] (8)
[z, PLAY] (11)
[CLOCK/TIMER] (11)
[+, VOL , –], [– VOLUME +]
[MUTE]
Mutes the sound. Press again to cancel. “MUTE” is also cancelled
when the volume is adjusted or the unit is turned off.
[AUX] (13)
[D.BASS] (11)
[iPod MENU] (12)
[BASS/TREBLE] (11)
[SURROUND] (11)
[INPUT LEVEL] (13)
[FM MODE] (10)
Standby indicator
Remote control signal sensor
Aim the remote control at the sensor, avoiding obstacles, at a
maximum range of 7 m directly in front of the unit.
13
16
15
17
18
19
21
23
25
26
27
28
29
30
20
22
24
14
2
1
3
4
5
1 16 8 9 20 17 23
7
22
29
6
Front View
Display
Approx. 30°
Transmission window
30
Approx. 30°
AUD I O SYSTEM
1
2
3
4
5
6
8
9
10
11
12
13
15
14
7
16
17
18
19
20
23
24
25
26
27
22
21
28
Buttons such as function the same as the remote control. They
can be used interchangeably.
•
1
7
Pen or a blunt object
