7
RQTX1267

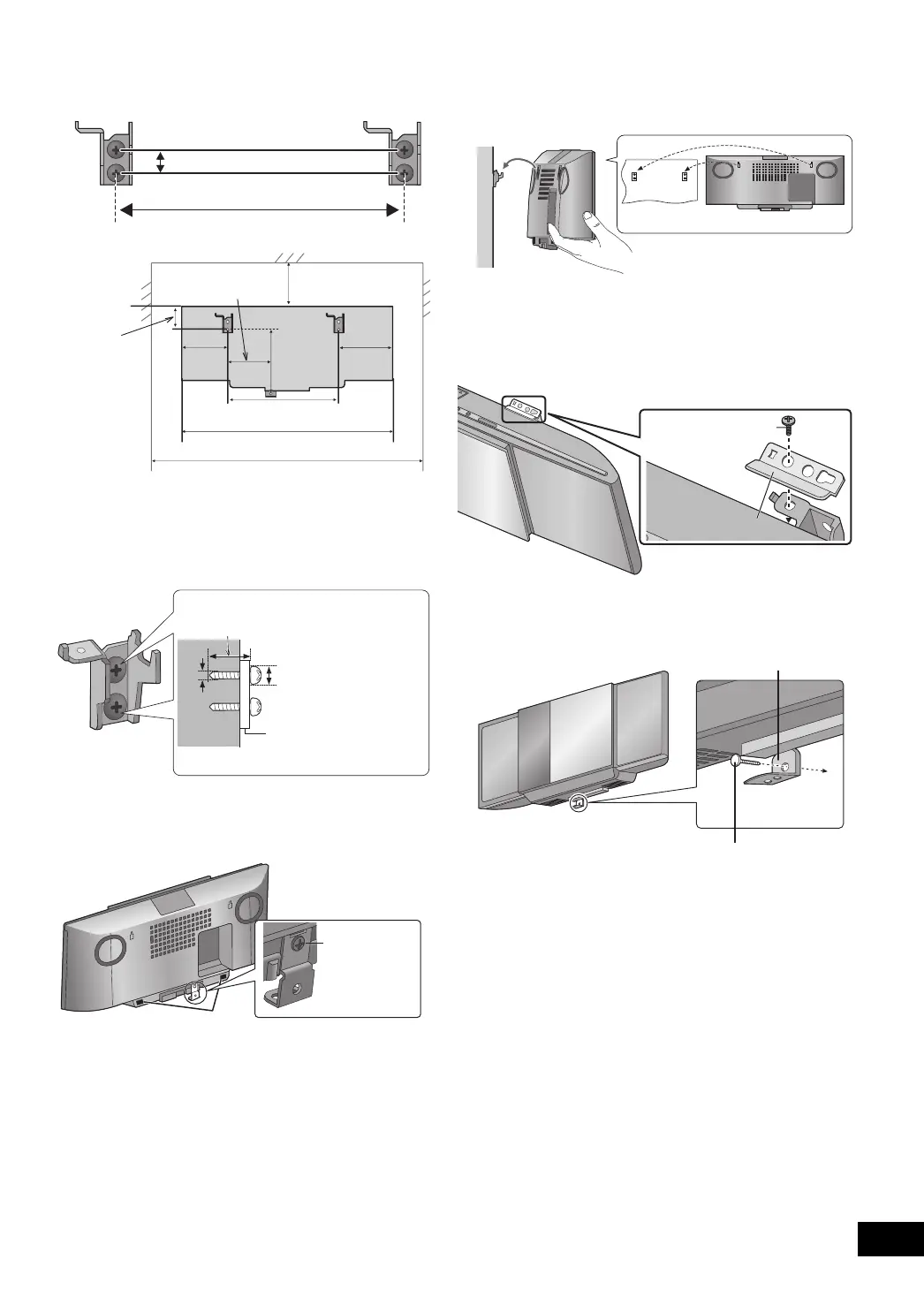

2 Measure and mark the position of the wall
mount brackets (Both sides).
≥ Use figures below to identify the screwing positions.
The position to attach the wall mount brackets
Space required
3 Attach the wall mount bracket to the wall with 2
screws F. (Both sides)
≥ Use a spirit level to ensure both wall mount brackets are level.
≥ Use a screw which is strong enough to support the weight of at least
33 kg.
4 Fix the safety holder D onto the unit with the
safety holder screw B.
≥ Before attaching, stick the rear pads (supplied) to A.
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
5 Hang the unit on the wall.
Hook the unit securely onto the wall mount brackets.
≥ Connect the DAB antenna (
[HC55]
) or FM/AM antenna (
[HC35]
) and the AC
mains lead to the unit before hanging the unit onto the wall. (> 4)
≥ After hanging the unit, release your hand carefully to confirm the unit sits
securely on the wall.
6 Fix the safety holders E onto the wall mount
brackets with the safety holder screws C.
(Both sides)
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
7 Drive the safety holder fixing screw G to
secure the safety holder D onto the wall.
≥ Refer to step 3 for requirements before screwing.
300 mm
480 mm
48.5 mm
229 mm
680 mm
133 mm118 mm
89 mm
139 mm
At least 30 mm
7.5 mm to 9.4 mm
4 mm
Wall mount bracket
Safety holder E
Safety holder
screw C
Safety holder fixing screw G
Safety holder D
Fixed to the wall
SC-HC55DB&35GN-RQTX1267-B.book 7 ページ ２０１１年２月１８日 金曜日 午後５時５８分
