Turn on the active subwoofer.
Turn on the TV, and select this home theater system as the TV’s speakers from the
VIERA Link menu.
Press [i VOL j] on the TV’s remote control to adjust the volume.
§ Operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
≥ For details about VIERA Link (HDMI), refer to page 24 of the operating instructions.
Turn on the active subwoofer and the TV.
Press [TV] to select the TV sound.
Press [i VOL j] to adjust the volume.

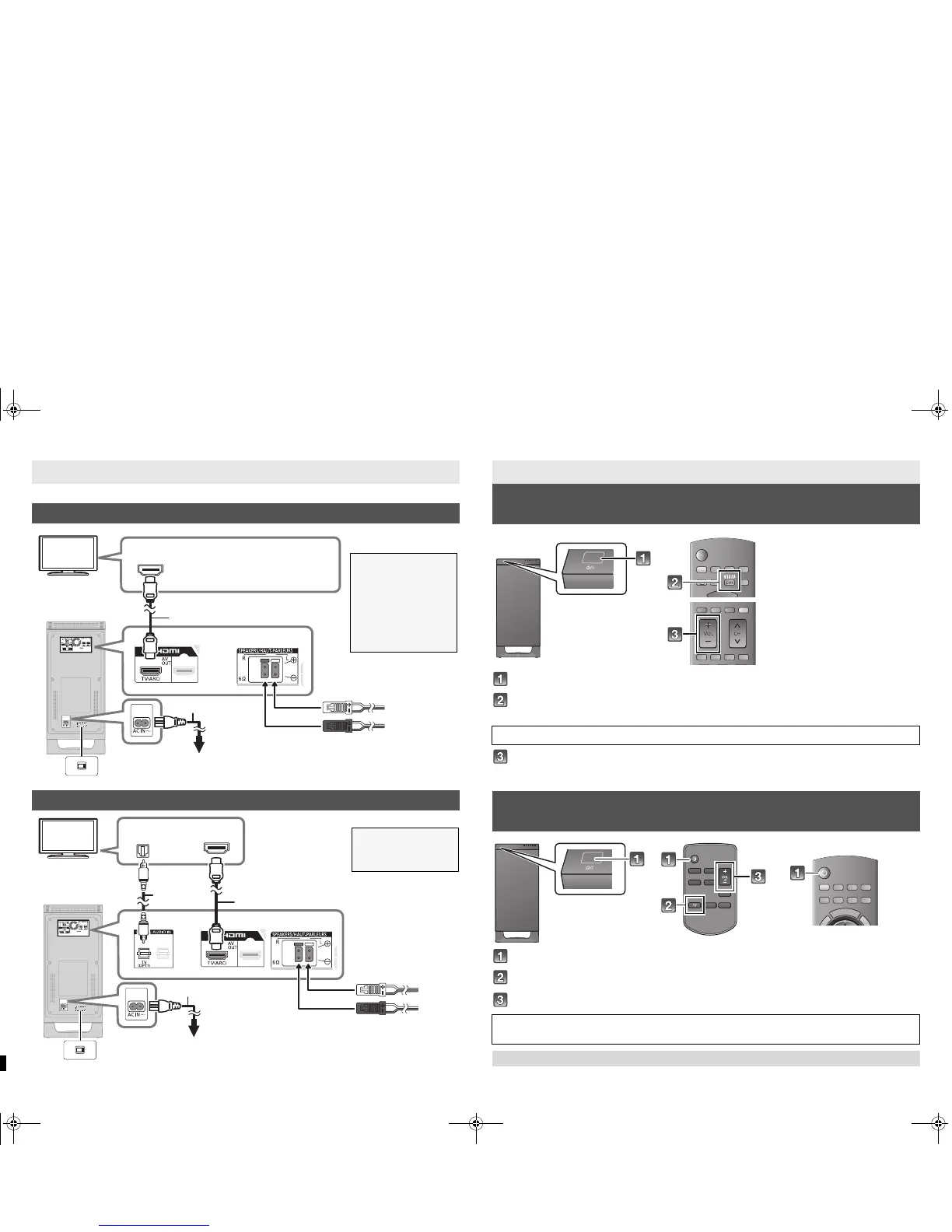

Step 2: Connect the cables
Do not connect the AC mains lead to the active subwoofer until all other connections are complete.
When the TV is HDMI (ARC) compatible
When the TV is non HDMI (ARC) compatible
HDMI IN
(ARC)
VOLT ADJ
110-127V• •220-240V
TV
Active
subwoofer
HDMI cable
Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the
TV’s operating instructions.)
Red
White
To a household mains socket
AC mains lead
HDMI (ARC)
Audio Return Channel:
Allows a home theater
system to receive and
play audio from the TV
through a HDMI cable
without additional wiring.
(For South East Asia and the Middle East)
Before connecting the AC mains lead, set the voltage.
HDMI IN
OPTICAL
OUT
VOLT ADJ
110-127V• •220-240V
TV
Active
subwoofer
HDMI cable
Optical
digital
audio cable
Red
White
To a household mains socket
AC mains lead
HDMI cable is required
for VIERA Link “HDAVI
Control”
(For South East Asia and the Middle East)
Before connecting the AC mains lead, set the voltage.
Using this unit
When the TV is VIERA Link “HDAVI Control
TM
” or
HDMI CEC compatible
≥ If the TV is not a Panasonic TV, set the “Receiver” or “External speakers” to “On”.
When the TV is not VIERA Link “HDAVI Control
TM
” or
HDMI CEC compatible
≥ If there is sound from the TV’s speakers too, then use the TV’s remote control to lower the volume to
minimum.
For wall mounting and other details, be sure to refer to the operating instructions.
