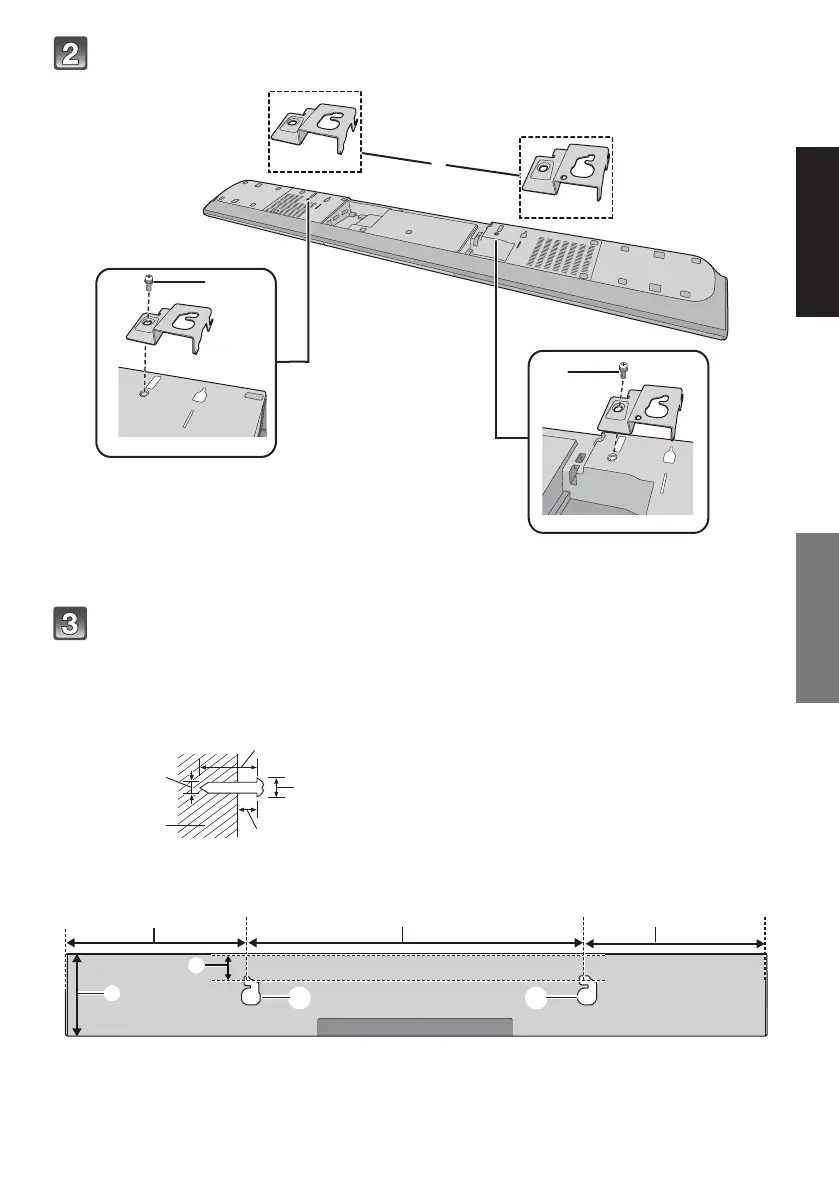

Attach the wall mount brackets to the main unit.
A Wall mount bracket (supplied)
B Screw (supplied)
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Position the main unit with at least 50 mm of free space to its right. If not, it may not be possible to access the touch keys.
≥ Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar
G 1.6 mm to 2.5 mm
H 400 mm I 275 mm J 275 mm
K 27 mm L 110 mm M Wall mounting hole
