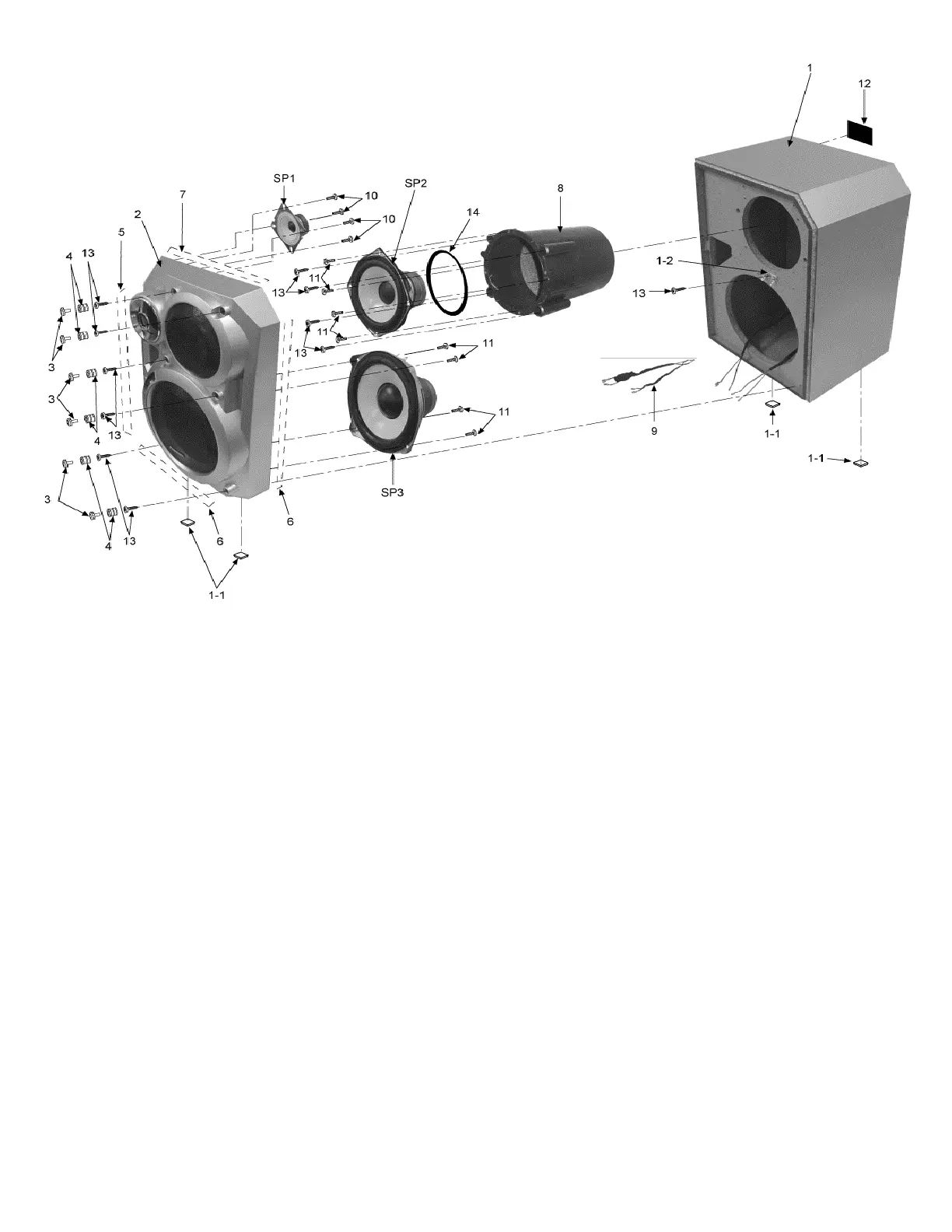

Panasonic SC-TM82AV - SB-TM82 Cabinet Parts; Parts Location and Identification

SB-TM82
Ref. No.
1
1
1-1
1-2
2
2
3
4
5
6
7
8
8
9
10
11
13
14
SP1
SP2
SP3
Part No.
RKPM0084
RKPM0085
RKA0072-KJ
RJH9210
RYPM0166
RYPM0167
RGKX0115-SJ
RMG0520-H
RMQX0076
RMQX0077
RMQX0078
RMRX0038-LM
RMRX0037-LM
REEX0304-1
XTB4+8G-A
XTB4+10G-A
XTB4+16AFZ-A
RMQ0922
EAS6PH121A
EAST16PL44E6
EAST12P39E6
Part Name & Description
SPK CABINET ASS’Y L
SPK CABINET ASS’Y R
LEG
TERMINAL PLATE
FRONT PANEL ASS’Y L
FRONT PANEL ASS’Y R
ORNAMENT CAP
CATCHING HOLDER
HIMELON (355 x 8 x 0.5)
HIMELON (320 x 8 x 0.5)
HIMELON (240 x 8 x 0.5)
BACK CAVITY L
BACK CAVITY R
CORD ASS’Y
SCREW (TWEETER)
SCREW (S. WOOFER)
SCREW
EVA PACKING
TWEETER
WOOFER
S. WOOFER
