7
TQBJ2187

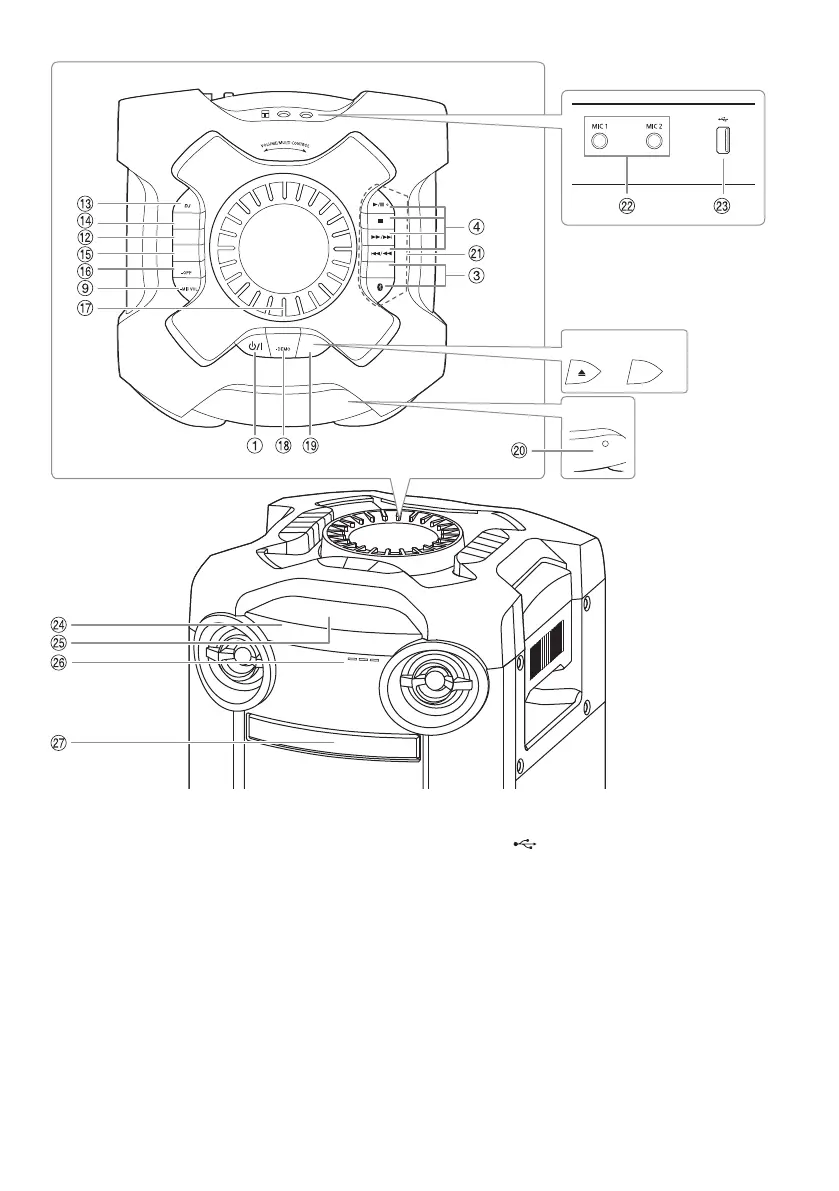

Q Volume or multi control knob
Do not turn knob fast to prevent irregular of volume
operation.
R Select DJ jukebox
Select DEMO play
Press and hold [–DEMO] for more than 2 seconds, the
built-in demonstration song will be played.
Press [8] to stop the demonstration.
S [TMAX10]
Open or close the disc tray
[TMAX20]
Select POWER SAVE mode
T [TMAX20]
POWER SAVE mode LED indicator
U DJ function direct buttons
Press [DJ] to switch on the DJ function.
Press [DJ1] to [DJ6] to select the desired function.
To cancel, press the selected [DJ1] to [DJ6] again.
V Microphone jack
W USB port ( )
Play MP3 tracks.
X Remote control sensor
Point the remote control at the remote control
sensor, away from obstacles and within the
operation range.
Distance: Within approximately 7 m
Angle: Approximately 20° up and down, 30° left
and right
Y Display panel
Z [TMAX20]
Battery LED indicators
a [TMAX10]
Disc tray
BATT LEVEL
SELECT
VOL
DJ6
DJ5
DJ4
DJ3
DJ2
DJ1
SOUND
JUKEBOX
KARAOKE
ALBUM/
TRACK
ILLUMINATION
[TMAX10] [TMAX20]
POWER
SAVE
[TMAX20]
SC-TMAX10.20GS.GW_TQBJ2187 En.fm Page 7 Tuesday, July 2, 2019 3:55 PM
