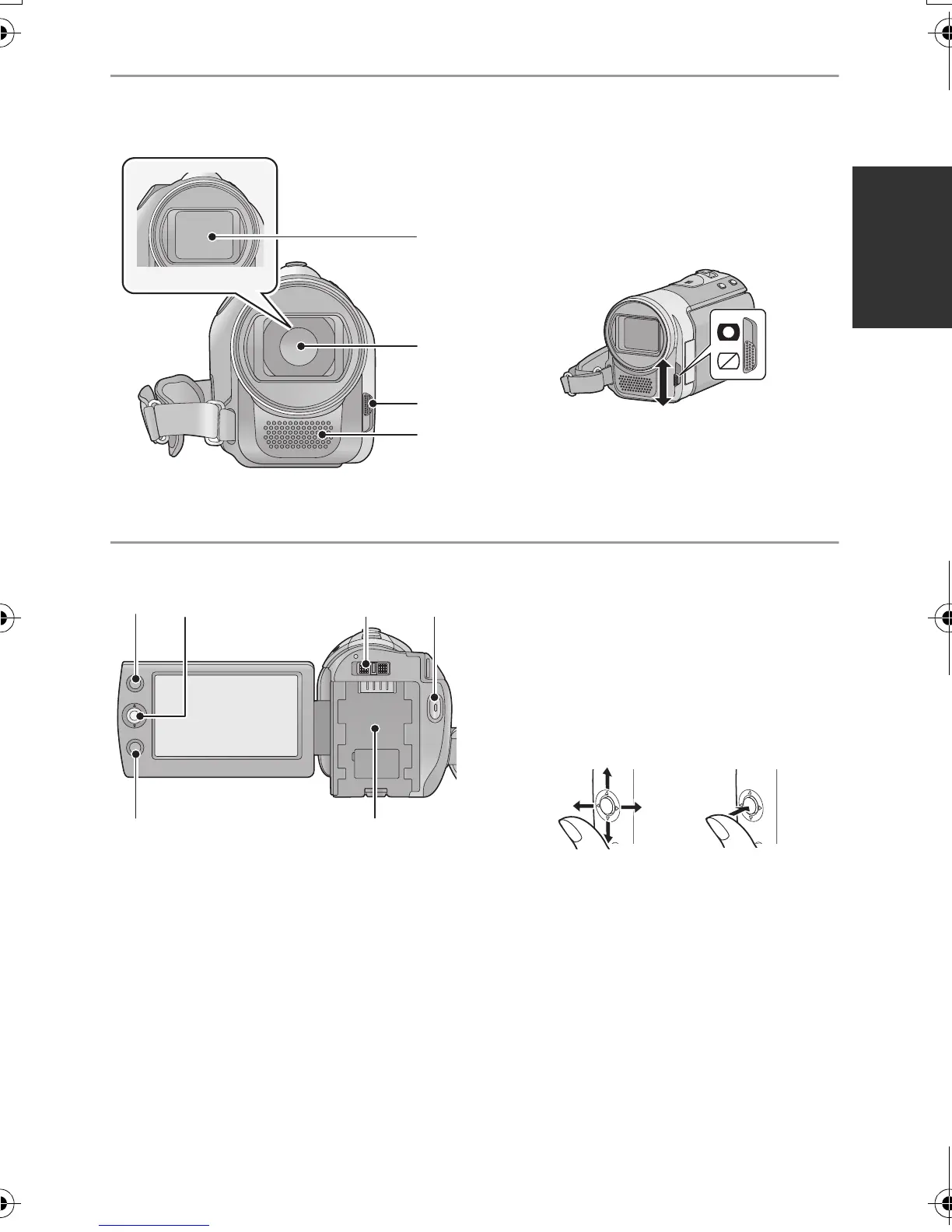

11 Lens cover
12 Lens
13 Open/close switch for the lens cover
For the lens protection, be sure to close the
lens cover when not in use.
Slide open/close switch for the lens
cover.
14 Microphone (built-in, stereo)
15 AF/AE button [AF/AE]
16 Joystick
Use the joystick to select the recording
functions and playback operations, and to
operate the menu screen.
Move the joystick up, down, left, or right
to select a setting or scene and then
press the joystick to set it.
1 Select by moving up, down, left or right.
2 Set by pressing the centre.
≥ Menu screen operations (l 19)
≥ To select the recording functions
≥ To adjust manually
≥ Playback operations (l 26, 27)
17 Mode switch (l 18)
18 Recording start/stop button (l 22)
19 Menu button [MENU] (l 19)
20 Battery holder (l 11)
12
13
14
11
15 16 17 18
