Panasonic SE-FX70 - Connections and Transmitter Setup

7
Setup
7
RQTX0170

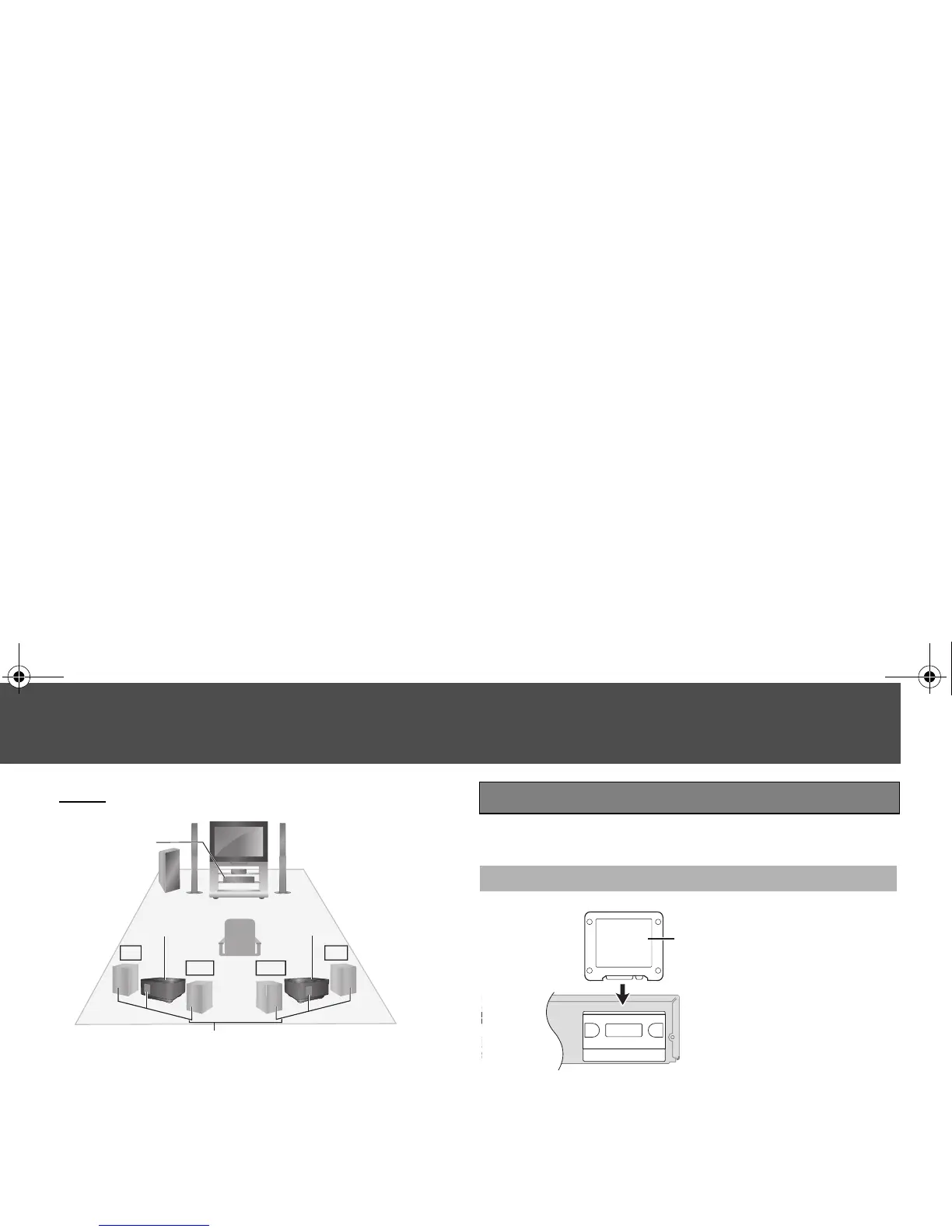

e.g. 7.1ch (Using two units of the wireless system)
This placement offers 7.1-channel playback. Your home theater unit must
be capable of 7.1-channel playback.
LS: Surround (left), RS: Surround (right)
≥ Place on the side of the seating position.
LB
§
: Surround back (left), RB
§
: Surround back (right)
≥ Place behind the seating position, about 1 m (3 ft) higher than ear level.
§LB or SBL RB or SBR
∫ Digital transmitter
Refer also to the operating instructions for your home theater unit.
(Continued on next page)
LS
LB RB
RS

Surround speaker cables (included)
Surround speakers and surround back speakers are not included.
Wireless system
Home theater unit
(with the digital
transmitter)
Seating position
Wireless system
Connections
Do not insert or remove while the home theater unit is on.
T
EXT
LOOP
FM ANT
(75 )
LOOP
ANT GND
TRANSMITTER
DIGITAL
SH-TR70 digital transmitter
Insert fully until you hear a click.
e.g.
Rear of the home theater unit
