Panasonic SE-FX70 - Speaker Connections

8
Setup
8
RQTX0170
Setup
∫ Wireless system
Preparation
If the surround speaker cables (with a blue connector and a grey connector) have already been connected, disconnect the surround speaker cables from
your home theater unit.
Connections
∫ AC power supply cord
SPEAKERS
ENCEINTES
LS / RB LB / RS
SURR
I/D SET
AC IN
SURROUND (3 – 6 )
AMBIOPHONIQUES
L
SIDE
R
SIDE
SURR
L
SIDE
R
SIDE
SURR
L
SIDE
R
SIDE
Surround
selector

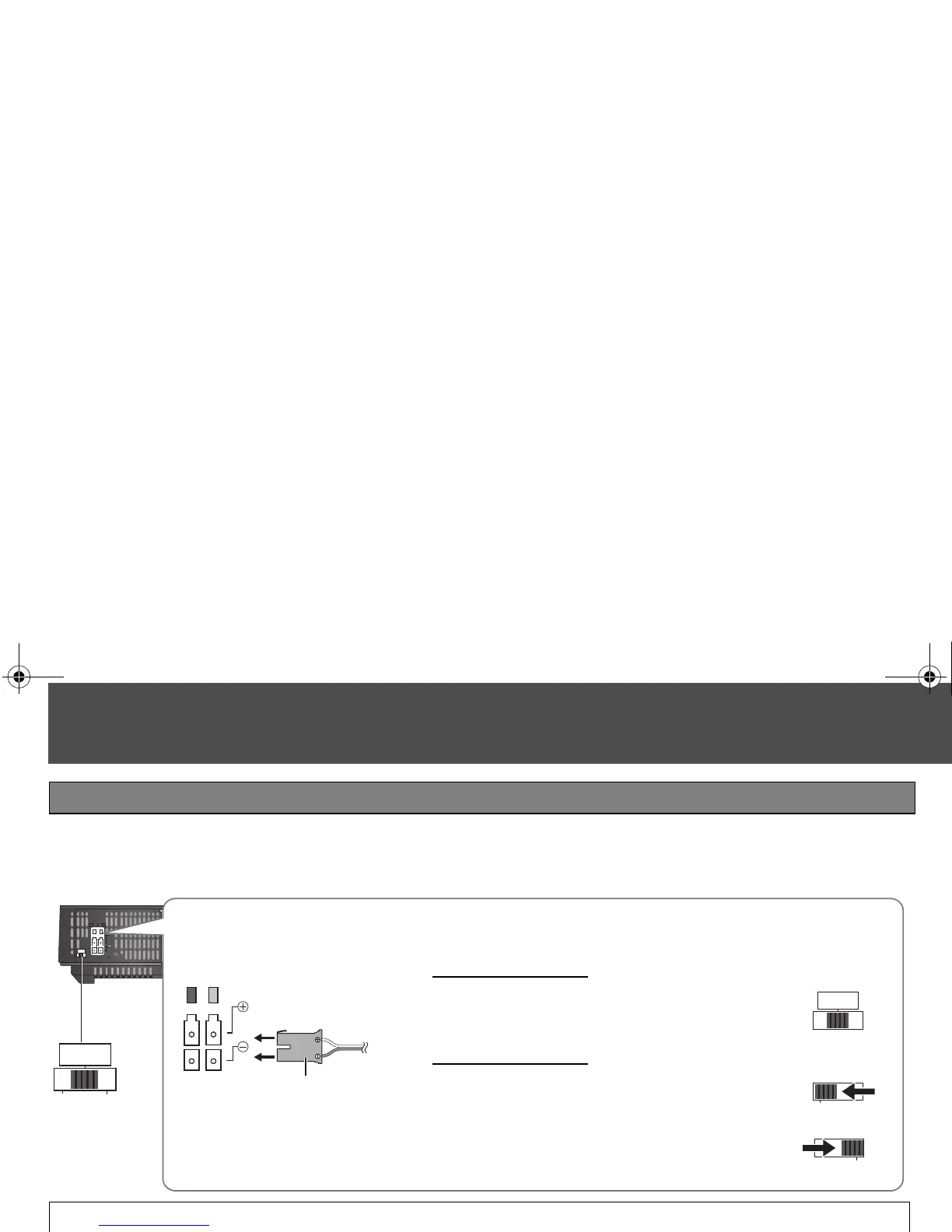

Connecting the speakers to the wireless system
Connect to terminals of the same color.
Insert fully.
Speaker cable
For 5.1ch connection
SURROUND (LS): Blue
SURROUND (RS): Grey
For 7.1ch connection
SURROUND (LS): Blue
SURROUND BACK (LB): Grey
SURROUND (RS): Grey
SURROUND BACK (RB): Blue
Selector setting for the
left and right speakers
Selector setting for the
left speakers
Selector setting for the
right speakers
Impedance: 3 ≠ to 6 ≠
Speaker input power: 100 W (Min)
To household AC outlet
(AC 120 V, 60 Hz)
AC power supply cord (included)
