RQT7022
12
A

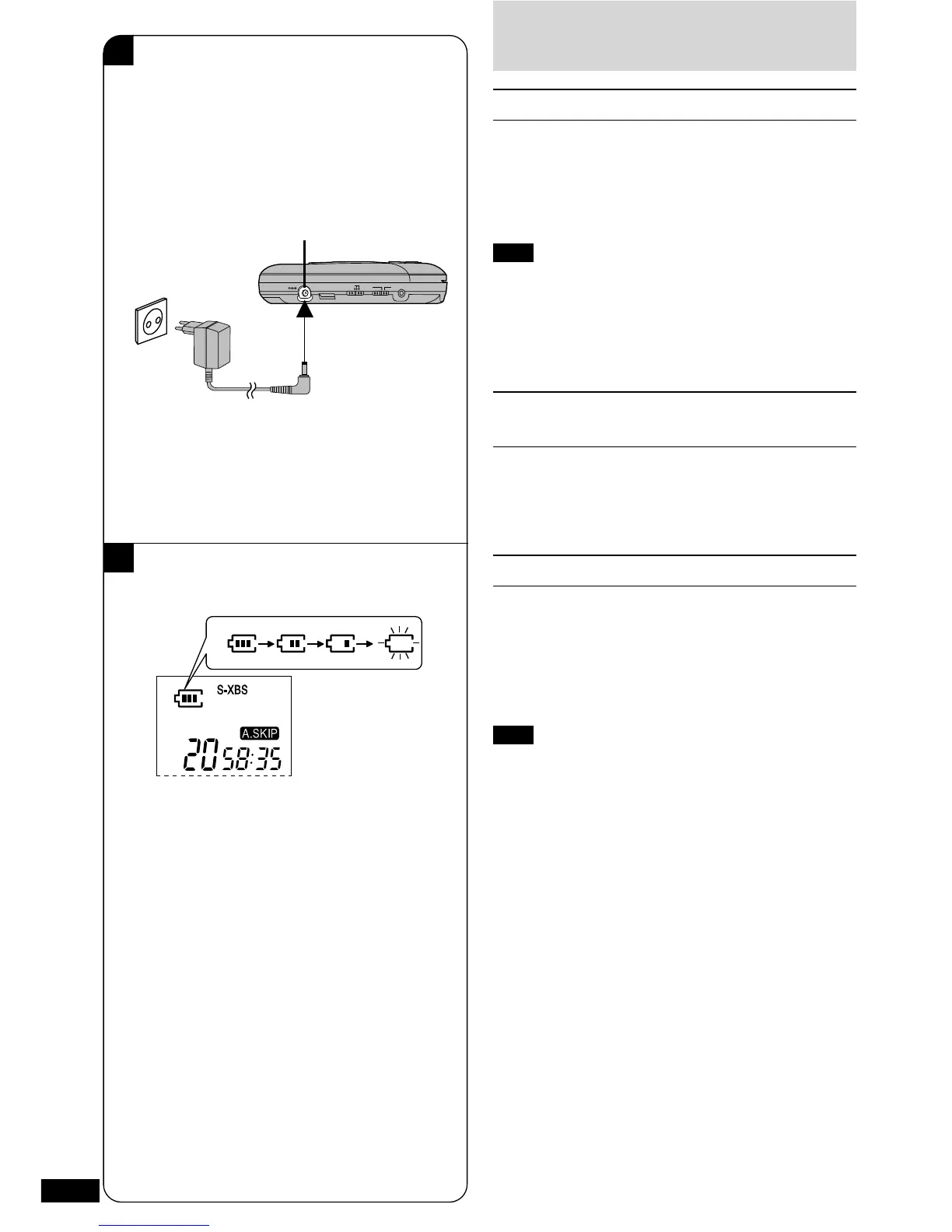

Power Supply Preparations
B
Using the AC adaptor A
Connect the AC adaptor supplied.
a DC IN jack (DC IN 4.5V —<±)
b Rear panel of the unit
c AC power outlet
d AC adaptor
Note
•
The configuration of the AC adaptor differs according to
the area.
•
The unit is in the standby condition when the AC adaptor
is connected. The primary circuit is always “live” as long
as the AC adaptor is connected to an electrical outlet.
Using dry-cell batteries
(not included)
After disconnecting the AC adaptor, insert two LR6, AA,
UM-3 alkaline batteries.
The procedure for inserting and removing dry-cell
batteries is identical to that for rechargeable batteries.
Battery indicator B
e Battery indicator
This indicator starts flashing when the batteries are almost
out of power. Power is cut off completely a short while
later.
Rechargeable batteries: Recharge batteries.
Dry-cell batteries: Replace batteries with new ones.
Note
•
The length of time the unit will continue to operate
between when the battery indicator starts flashing and
when the power is cut off differs depending on the type
of batteries used.
•
The battery indicator may not be displayed if
rechargeable batteries other than those designated by
Panasonic are used.
DC IN 4.5V
RESUME
NOR
PBC OFF
N
T
S
C
P
A
L
AV OUT
a
c
d
b
e
To Next Page
