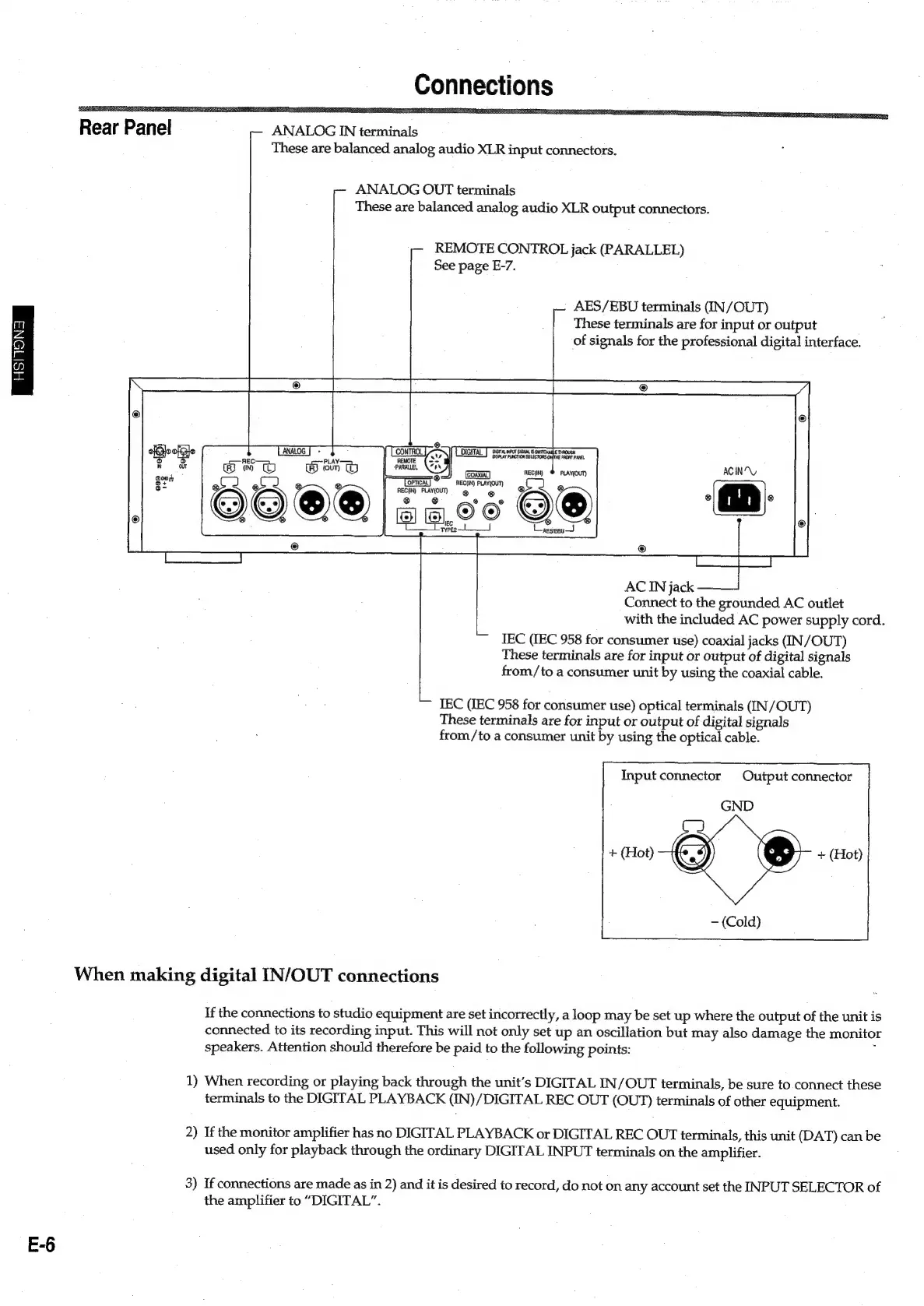

Connections
ANALOG IN terminals
These are balanced analog audio XLR input connectors.
Rear Panel
ANALOG OUT terminals
These are balanced analog audio XLR output connectors.
REMOTE CONTROL jack (PARALLEL)
See page E-7.
AES/EBU terminals (IN/OUT)
These terminals are for input or output
of signals for the professional digital interface.
HSIMONA
CFS Ged
AC IN jack
Connect to the grounded AC outlet
with the included AC power supply cord.
IEC (IEC 958 for consumer use) coaxial jacks (IN/OUT)
These terminals are for input or output of digital signals
from/to a consumer unit by using the coaxial cable.
IEC (IEC 958 for consumer use) optical terminals (IN/OUT)
These
terminals
are
for
input
or
output
of
digital
signals
from/to a consumer unit by using the optical cable.
Input connector Output connector
GND
+ (Hot)
~ (Cold)
When making digital IN/OUT connections
If
the
connections
to
studio
equipment
are
set
incorrectly,
a
loop
may
be
set
up
where
the
output
of
the
unit
is
connected
to
its
recording
input.
This
will
not
only
set
up
an
oscillation
but
may
also
damage
the
monitor
speakers.
Attention
should
therefore
be
paid
to
the
following
points:
,
1)
When
recording
or
playing
back
through
the
unit’s
DIGITAL
IN/OUT
terminals,
be
sure
to
connect
these
terminals
to
the
DIGITAL
PLAYBACK
(IN)/DIGITAL
REC
OUT
(OUT)
terminals
of
other
equipment.
2)
If
the
monitor
amplifier
has
no
DIGITAL
PLAYBACK
or
DIGITAL
REC
OUT
terminals,
this
unit
(DAT)
can
be
used
only
for
playback
through
the
ordinary
DIGITAL
INPUT
terminals
on
the
amplifier.
3)
If
connections
are
made
as
in
2)
and
it
is
desired
to
record,
do
not
on
any
account
set
the
INPUT
SELECTOR
of
the
amplifier
to
“DIGITAL”.
