Panasonic TC-32LX85N

14

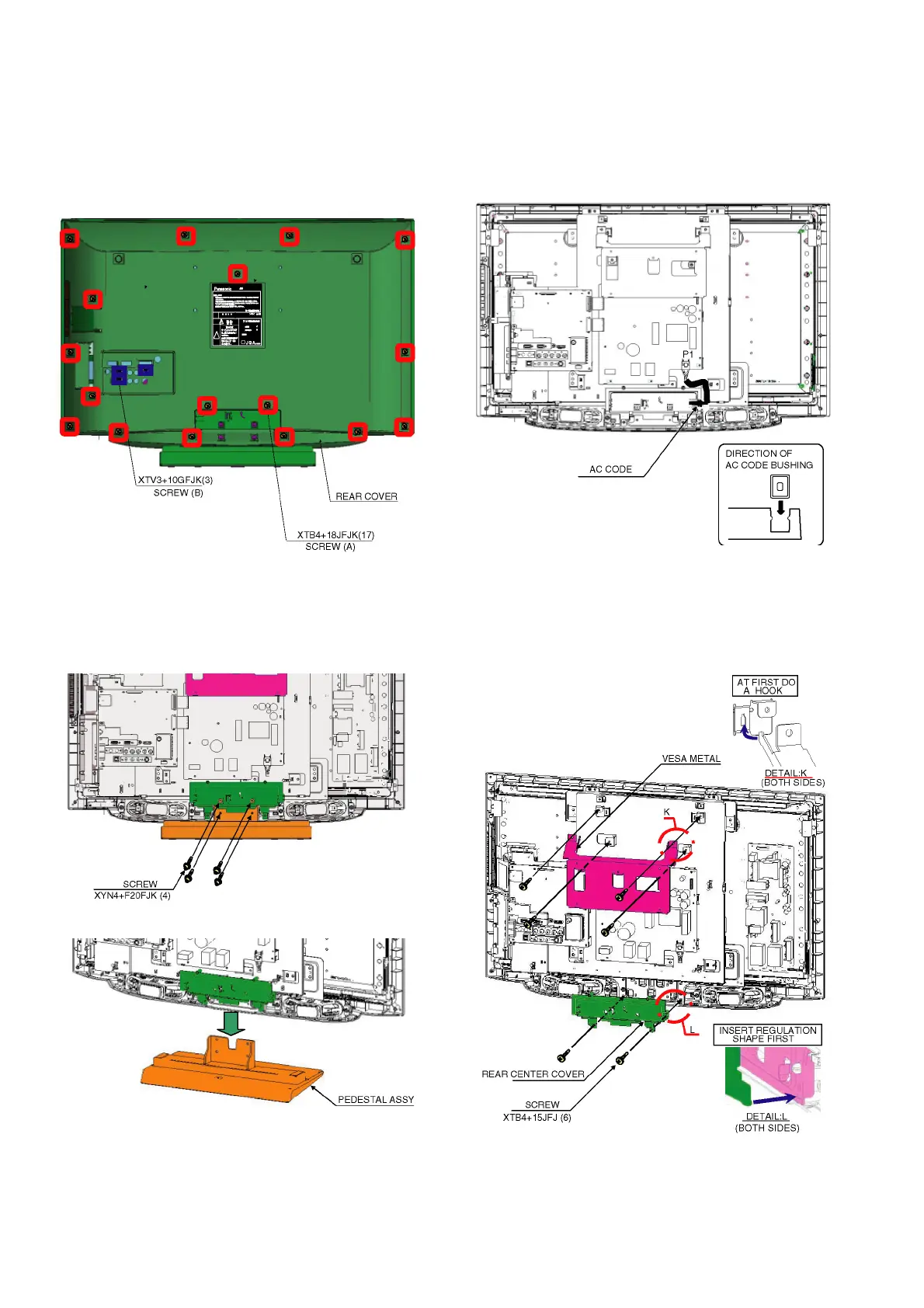

7 Disassembly and Assembly Instructions
7.1. Rear cover
1. Remove the 17 screws (A).
2. Remove the 3 screws (B),
3. Remove the rear cover.
7.2. Pedestal assy
1. Lay down the unit so that the rear cover faces upward.
2. Remove the 4 screws.
3. Remove the pedestal assy.
7.3. AC cord
1. Remove the bushing of the AC cord from the tuner cover.
2. Disconnect the connector (P1) of AC cord.
7.4. VESA metal and Rear center
cover
1. Remove the 6 screws.
2. Remove the VESA metal and Rear center cover.
