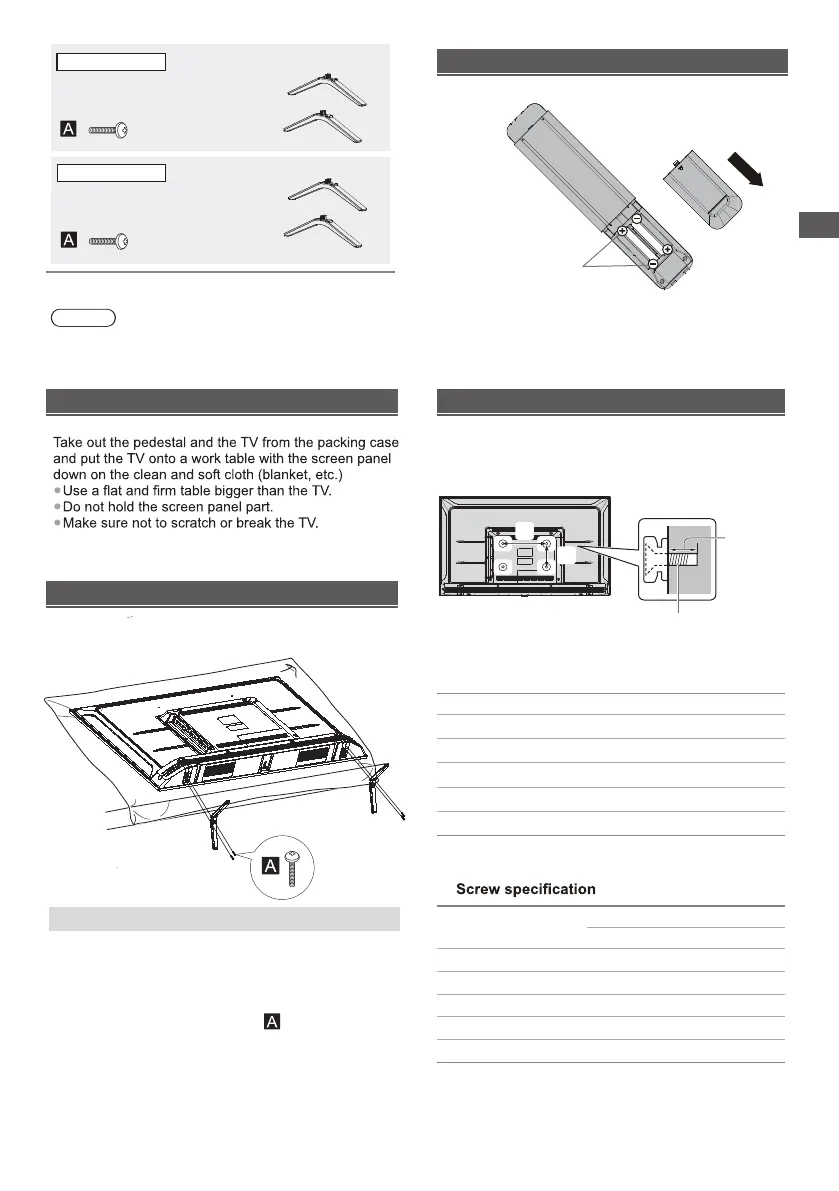

Setting Up the TV
Attaching the pedestal
1 Assemble the pedestal
Be sure to remove the pedestal in the following way when
using the wall-hanging bracket or repacking the TV.
Removing the pedestal from the TV
Preparation
1 Lay the TV on a foam mat or thick soft cloth on a
table.
2 Remove the assembly screws from the TV.
Inserting remote’s batteries
Note the correct
polarity (+ or -)
push down
the cover
65-inch model
●
Assembly screws
●
Base
75-inch model
●
Assembly screws
(M6 × 35) × 4
●
Base
(M5 × 25) × 4
Illustrations shown may be different between models
and countries.
Note
b
a
Please contact your local Panasonic dealer to purchase the
recommended wall-hanging bracket.
Rear of the TV
of
(View from the side)
Wall mounting the TV (optional)
Depth
screw
Screw for fixing the TV onto the
wall-hanging bracket (not supplied)
■
Holes for wall-hanging bracket installation
Model a b
43-inch 300 mm 300 mm
50-inch 300 mm 300 mm
55-inch 300 mm 300 mm
65-inch 400 mm 300 mm
75-inch 400 mm 300 mm
■
Model Type
43-inch M6 12 mm 15 mm
50-inch M6 12 mm 15 mm
55-inch M6 12 mm 15 mm
65-inch M6 12 mm 15 mm
75-inch M6 12 mm 15 mm
Depth of screw
Minimum Maximum
