Cable tie (Bundled the mains lead)
To loosen:
Knob
Keep pushing the knob
To remove from the TV:
Keep pushing both side snaps
Snaps
■ Aerial
TV
RF cable
Aerial
●
For Digital TV, Analogue TV
●
Keep RF (aerial) cable away from the mains lead to
avoid and minimise mains interference pickup.
●
Do not place the RF cable under the TV.
●
An aerial, correct cable (75 coaxial) and correct
terminating plug are required to obtain optimum
quality picture and sound.
●
If a communal aerial system is used, you may require
the correct connection cable and plug between the
wall aerial socket and the TV.
●
Your local Television Service Centre or dealer may
be able to assist you in obtaining the correct aerial
system for your particular area and the accessories
required.
●
Any matters regarding aerial installation, upgrading
of existing systems or accessories required, and
the costs incurred, are the responsibility of you, the
customer.

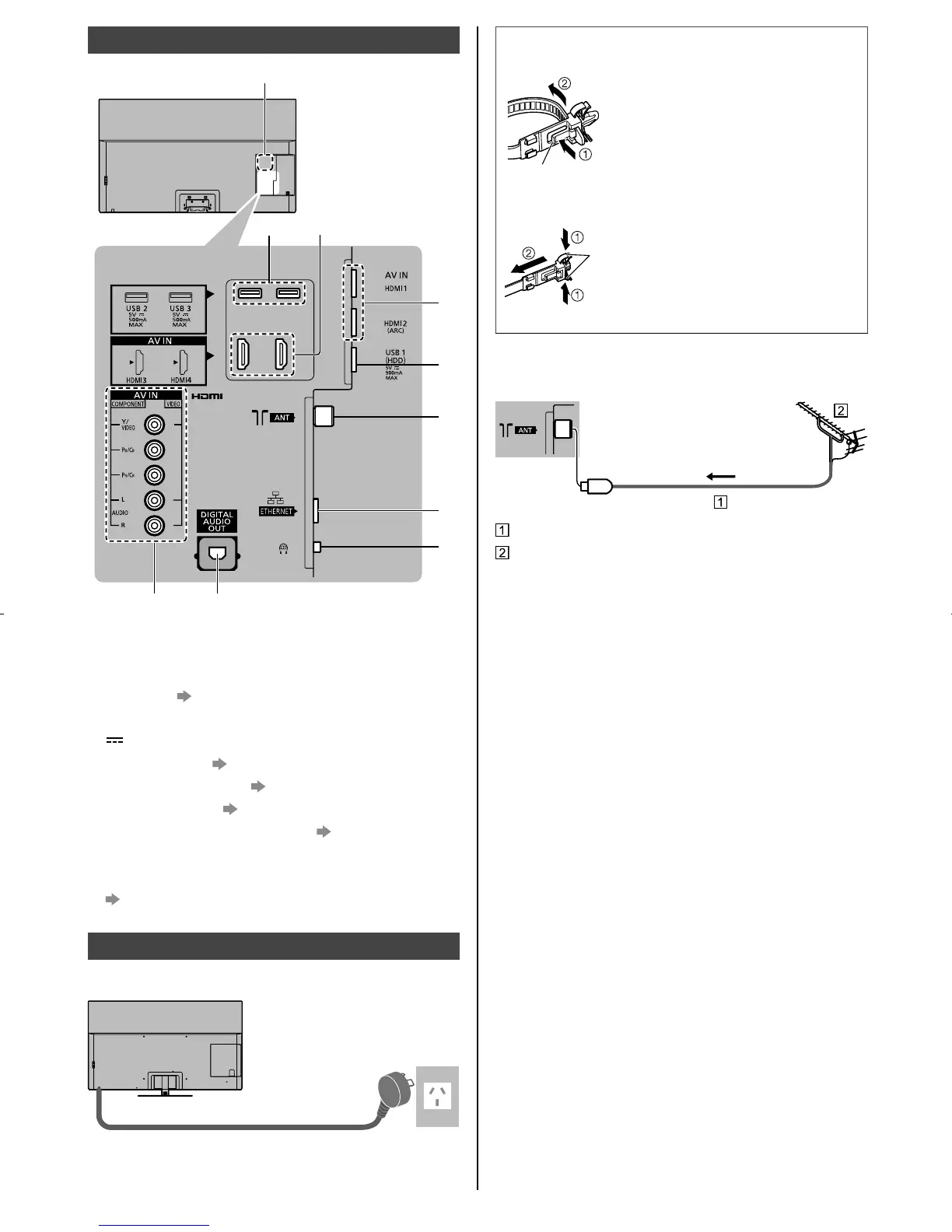

Terminals
1
6
4
5
7
8
23
9 10
1 Model name plate
2 USB 2 - 3 port
3 HDMI3 - 4
4 HDMI1 - 2
(p. 13, 14)
5 USB 1 port
This symbol indicates DC operation
6 Aerial terminal
(p. 12)
7 ETHERNET terminal
(p. 13)
8 Headphone jack
(p. 14)
9 AV IN (COMPONENT / VIDEO)
(p. 14)
10 DIGITAL AUDIO OUT
●
To watch content in 4K format, use HDMI terminal.
(p. 13)
Basic connections
■ Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
To Next Page
