Panasonic TH-P50X30D - 3 Service Navigation; PCB Layout

6
3 Service Navigation

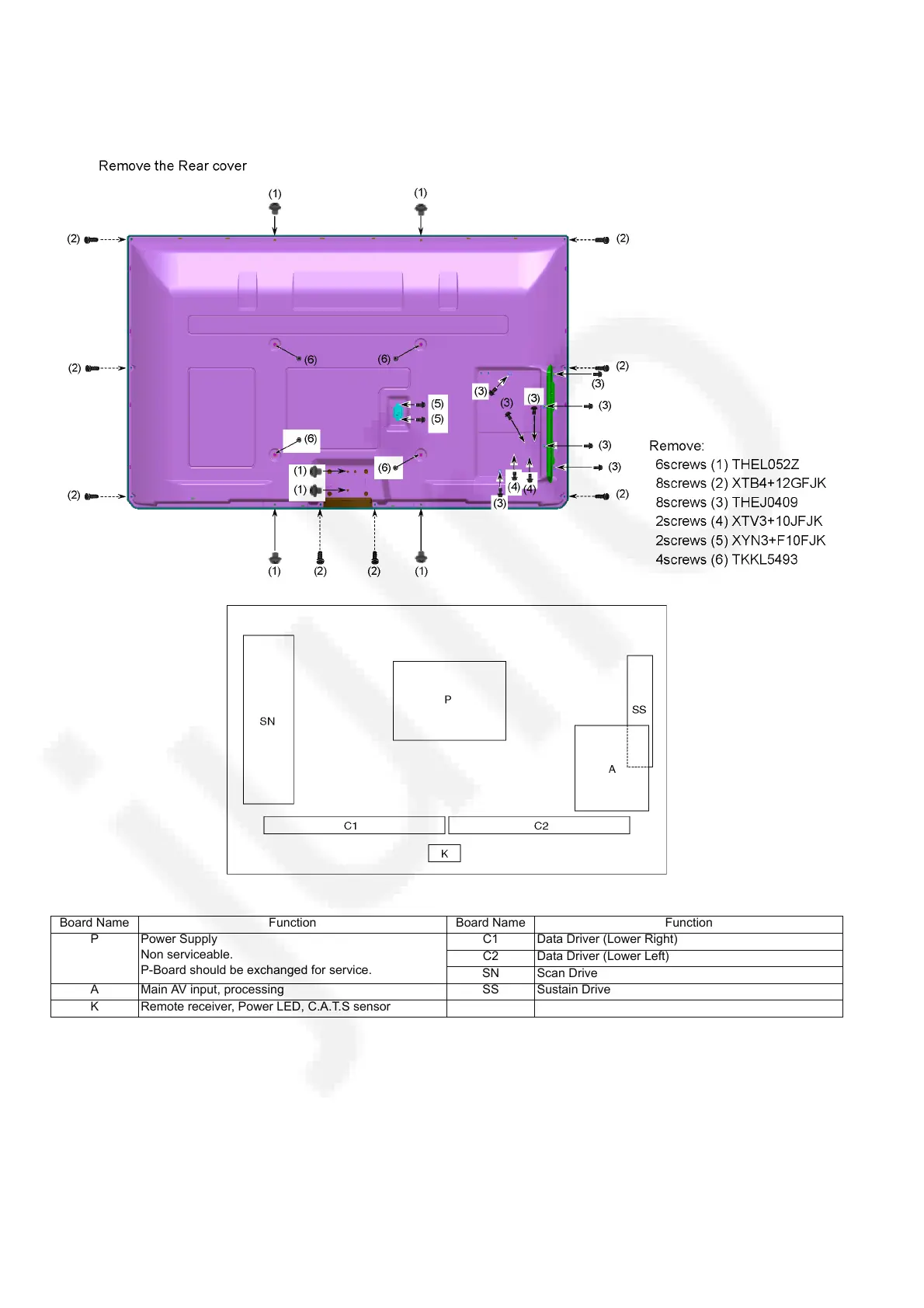

3.1. PCB Layout
Board Name Function Board Name Function
P Power Supply
Non serviceable.
P-Board should be exchanged for service.
C1 Data Driver (Lower Right)
C2 Data Driver (Lower Left)
SN Scan Drive
A Main AV input, processing SS Sustain Drive
K Remote receiver, Power LED, C.A.T.S sensor
