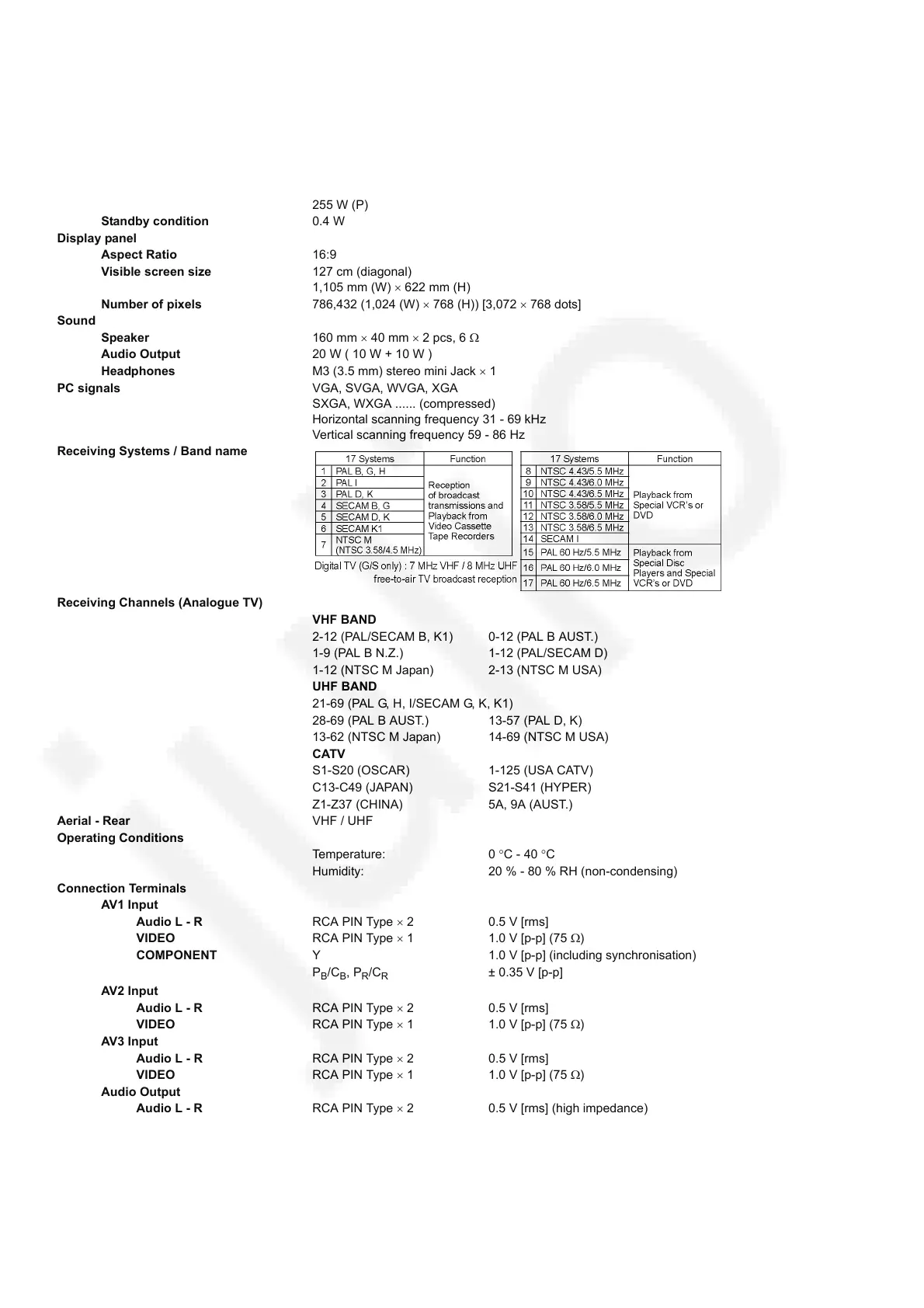

4 Specifications
Power Source AC 220 - 240 V, 50 / 60 Hz (Except P)
AC 110 - 240 V, 50 / 60 Hz (P)
Power
Power Rating 250 W (Except P)
255 W (P)
Standby condition 0.4 W
Display panel
Aspect Ratio 16:9
Visible screen size 127 cm (diagonal)
1,105 mm (W) × 622 mm (H)
Number of pixels 786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots]
Sound
Speaker 160 mm × 40 mm × 2 pcs, 6 Ω
Audio Output 20 W ( 10 W + 10 W )
Headphones M3 (3.5 mm) stereo mini Jack × 1
PC signals VGA, SVGA, WVGA, XGA
SXGA, WXGA ...... (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
Receiving Systems / Band name
Receiving Channels (Analogue TV)
VHF BAND
2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.)
1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D)
1-12 (NTSC M Japan) 2-13 (NTSC M USA)
UHF BAND
21-69 (PAL G, H, I/SECAM G, K, K1)
28-69 (PAL B AUST.) 13-57 (PAL D, K)
13-62 (NTSC M Japan) 14-69 (NTSC M USA)
CATV
S1-S20 (OSCAR) 1-125 (USA CATV)
C13-C49 (JAPAN) S21-S41 (HYPER)
Z1-Z37 (CHINA) 5A, 9A (AUST.)
Aerial - Rear VHF / UHF
Operating Conditions
Temperature: 0 °C - 40 °C
Humidity: 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 Input
Audio L - R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
COMPONENT Y 1.0 V [p-p] (including synchronisation)
P
B
/C
B
, P
R
/C
R
± 0.35 V [p-p]
AV2 Input
Audio L - R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
AV3 Input
Audio L - R RCA PIN Type × 2 0.5 V [rms]
VIDEO RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
Audio Output
Audio L - R RCA PIN Type × 2 0.5 V [rms] (high impedance)
Others
HDMI1 - 3 Input TYPE A Connectors • This TV supports "HDAVI control 5" function.
PC Input HIGH-DENSITY D-SUB 15PIN R / G / B: 0.7 V [p-p] (75 Ω)
HD / VD: TTL Level 2.0 - 5.0 V [p-p] (high impedance)
DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber optic
Card slot SD Card slot × 1
