28

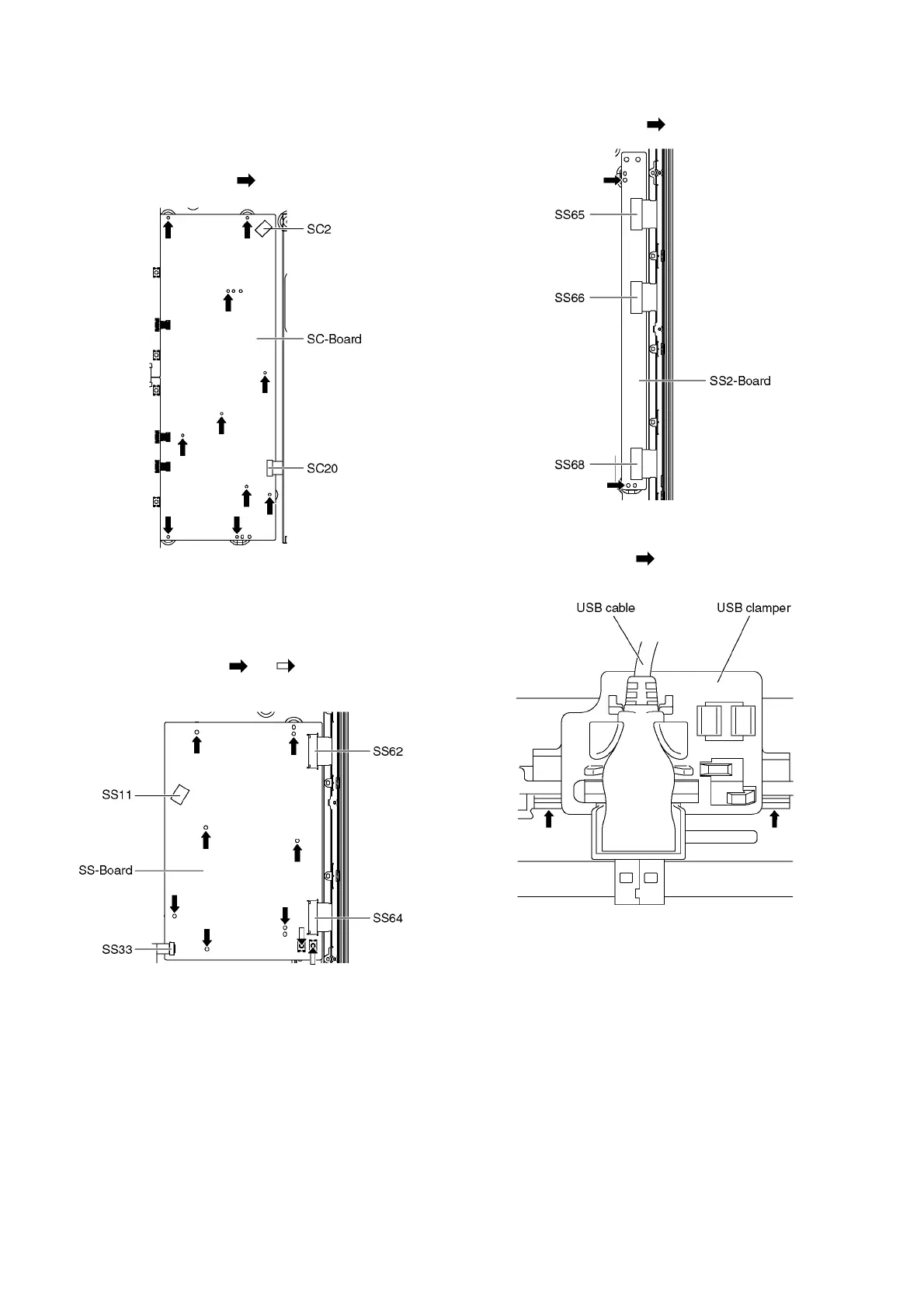

9.2.15. Remove the SC-Board
1. Unlock the cable clampers and the tapes to free the
cables.
2. Disconnect the connector (SC2).
3. Disconnect the flexible cable (SC20).
4. Remove the screws (×10 ) and remove the SC-Board.
9.2.16. Remove the SS-Board
1. Disconnect the connector (SS11).
2. Disconnect the flexible cable (SS33).
3. Disconnect the flexible cables (SS62 and SS64).
4. Remove the screws (×7 , ×2 ) and remove the SS-
Board.
9.2.17. Remove the SS2-Board
1. Disconnect the flexible cables (SS65, SS66 and SS68).
2. Remove the screws (×2 ) and remove the SS2-Board.
9.2.18. Remove the USB clamper
1. Remove the claws (×2 ) and remove the USB clamper.
2. Remove the USB cable from the USB clamper.
