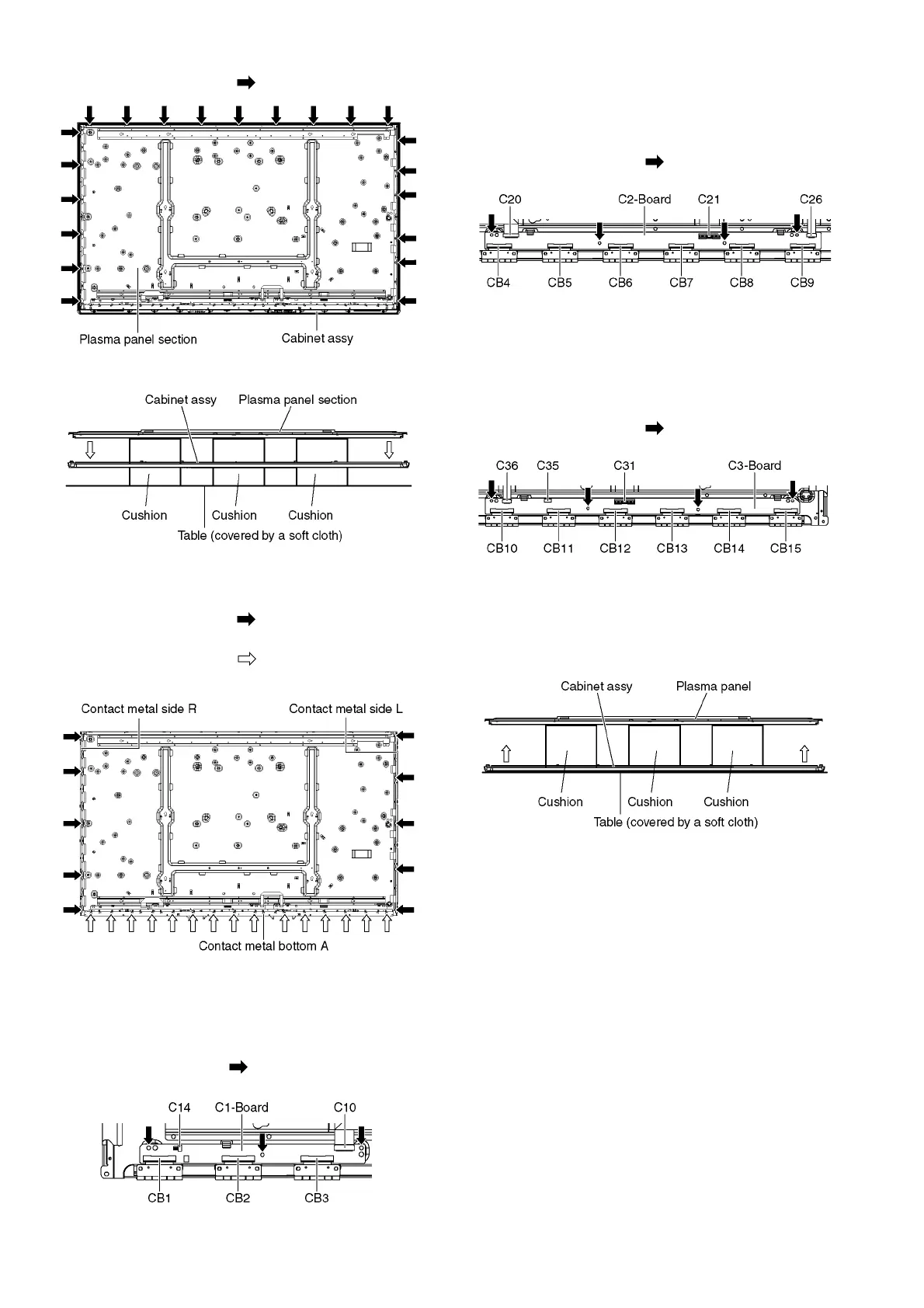

2. Remove the screws (×21 ).
3. Remove the Cabinet assy from the Plasma panel section.
9.2.25. Remove the Contact metals
1. Remove the Tape from the Contact metals.
2. Remove the screws (×10 ).
3. Remove the Contact metal side (L, R).
4. Remove the screws (×15 ).
5. Remove the Contact metal bottom A.
9.2.26. Remove the C1-Board
1. Disconnect the flexible cables (CB1, CB2 and CB3).
2. Disconnect the flexible cable (C10).
3. Disconnect the connector (C14).
4. Remove the screws (×3 ) and remove the C1-Board.
9.2.27. Remove the C2-Board
1. Disconnect the flexible cables (CB4, CB5, CB6, CB7,
CB8 and CB9).
2. Disconnect the flexible cables (C20, C21 and C26).
3. Remove the screws (×4 ) and remove the C2-Board.
9.2.28. Remove the C3-Board
1. Disconnect the flexible cables (CB10, CB11, CB12,
CB13, CB14 and CB15).
2. Disconnect the flexible cables (C31 and C36).
3. Disconnect the connector (C35).
4. Remove the screws (×4 ) and remove the C3-Board.
9.2.29. Replace the Plasma panel
Caution:
Place the Plasma panel on a flat surface of a table
(covered by a soft cloth) and a cushion.
A new Plasma panel itself without Contact metals is fragile.
To avoid the damage to new Plasma panel, carry a new
Plasma panel taking hold of the Contact metals.
1. Place a carton box packed a new Plasma panel on the
flat surface of the work bench.
2. Open a box and without taking a new Plasma panel.
3. Attach the Cabinet assy and each P.C.Board and so on,
to the new Plasma panel.
