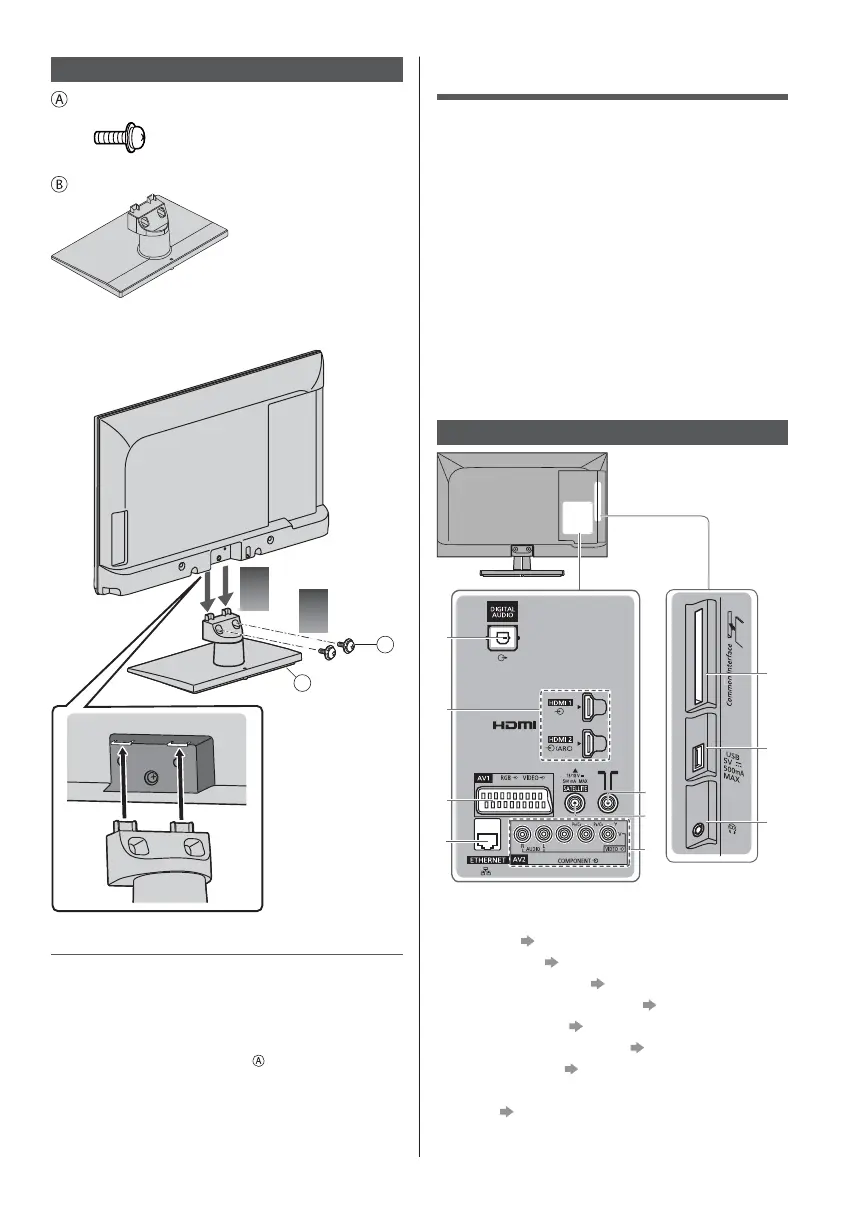

Connections






















Terminals
10
9
8
1
2
3
4
5
7
6
1 DIGITAL AUDIO
2 HDMI1 - 2 (p. 9, 10)
3 AV1 (SCART)
(p. 9)
4 ETHERNET terminal
(p. 9)
5 AV2 (COMPONENT / VIDEO)
(p. 9, 10)
6 Satellite terminal
(p. 8)
7 Terrestrial / cable terminal
(p. 8)
8 Headphone jack (p. 10)
9 USB port
10 CI slot
(p. 10)
Assembling / Removing the pedestal
Assembly screw (2)

Pedestal

 Assembling the pedestal
2
1
A
B
 Removing the pedestal from the TV



1 
2
