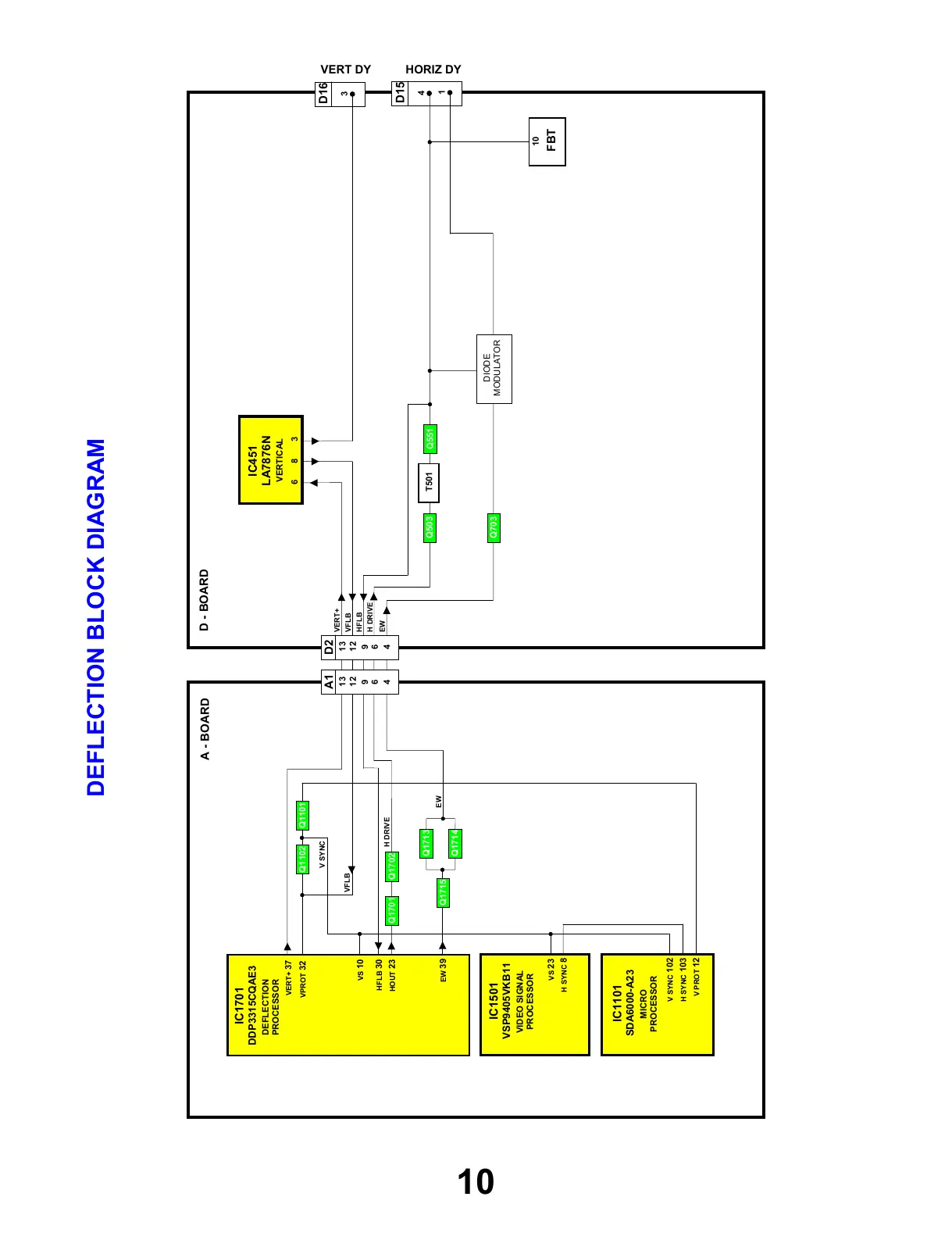

DEFLECTION BLOCK DIAGRAM
10
IC451
LA7876N
VERTICAL
8
3
6
IC1701
DDP3315CQAE3
DEFLECTION
PROCESSOR
VERT+ 37
VPROT 32
Q1102 Q1101
VFLB
HFLB 30
HOUT 23
EW 39
Q1715
Q1713 Q1714
EW
V SYNC
IC1501
VSP9405VKB11
V
IDEO SIGNAL
PROCESSOR
IC1101
SDA6000-A23
MICRO
PROCESSOR
VS 10
VS 23
V SYNC 102
H SYNC 8
H SYNC 103
V PROT 12
13
A1
12
9 6 4
D2
13
9 6 4
12
Q1701 Q1702
H DRIVE
VERT+
VFLB
HFLB
H DRIVE
EW
Q503
T501
Q551
Q703
FBT
10
DIODE
MODULATOR
3
D16
VERT DY
4
D15
1
HORIZ DY
A - BOARD
D - BOARD
