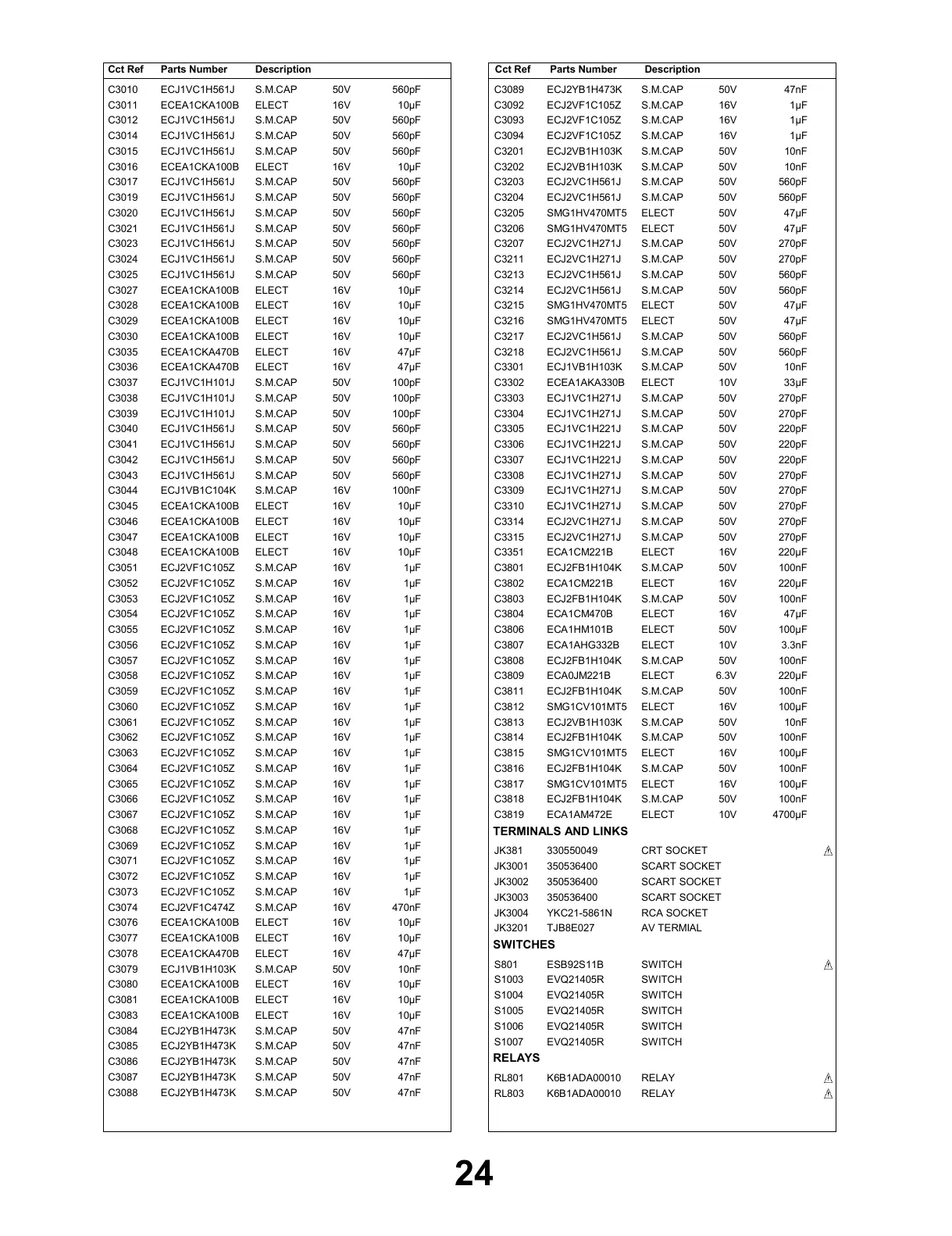

Panasonic TX-29PX10D - Page 24

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CAPC3010 ECJ1VC1H561J 50V 560pF
ELECTC3011 ECEA1CKA100B 16V 10µF
S.M.CAPC3012 ECJ1VC1H561J 50V 560pF
S.M.CAPC3014 ECJ1VC1H561J 50V 560pF
S.M.CAPC3015 ECJ1VC1H561J 50V 560pF
ELECTC3016 ECEA1CKA100B 16V 10µF
S.M.CAPC3017 ECJ1VC1H561J 50V 560pF
S.M.CAPC3019 ECJ1VC1H561J 50V 560pF
S.M.CAPC3020 ECJ1VC1H561J 50V 560pF
S.M.CAPC3021 ECJ1VC1H561J 50V 560pF
S.M.CAPC3023 ECJ1VC1H561J 50V 560pF
S.M.CAPC3024 ECJ1VC1H561J 50V 560pF
S.M.CAPC3025 ECJ1VC1H561J 50V 560pF
ELECTC3027 ECEA1CKA100B 16V 10µF
ELECTC3028 ECEA1CKA100B 16V 10µF
ELECTC3029 ECEA1CKA100B 16V 10µF
ELECTC3030 ECEA1CKA100B 16V 10µF
ELECTC3035 ECEA1CKA470B 16V 47µF
ELECTC3036 ECEA1CKA470B 16V 47µF
S.M.CAPC3037 ECJ1VC1H101J 50V 100pF
S.M.CAPC3038 ECJ1VC1H101J 50V 100pF
S.M.CAPC3039 ECJ1VC1H101J 50V 100pF
S.M.CAPC3040 ECJ1VC1H561J 50V 560pF
S.M.CAPC3041 ECJ1VC1H561J 50V 560pF
S.M.CAPC3042 ECJ1VC1H561J 50V 560pF
S.M.CAPC3043 ECJ1VC1H561J 50V 560pF
S.M.CAPC3044 ECJ1VB1C104K 16V 100nF
ELECTC3045 ECEA1CKA100B 16V 10µF
ELECTC3046 ECEA1CKA100B 16V 10µF
ELECTC3047 ECEA1CKA100B 16V 10µF
ELECTC3048 ECEA1CKA100B 16V 10µF
S.M.CAPC3051 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3052 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3053 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3054 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3055 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3056 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3057 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3058 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3059 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3060 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3061 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3062 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3063 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3064 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3065 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3066 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3067 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3068 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3069 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3071 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3072 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3073 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3074 ECJ2VF1C474Z 16V 470nF
ELECTC3076 ECEA1CKA100B 16V 10µF
ELECTC3077 ECEA1CKA100B 16V 10µF
ELECTC3078 ECEA1CKA470B 16V 47µF
S.M.CAPC3079 ECJ1VB1H103K 50V 10nF
ELECTC3080 ECEA1CKA100B 16V 10µF
ELECTC3081 ECEA1CKA100B 16V 10µF
ELECTC3083 ECEA1CKA100B 16V 10µF
S.M.CAPC3084 ECJ2YB1H473K 50V 47nF
S.M.CAPC3085 ECJ2YB1H473K 50V 47nF
S.M.CAPC3086 ECJ2YB1H473K 50V 47nF
S.M.CAPC3087 ECJ2YB1H473K 50V 47nF
S.M.CAPC3088 ECJ2YB1H473K 50V 47nF
S.M.CAPC3089 ECJ2YB1H473K 50V 47nF
S.M.CAPC3092 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3093 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3094 ECJ2VF1C105Z 16V 1µF
S.M.CAPC3201 ECJ2VB1H103K 50V 10nF
S.M.CAPC3202 ECJ2VB1H103K 50V 10nF
S.M.CAPC3203 ECJ2VC1H561J 50V 560pF
S.M.CAPC3204 ECJ2VC1H561J 50V 560pF
ELECTC3205 SMG1HV470MT5 50V 47µF
ELECTC3206 SMG1HV470MT5 50V 47µF
S.M.CAPC3207 ECJ2VC1H271J 50V 270pF
S.M.CAPC3211 ECJ2VC1H271J 50V 270pF
S.M.CAPC3213 ECJ2VC1H561J 50V 560pF
S.M.CAPC3214 ECJ2VC1H561J 50V 560pF
ELECTC3215 SMG1HV470MT5 50V 47µF
ELECTC3216 SMG1HV470MT5 50V 47µF
S.M.CAPC3217 ECJ2VC1H561J 50V 560pF
S.M.CAPC3218 ECJ2VC1H561J 50V 560pF
S.M.CAPC3301 ECJ1VB1H103K 50V 10nF
ELECTC3302 ECEA1AKA330B 10V 33µF
S.M.CAPC3303 ECJ1VC1H271J 50V 270pF
S.M.CAPC3304 ECJ1VC1H271J 50V 270pF
S.M.CAPC3305 ECJ1VC1H221J 50V 220pF
S.M.CAPC3306 ECJ1VC1H221J 50V 220pF
S.M.CAPC3307 ECJ1VC1H221J 50V 220pF
S.M.CAPC3308 ECJ1VC1H271J 50V 270pF
S.M.CAPC3309 ECJ1VC1H271J 50V 270pF
S.M.CAPC3310 ECJ1VC1H271J 50V 270pF
S.M.CAPC3314 ECJ2VC1H271J 50V 270pF
S.M.CAPC3315 ECJ2VC1H271J 50V 270pF
ELECTC3351 ECA1CM221B 16V 220µF
S.M.CAPC3801 ECJ2FB1H104K 50V 100nF
ELECTC3802 ECA1CM221B 16V 220µF
S.M.CAPC3803 ECJ2FB1H104K 50V 100nF
ELECTC3804 ECA1CM470B 16V 47µF
ELECTC3806 ECA1HM101B 50V 100µF
ELECTC3807 ECA1AHG332B 10V 3.3nF
S.M.CAPC3808 ECJ2FB1H104K 50V 100nF
ELECTC3809 ECA0JM221B 6.3V 220µF
S.M.CAPC3811 ECJ2FB1H104K 50V 100nF
ELECTC3812 SMG1CV101MT5 16V 100µF
S.M.CAPC3813 ECJ2VB1H103K 50V 10nF
S.M.CAPC3814 ECJ2FB1H104K 50V 100nF
ELECTC3815 SMG1CV101MT5 16V 100µF
S.M.CAPC3816 ECJ2FB1H104K 50V 100nF
ELECTC3817 SMG1CV101MT5 16V 100µF
S.M.CAPC3818 ECJ2FB1H104K 50V 100nF
ELECTC3819 ECA1AM472E 10V 4700µF
TERMINALS AND LINKS
CRT SOCKET JK381 330550049
SCART SOCKET JK3001 350536400
SCART SOCKET JK3002 350536400
SCART SOCKET JK3003 350536400
RCA SOCKET JK3004 YKC21-5861N
AV TERMIAL JK3201 TJB8E027
SWITCHES
SWITCH S801 ESB92S11B
SWITCH S1003 EVQ21405R
SWITCH S1004 EVQ21405R
SWITCH S1005 EVQ21405R
SWITCH S1006 EVQ21405R
SWITCH S1007 EVQ21405R
RELAYS
RELAY RL801 K6B1ADA00010
RELAY RL803 K6B1ADA00010
24
