English - 11 -

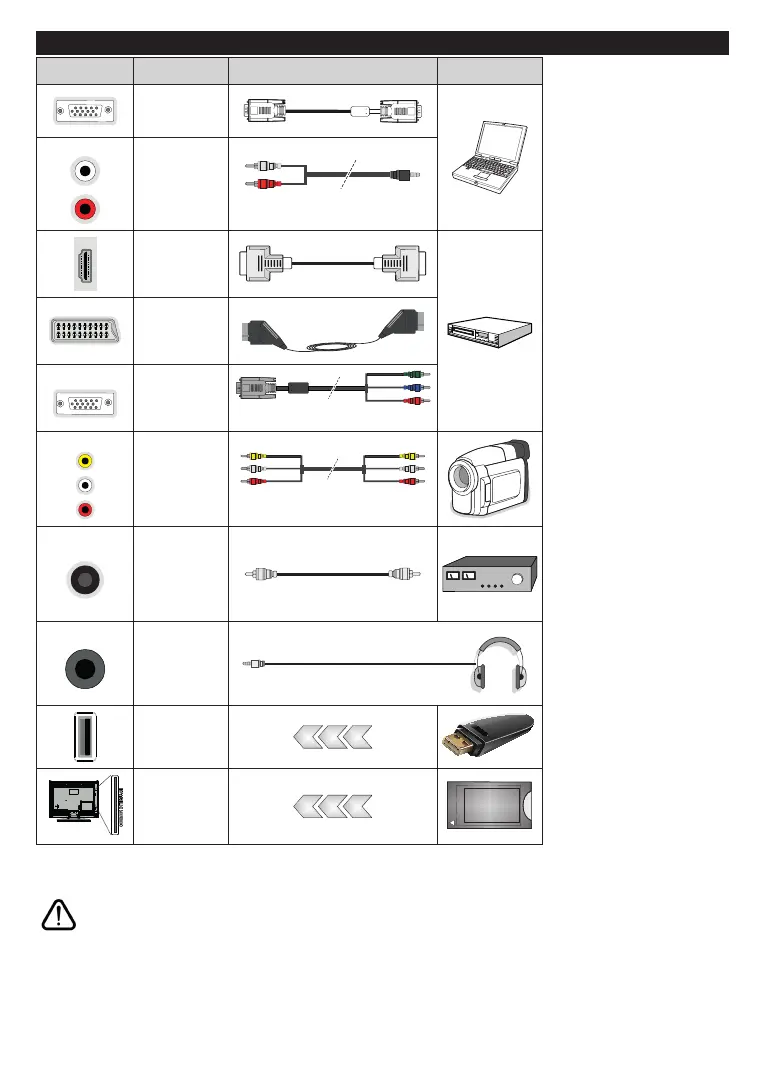

Connections
Connector Type Cables Device
VGA
Connection
(back)
AUDIO IN
PC/YPbPr
Audio
Connection
(side)
YPbPr/PC Audio Cable
HDMI
Connection
(back)
Scart
Connection
(back)
YPBPR
YPbPr Video
Connection
(back)
PC to YPbPr Connection Cable
SIDE AV
Side AV
(Audio/Video)
Connection
(side)
Audio/Video Cable
SPDIF
SPDIF
(Coaxial Out)
Connection
(back)
HEADPHONE
Headphone
Connection
(side)
USB
Connection
(side)
CI
Connection
(side)
CAM
module
See the illustrations on the left
side. You can use YPbPr to VGA
cable to enable YPbPr signal via
VGA input. You cannot use VGA
and YPbPr at the same time.
To enable PC/YPbPr audio, you
will need to use the side audio
inputs with a YPbPr/PC audio
cable for audio connection. If
an external device is connect-
ed via the SCART socket, the
TV may automatically switch to
EXT1 mode. When receiving DTV
channels (Mpeg4 H.264, H.265)
or while in Media Browser mode,
output will not be available via the
scart socket. When using the wall
mounting kit (available from a
third party in the market, if not
supplied), we recommend that
you plug all your cables into the
back of the TV before mounting
on the wall. Insert or remove the
CI module only when the TV is
SWITCHED OFF. You should
refer to the module instruction
manual for details of the settings.
The/Each USB input of your TV
supports devices up to 500mA.
Connecting devices that have
current value above 500mA may
damage your TV. When connect-
ing equipment using a HDMI
cable to your TV, to guarantee
scient immunity against para-
sitic frequency radiation, you have
to use a high speed shielded (high
grade) HDMI cable with ferrites.
any connection. After the connection is done, you can turn on the units and use them.
