Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type
number to your order.

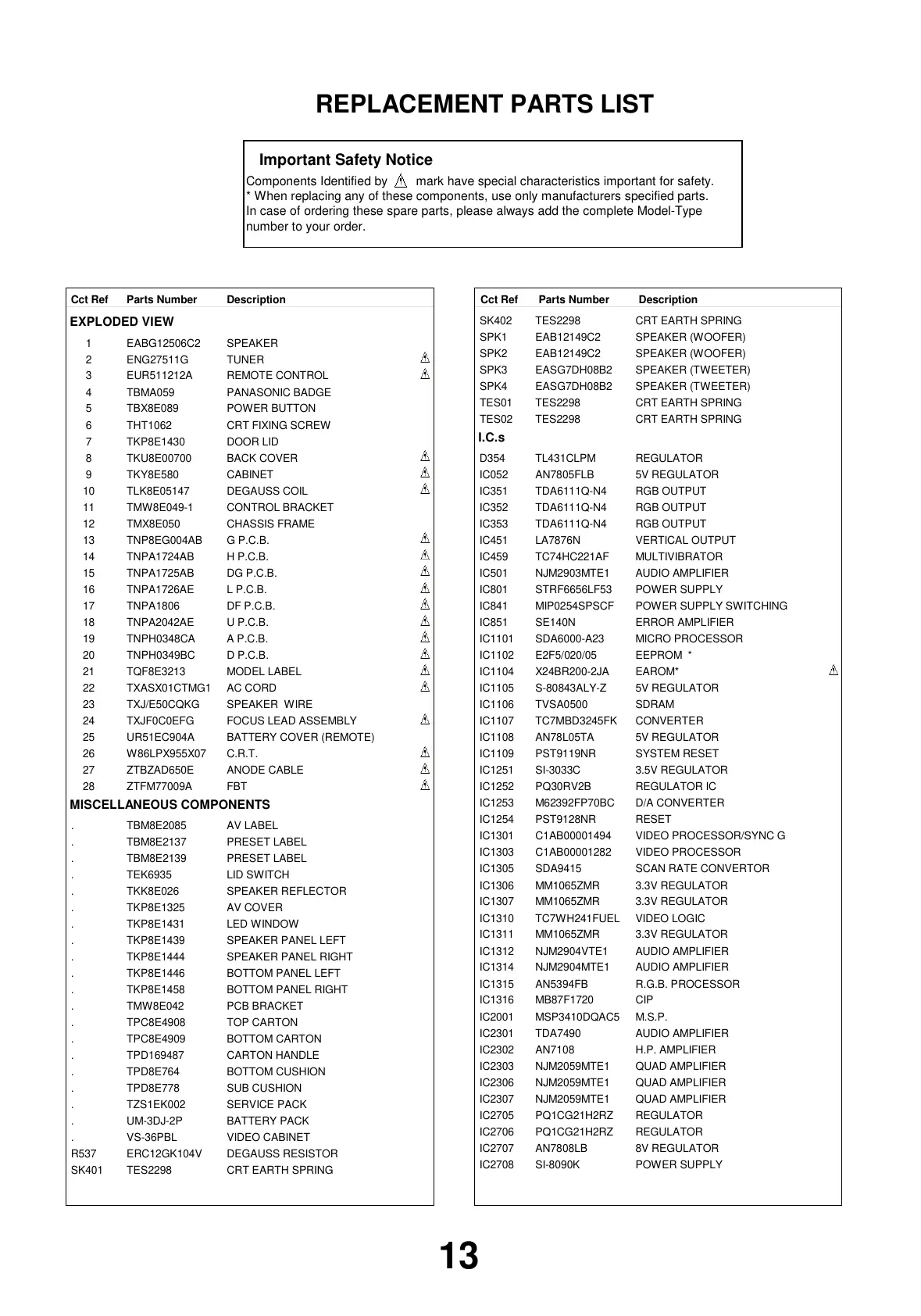

REPLACEMENT PARTS LIST
Im
p
ortant Safet
y
Notice
DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
EXPLODED VIEW
SPEAKER 1 EABG12506C2
TUNER 2 ENG27511G
REMOTE CONTROL 3 EUR511212A
PANASONIC BADGE 4 TBMA059
POWER BUTTON 5 TBX8E089
CRT FIXING SCREW 6 THT1062
DOOR LID 7 TKP8E1430
BACK COVER 8 TKU8E00700
CABINET 9 TKY8E580
DEGAUSS COIL 10 TLK8E05147
CONTROL BRACKET 11 TMW8E049-1
CHASSIS FRAME 12 TMX8E050
G P.C.B. 13 TNP8EG004AB
H P.C.B. 14 TNPA1724AB
DG P.C.B. 15 TNPA1725AB
L P.C.B. 16 TNPA1726AE
DF P.C.B. 17 TNPA1806
U P.C.B. 18 TNPA2042AE
A P.C.B. 19 TNPH0348CA
D P.C.B. 20 TNPH0349BC
MODEL LABEL 21 TQF8E3213
AC CORD 22 TXASX01CTMG1
SPEAKER WIRE 23 TXJ/E50CQKG
FOCUS LEAD ASSEMBLY 24 TXJF0C0EFG
BATTERY COVER (REMOTE) 25 UR51EC904A
C.R.T. 26 W86LPX955X07
ANODE CABLE 27 ZTBZAD650E
FBT 28 ZTFM77009A
MISCELLANEOUS COMPONENTS
AV LABEL . TBM8E2085
PRESET LABEL . TBM8E2137
PRESET LABEL . TBM8E2139
LID SWITCH . TEK6935
SPEAKER REFLECTOR. TKK8E026
AV COVER . TKP8E1325
LED WINDOW . TKP8E1431
SPEAKER PANEL LEFT. TKP8E1439
SPEAKER PANEL RIGHT. TKP8E1444
BOTTOM PANEL LEFT. TKP8E1446
BOTTOM PANEL RIGHT. TKP8E1458
PCB BRACKET . TMW8E042
TOP CARTON . TPC8E4908
BOTTOM CARTON . TPC8E4909
CARTON HANDLE . TPD169487
BOTTOM CUSHION . TPD8E764
SUB CUSHION . TPD8E778
SERVICE PACK . TZS1EK002
BATTERY PACK . UM-3DJ-2P
VIDEO CABINET . VS-36PBL
DEGAUSS RESISTOR R537 ERC12GK104V
CRT EARTH SPRING SK401 TES2298
CRT EARTH SPRING SK402 TES2298
SPEAKER (WOOFER) SPK1 EAB12149C2
SPEAKER (WOOFER) SPK2 EAB12149C2
SPEAKER (TWEETER) SPK3 EASG7DH08B2
SPEAKER (TWEETER) SPK4 EASG7DH08B2
CRT EARTH SPRING TES01 TES2298
CRT EARTH SPRING TES02 TES2298
I.C.s
REGULATOR D354 TL431CLPM
5V REGULATOR IC052 AN7805FLB
RGB OUTPUT IC351 TDA6111Q-N4
RGB OUTPUT IC352 TDA6111Q-N4
RGB OUTPUT IC353 TDA6111Q-N4
VERTICAL OUTPUT IC451 LA7876N
MULTIVIBRATOR IC459 TC74HC221AF
AUDIO AMPLIFIER IC501 NJM2903MTE1
POWER SUPPLY IC801 STRF6656LF53
POWER SUPPLY SWITCHINGIC841 MIP0254SPSCF
ERROR AMPLIFIER IC851 SE140N
MICRO PROCESSOR IC1101 SDA6000-A23
EEPROM * IC1102 E2F5/020/05
EAROM* IC1104 X24BR200-2JA
5V REGULATOR IC1105 S-80843ALY-Z
SDRAM IC1106 TVSA0500
CONVERTER IC1107 TC7MBD3245FK
5V REGULATOR IC1108 AN78L05TA
SYSTEM RESET IC1109 PST9119NR
3.5V REGULATOR IC1251 SI-3033C
REGULATOR IC IC1252 PQ30RV2B
D/A CONVERTER IC1253 M62392FP70BC
RESET IC1254 PST9128NR
VIDEO PROCESSOR/SYNC GIC1301 C1AB00001494
VIDEO PROCESSOR IC1303 C1AB00001282
SCAN RATE CONVERTOR IC1305 SDA9415
3.3V REGULATOR IC1306 MM1065ZMR
3.3V REGULATOR IC1307 MM1065ZMR
VIDEO LOGIC IC1310 TC7WH241FUEL
3.3V REGULATOR IC1311 MM1065ZMR
AUDIO AMPLIFIER IC1312 NJM2904VTE1
AUDIO AMPLIFIER IC1314 NJM2904MTE1
R.G.B. PROCESSOR IC1315 AN5394FB
CIP IC1316 MB87F1720
M.S.P. IC2001 MSP3410DQAC5
AUDIO AMPLIFIER IC2301 TDA7490
H.P. AMPLIFIER IC2302 AN7108
QUAD AMPLIFIER IC2303 NJM2059MTE1
QUAD AMPLIFIER IC2306 NJM2059MTE1
QUAD AMPLIFIER IC2307 NJM2059MTE1
REGULATOR IC2705 PQ1CG21H2RZ
REGULATOR IC2706 PQ1CG21H2RZ
8V REGULATOR IC2707 AN7808LB
POWER SUPPLY IC2708 SI-8090K
13
