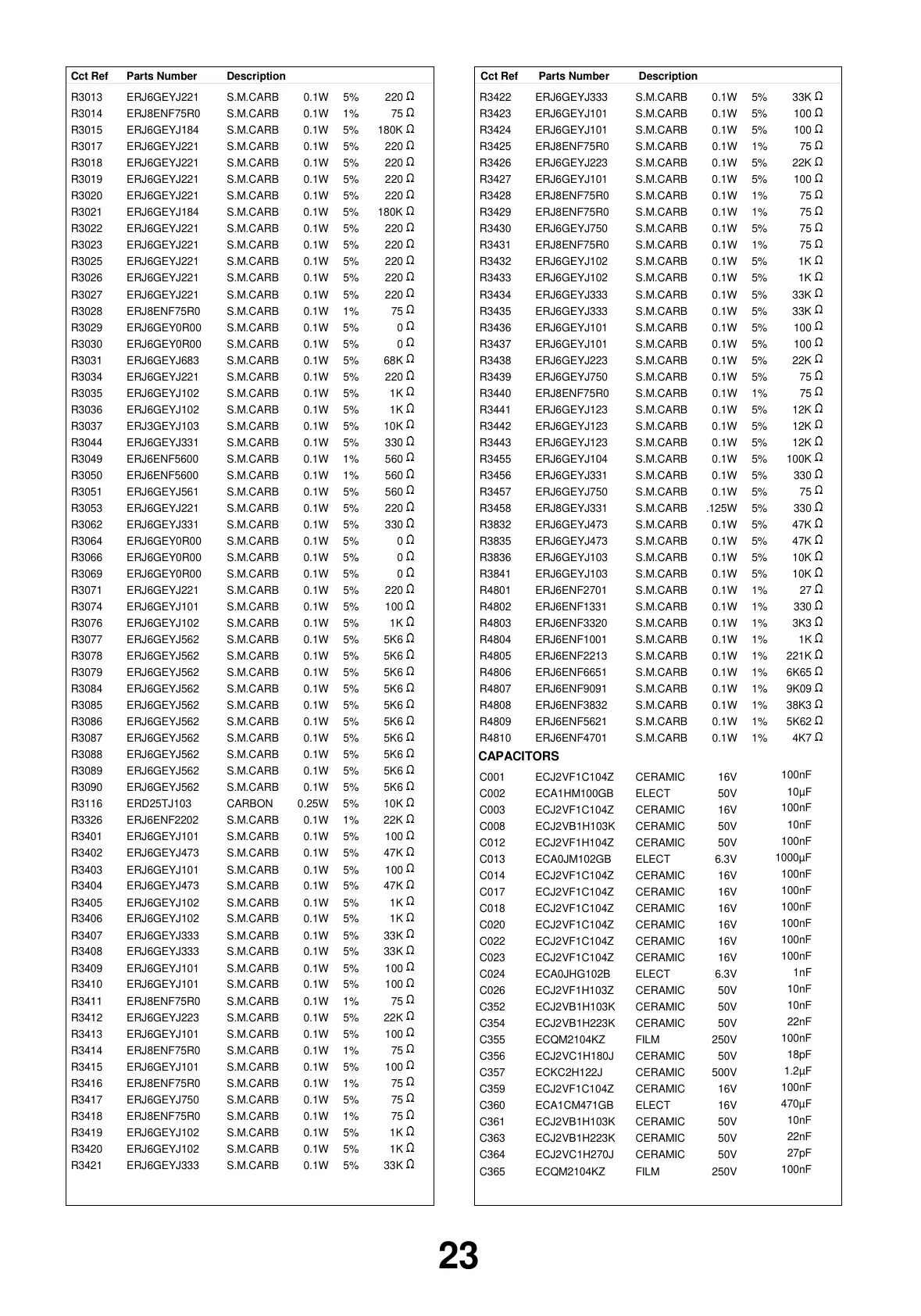

Panasonic TX-36PL30 - Page 23

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CARBR3013 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3014 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3015 ERJ6GEYJ184 0.1W 5% 180K
S.M.CARBR3017 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3018 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3019 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3020 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3021 ERJ6GEYJ184 0.1W 5% 180K
S.M.CARBR3022 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3023 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3025 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3026 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3027 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3028 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3029 ERJ6GEY0R00 0.1W 5% 0
S.M.CARBR3030 ERJ6GEY0R00 0.1W 5% 0
S.M.CARBR3031 ERJ6GEYJ683 0.1W 5% 68K
S.M.CARBR3034 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3035 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3036 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3037 ERJ3GEYJ103 0.1W 5% 10K
S.M.CARBR3044 ERJ6GEYJ331 0.1W 5% 330
S.M.CARBR3049 ERJ6ENF5600 0.1W 1% 560
S.M.CARBR3050 ERJ6ENF5600 0.1W 1% 560
S.M.CARBR3051 ERJ6GEYJ561 0.1W 5% 560
S.M.CARBR3053 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3062 ERJ6GEYJ331 0.1W 5% 330
S.M.CARBR3064 ERJ6GEY0R00 0.1W 5% 0
S.M.CARBR3066 ERJ6GEY0R00 0.1W 5% 0
S.M.CARBR3069 ERJ6GEY0R00 0.1W 5% 0
S.M.CARBR3071 ERJ6GEYJ221 0.1W 5% 220
S.M.CARBR3074 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3076 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3077 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3078 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3079 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3084 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3085 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3086 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3087 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3088 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3089 ERJ6GEYJ562 0.1W 5% 5K6
S.M.CARBR3090 ERJ6GEYJ562 0.1W 5% 5K6
CARBONR3116 ERD25TJ103 0.25W 5% 10K
S.M.CARBR3326 ERJ6ENF2202 0.1W 1% 22K
S.M.CARBR3401 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3402 ERJ6GEYJ473 0.1W 5% 47K
S.M.CARBR3403 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3404 ERJ6GEYJ473 0.1W 5% 47K
S.M.CARBR3405 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3406 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3407 ERJ6GEYJ333 0.1W 5% 33K
S.M.CARBR3408 ERJ6GEYJ333 0.1W 5% 33K
S.M.CARBR3409 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3410 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3411 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3412 ERJ6GEYJ223 0.1W 5% 22K
S.M.CARBR3413 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3414 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3415 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3416 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3417 ERJ6GEYJ750 0.1W 5% 75
S.M.CARBR3418 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3419 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3420 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3421 ERJ6GEYJ333 0.1W 5% 33K
S.M.CARBR3422 ERJ6GEYJ333 0.1W 5% 33K
S.M.CARBR3423 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3424 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3425 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3426 ERJ6GEYJ223 0.1W 5% 22K
S.M.CARBR3427 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3428 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3429 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3430 ERJ6GEYJ750 0.1W 5% 75
S.M.CARBR3431 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3432 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3433 ERJ6GEYJ102 0.1W 5% 1K
S.M.CARBR3434 ERJ6GEYJ333 0.1W 5% 33K
S.M.CARBR3435 ERJ6GEYJ333 0.1W 5% 33K
S.M.CARBR3436 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3437 ERJ6GEYJ101 0.1W 5% 100
S.M.CARBR3438 ERJ6GEYJ223 0.1W 5% 22K
S.M.CARBR3439 ERJ6GEYJ750 0.1W 5% 75
S.M.CARBR3440 ERJ8ENF75R0 0.1W 1% 75
S.M.CARBR3441 ERJ6GEYJ123 0.1W 5% 12K
S.M.CARBR3442 ERJ6GEYJ123 0.1W 5% 12K
S.M.CARBR3443 ERJ6GEYJ123 0.1W 5% 12K
S.M.CARBR3455 ERJ6GEYJ104 0.1W 5% 100K
S.M.CARBR3456 ERJ6GEYJ331 0.1W 5% 330
S.M.CARBR3457 ERJ6GEYJ750 0.1W 5% 75
S.M.CARBR3458 ERJ8GEYJ331 .125W 5% 330
S.M.CARBR3832 ERJ6GEYJ473 0.1W 5% 47K
S.M.CARBR3835 ERJ6GEYJ473 0.1W 5% 47K
S.M.CARBR3836 ERJ6GEYJ103 0.1W 5% 10K
S.M.CARBR3841 ERJ6GEYJ103 0.1W 5% 10K
S.M.CARBR4801 ERJ6ENF2701 0.1W 1% 27
S.M.CARBR4802 ERJ6ENF1331 0.1W 1% 330
S.M.CARBR4803 ERJ6ENF3320 0.1W 1% 3K3
S.M.CARBR4804 ERJ6ENF1001 0.1W 1% 1K
S.M.CARBR4805 ERJ6ENF2213 0.1W 1% 221K
S.M.CARBR4806 ERJ6ENF6651 0.1W 1% 6K65
S.M.CARBR4807 ERJ6ENF9091 0.1W 1% 9K09
S.M.CARBR4808 ERJ6ENF3832 0.1W 1% 38K3
S.M.CARBR4809 ERJ6ENF5621 0.1W 1% 5K62
S.M.CARBR4810 ERJ6ENF4701 0.1W 1% 4K7
CAPACITORS
CERAMICC001 ECJ2VF1C104Z 16V
100nF
ELECT C002 ECA1HM100GB 50V
10µF
CERAMICC003 ECJ2VF1C104Z 16V
100nF
CERAMICC008 ECJ2VB1H103K 50V
10nF
CERAMICC012 ECJ2VF1H104Z 50V
100nF
ELECT C013 ECA0JM102GB 6.3V
1000µF
CERAMICC014 ECJ2VF1C104Z 16V
100nF
CERAMICC017 ECJ2VF1C104Z 16V
100nF
CERAMICC018 ECJ2VF1C104Z 16V
100nF
CERAMICC020 ECJ2VF1C104Z 16V
100nF
CERAMICC022 ECJ2VF1C104Z 16V
100nF
CERAMICC023 ECJ2VF1C104Z 16V
100nF
ELECTC024 ECA0JHG102B 6.3V
1nF
CERAMICC026 ECJ2VF1H103Z 50V
10nF
CERAMICC352 ECJ2VB1H103K 50V
10nF
CERAMICC354 ECJ2VB1H223K 50V
22nF
FILMC355 ECQM2104KZ 250V
100nF
CERAMICC356 ECJ2VC1H180J 50V
18pF
CERAMICC357 ECKC2H122J 500V
1.2µF
CERAMICC359 ECJ2VF1C104Z 16V
100nF
ELECT C360 ECA1CM471GB 16V
470µF
CERAMICC361 ECJ2VB1H103K 50V
10nF
CERAMICC363 ECJ2VB1H223K 50V
22nF
CERAMICC364 ECJ2VC1H270J 50V
27pF
FILMC365 ECQM2104KZ 250V
100nF
23
