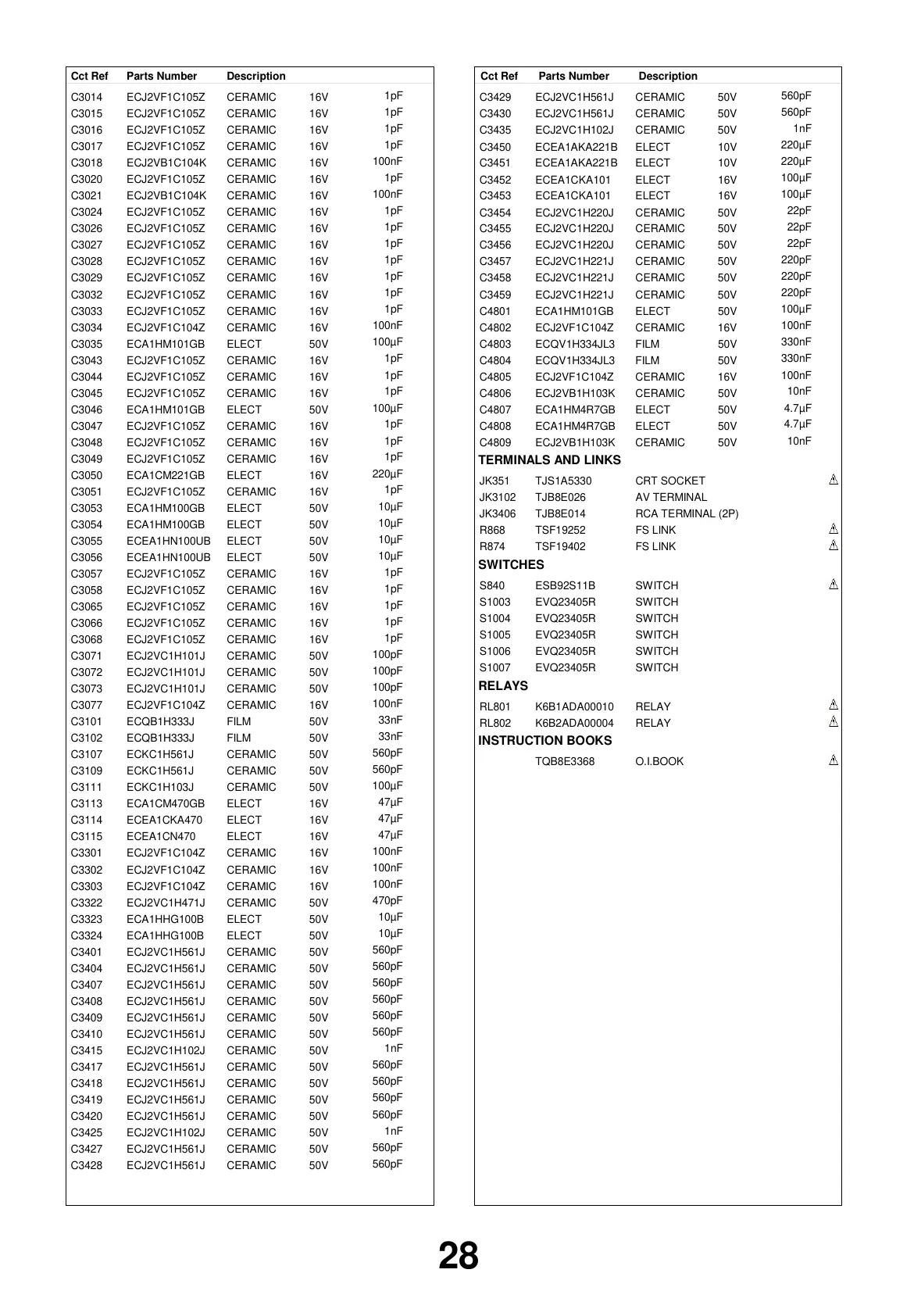

Panasonic TX-36PL30 - Page 28

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
CERAMICC3014 ECJ2VF1C105Z 16V
1pF
CERAMICC3015 ECJ2VF1C105Z 16V
1pF
CERAMICC3016 ECJ2VF1C105Z 16V
1pF
CERAMICC3017 ECJ2VF1C105Z 16V
1pF
CERAMICC3018 ECJ2VB1C104K 16V
100nF
CERAMICC3020 ECJ2VF1C105Z 16V
1pF
CERAMICC3021 ECJ2VB1C104K 16V
100nF
CERAMICC3024 ECJ2VF1C105Z 16V
1pF
CERAMICC3026 ECJ2VF1C105Z 16V
1pF
CERAMICC3027 ECJ2VF1C105Z 16V
1pF
CERAMICC3028 ECJ2VF1C105Z 16V
1pF
CERAMICC3029 ECJ2VF1C105Z 16V
1pF
CERAMICC3032 ECJ2VF1C105Z 16V
1pF
CERAMICC3033 ECJ2VF1C105Z 16V
1pF
CERAMICC3034 ECJ2VF1C104Z 16V
100nF
ELECT C3035 ECA1HM101GB 50V
100µF
CERAMICC3043 ECJ2VF1C105Z 16V
1pF
CERAMICC3044 ECJ2VF1C105Z 16V
1pF
CERAMICC3045 ECJ2VF1C105Z 16V
1pF
ELECT C3046 ECA1HM101GB 50V
100µF
CERAMICC3047 ECJ2VF1C105Z 16V
1pF
CERAMICC3048 ECJ2VF1C105Z 16V
1pF
CERAMICC3049 ECJ2VF1C105Z 16V
1pF
ELECT C3050 ECA1CM221GB 16V
220µF
CERAMICC3051 ECJ2VF1C105Z 16V
1pF
ELECT C3053 ECA1HM100GB 50V
10µF
ELECT C3054 ECA1HM100GB 50V
10µF
ELECT C3055 ECEA1HN100UB 50V
10µF
ELECT C3056 ECEA1HN100UB 50V
10µF
CERAMICC3057 ECJ2VF1C105Z 16V
1pF
CERAMICC3058 ECJ2VF1C105Z 16V
1pF
CERAMICC3065 ECJ2VF1C105Z 16V
1pF
CERAMICC3066 ECJ2VF1C105Z 16V
1pF
CERAMICC3068 ECJ2VF1C105Z 16V
1pF
CERAMICC3071 ECJ2VC1H101J 50V
100pF
CERAMICC3072 ECJ2VC1H101J 50V
100pF
CERAMICC3073 ECJ2VC1H101J 50V
100pF
CERAMICC3077 ECJ2VF1C104Z 16V
100nF
FILMC3101 ECQB1H333J 50V
33nF
FILMC3102 ECQB1H333J 50V
33nF
CERAMIC C3107 ECKC1H561J 50V
560pF
CERAMIC C3109 ECKC1H561J 50V
560pF
CERAMICC3111 ECKC1H103J 50V
100µF
ELECT C3113 ECA1CM470GB 16V
47µF
ELECT C3114 ECEA1CKA470 16V
47µF
ELECT C3115 ECEA1CN470 16V
47µF
CERAMICC3301 ECJ2VF1C104Z 16V
100nF
CERAMICC3302 ECJ2VF1C104Z 16V
100nF
CERAMICC3303 ECJ2VF1C104Z 16V
100nF
CERAMICC3322 ECJ2VC1H471J 50V
470pF
ELECTC3323 ECA1HHG100B 50V
10µF
ELECTC3324 ECA1HHG100B 50V
10µF
CERAMICC3401 ECJ2VC1H561J 50V
560pF
CERAMICC3404 ECJ2VC1H561J 50V
560pF
CERAMICC3407 ECJ2VC1H561J 50V
560pF
CERAMICC3408 ECJ2VC1H561J 50V
560pF
CERAMICC3409 ECJ2VC1H561J 50V
560pF
CERAMICC3410 ECJ2VC1H561J 50V
560pF
CERAMICC3415 ECJ2VC1H102J 50V
1nF
CERAMICC3417 ECJ2VC1H561J 50V
560pF
CERAMICC3418 ECJ2VC1H561J 50V
560pF
CERAMICC3419 ECJ2VC1H561J 50V
560pF
CERAMICC3420 ECJ2VC1H561J 50V
560pF
CERAMICC3425 ECJ2VC1H102J 50V
1nF
CERAMICC3427 ECJ2VC1H561J 50V
560pF
CERAMICC3428 ECJ2VC1H561J 50V
560pF
CERAMICC3429 ECJ2VC1H561J 50V
560pF
CERAMICC3430 ECJ2VC1H561J 50V
560pF
CERAMICC3435 ECJ2VC1H102J 50V
1nF
ELECTC3450 ECEA1AKA221B 10V
220µF
ELECTC3451 ECEA1AKA221B 10V
220µF
ELECT C3452 ECEA1CKA101 16V
100µF
ELECT C3453 ECEA1CKA101 16V
100µF
CERAMICC3454 ECJ2VC1H220J 50V
22pF
CERAMICC3455 ECJ2VC1H220J 50V
22pF
CERAMICC3456 ECJ2VC1H220J 50V
22pF
CERAMICC3457 ECJ2VC1H221J 50V
220pF
CERAMICC3458 ECJ2VC1H221J 50V
220pF
CERAMICC3459 ECJ2VC1H221J 50V
220pF
ELECT C4801 ECA1HM101GB 50V
100µF
CERAMICC4802 ECJ2VF1C104Z 16V
100nF
FILMC4803 ECQV1H334JL3 50V
330nF
FILMC4804 ECQV1H334JL3 50V
330nF
CERAMICC4805 ECJ2VF1C104Z 16V
100nF
CERAMICC4806 ECJ2VB1H103K 50V
10nF
ELECT C4807 ECA1HM4R7GB 50V
4.7µF
ELECT C4808 ECA1HM4R7GB 50V
4.7µF
CERAMICC4809 ECJ2VB1H103K 50V
10nF
TERMINALS AND LINKS
CRT SOCKET JK351 TJS1A5330
AV TERMINAL JK3102 TJB8E026
RCA TERMINAL (2P) JK3406 TJB8E014
FS LINK R868 TSF19252
FS LINK R874 TSF19402
SWITCHES
SWITCH S840 ESB92S11B
SWITCH S1003 EVQ23405R
SWITCH S1004 EVQ23405R
SWITCH S1005 EVQ23405R
SWITCH S1006 EVQ23405R
SWITCH S1007 EVQ23405R
RELAYS
RELAY RL801 K6B1ADA00010
RELAY RL802 K6B2ADA00004
INSTRUCTION BOOKS
O.I.BOOK TQB8E3368
28
