English
9
Connections
●
External equipment and cables shown are not
supplied with this TV.
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable.
●
Use a fully wired SCART cable.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.

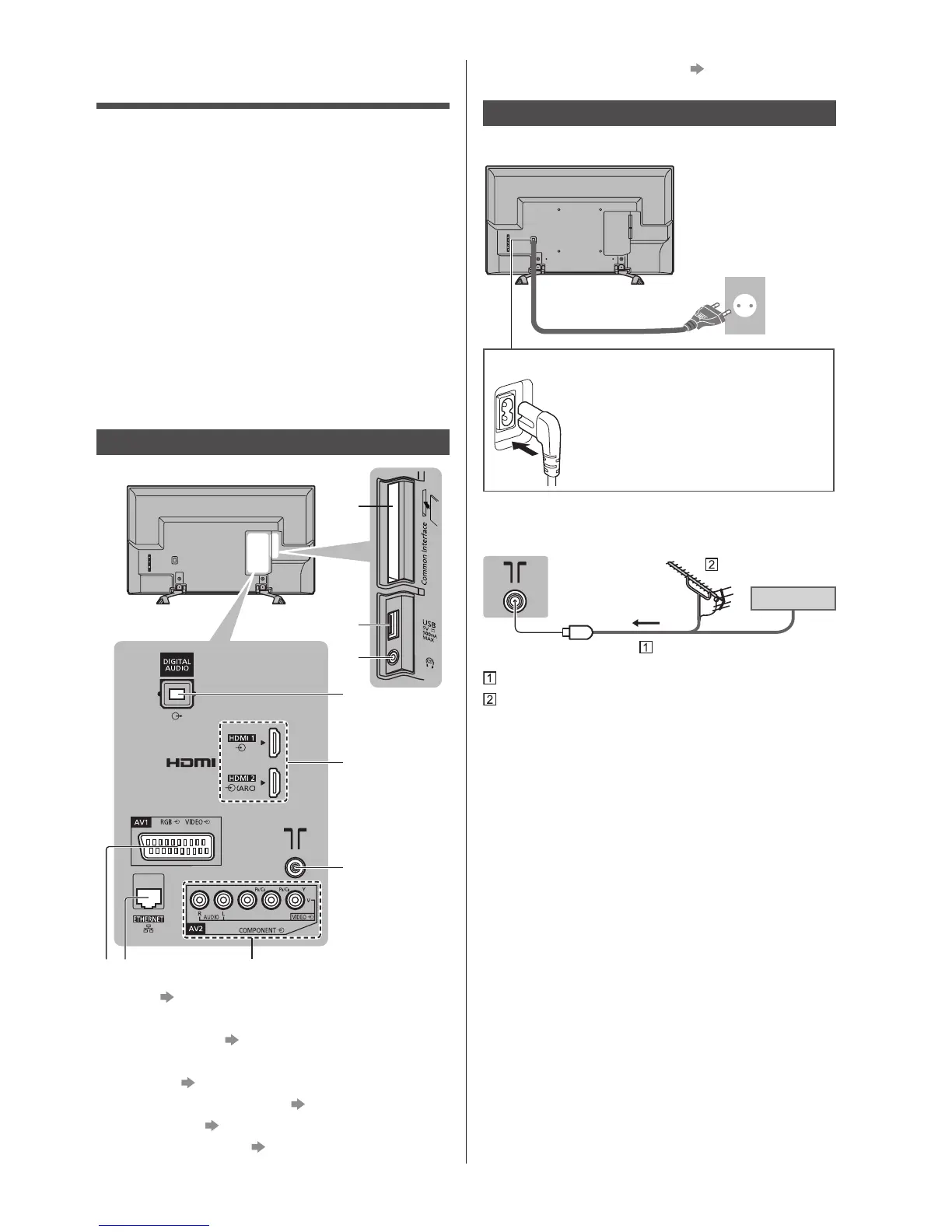

Terminals
6
4
5
1
2
3
1 CI slot (p. 12)
2 USB port
3 Headphone jack
(p. 12)
4 DIGITAL AUDIO
5 HDMI1 - 2
(p. 10, 12)
6 Terrestrial / cable terminal
(p. 9)
7 AV1 (SCART)
(p. 10)
8 ETHERNET terminal
(p. 11)
9 AV2 (COMPONENT / VIDEO)
(p. 11)
Basic connections
■ Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Insert the mains plug firmly into place.
●
When disconnecting the mains lead,
be absolutely sure to disconnect the
mains plug from the mains socket
first.
■ Aerial
TV
Cable
RF cable
Terrestrial aerial
●
For DVB-C, DVB-T, Analogue
