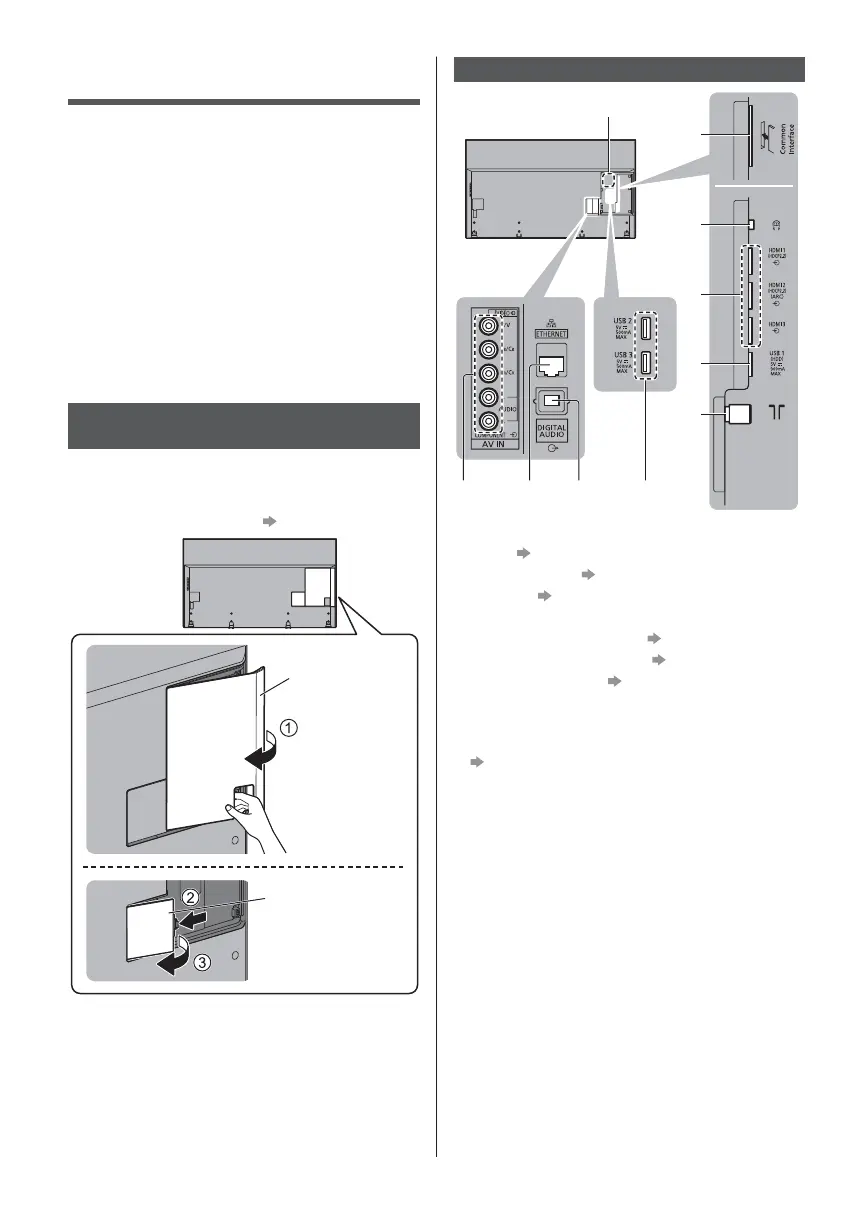

Connections
External equipment and cables shown are not
supplied with this TV.
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
Check the terminal type and cable plugs are correct
for connection.
Use a fully wired HDMI compliant cable.
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
Please also read the manual of the equipment being
connected.
Removing the cable cover / terminal
cover from the TV
Be sure to remove the cable cover / terminal cover
before connecting or disconnecting cables.
When the connections are completed, attach the
cable cover / terminal cover.
(p. 17)
Cable cover
Terminal cover
Terminals
2
3
4
5
6
7 8 9 10
1
1 Model name plate
2 CI slot (p. 16)
3 Headphone jack (p. 15)
4 HDMI1 - 3 (p. 13, 14, 15)
5 USB 1 port
6 Terrestrial / cable terminal
(p. 13)
7 AV (COMPONENT / VIDEO)
(p. 15)
8 ETHERNET terminal
(p. 14)
9 DIGITAL AUDIO
10
USB 2 - 3 port
To watch content in 4K format, use HDMI terminal.
(p. 14)
