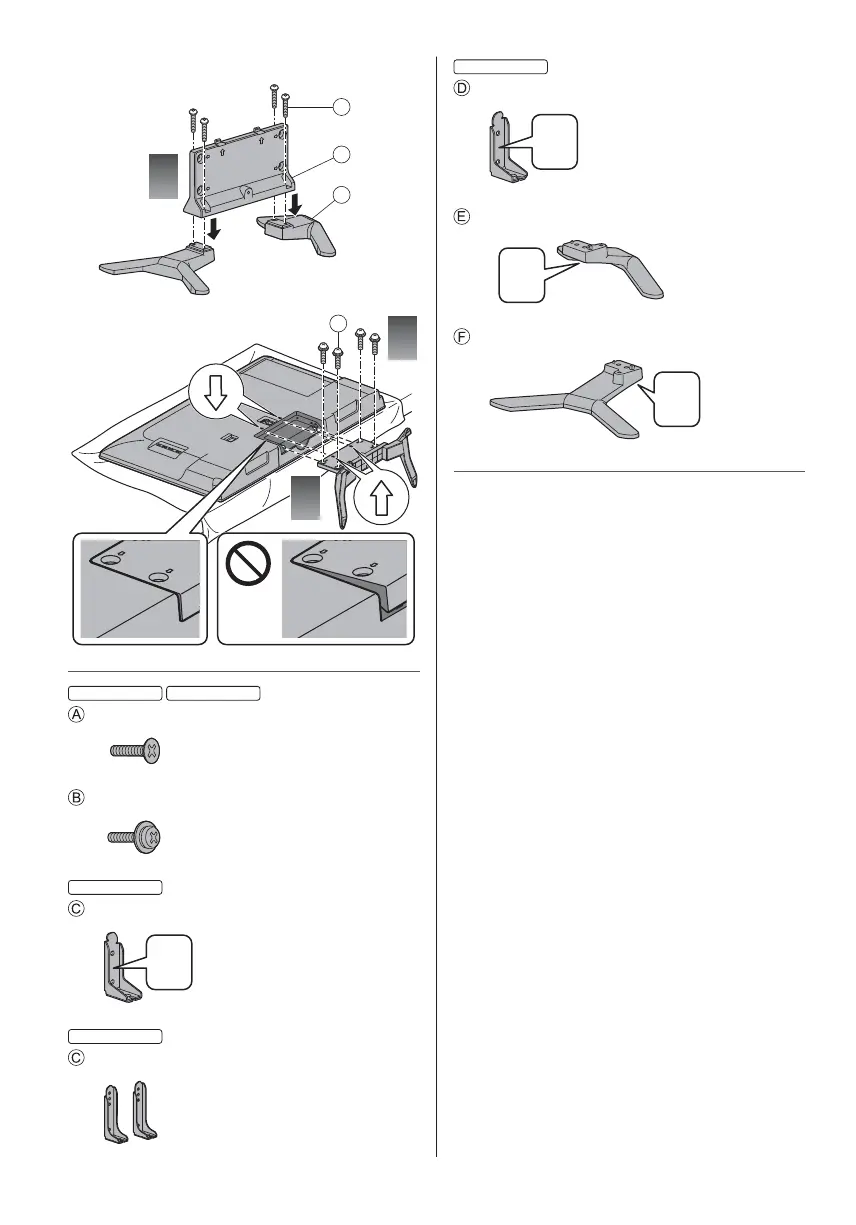

Assembling the pedestal
1
A
D
C
2
3
B
40-inch model
49-inch model
Assembly screw (4)
M5 × 15
Assembly screw (4)
M4 × 12
40-inch model
Bracket (L)
L
49-inch model
Bracket (2)
40-inch model
Bracket (R)
R
Base (L)
L
Base (R)
R
Preparations
Take out the pedestal and the TV from the packing case
and put the TV onto a work table with the screen panel
down on the clean and soft cloth (blanket, etc.).
Use a flat and firm table bigger than the TV.
Do not hold the screen panel part.
Make sure not to scratch or break the TV.
