■ When using the wall-hanging bracket
●
Please contact your local Panasonic dealer to
purchase the recommended wall-hanging bracket.
●

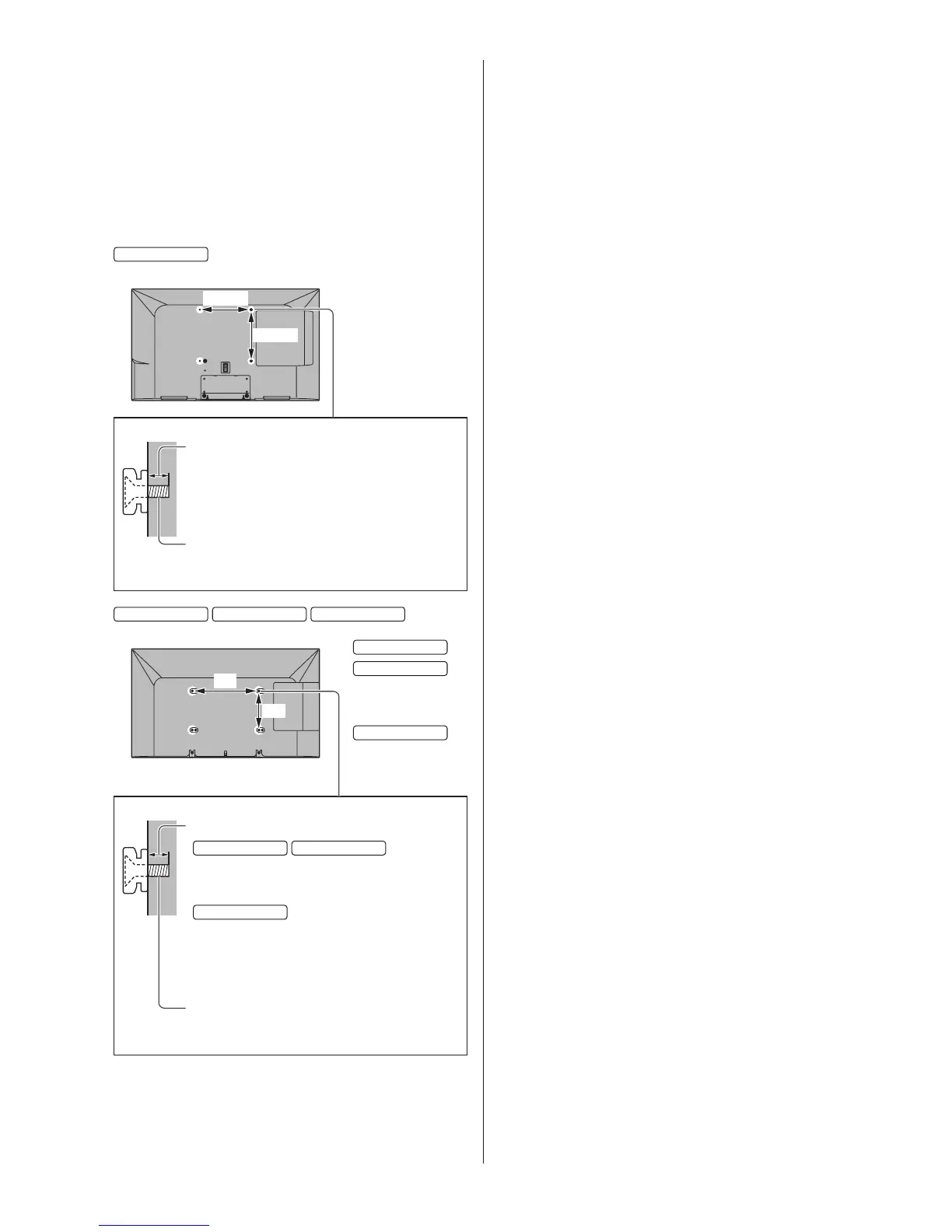

Holes for wall-hanging bracket installation
32-inch model
Rear of the TV
200 mm
200 mm
(View from the side)
Depth of screw
minimum: 7 mm
maximum: 12 mm
Diameter: M4
Screw for fixing the TV onto the
wall-hanging bracket (not supplied with
the TV)
39-inch model 42-inch model 50-inch model
Rear of the TV
a
b
39-inch model
42-inch model
a: 200 mm
b: 200 mm
50-inch model
a: 400 mm
b: 200 mm
(View from the side)
Depth of screw
39-inch model 42-inch model
minimum: 10 mm
maximum: 27 mm
50-inch model
minimum: 10 mm
maximum: 28 mm
Diameter: M6
Screw for fixing the TV onto the
wall-hanging bracket (not supplied with
the TV)
