Panasonic TX-55DX650B - Service Hints; Pedestal Assembly Removal; Back Cover Removal

Service Hints
How to remove the pedestal assembly
How to remove the backcover

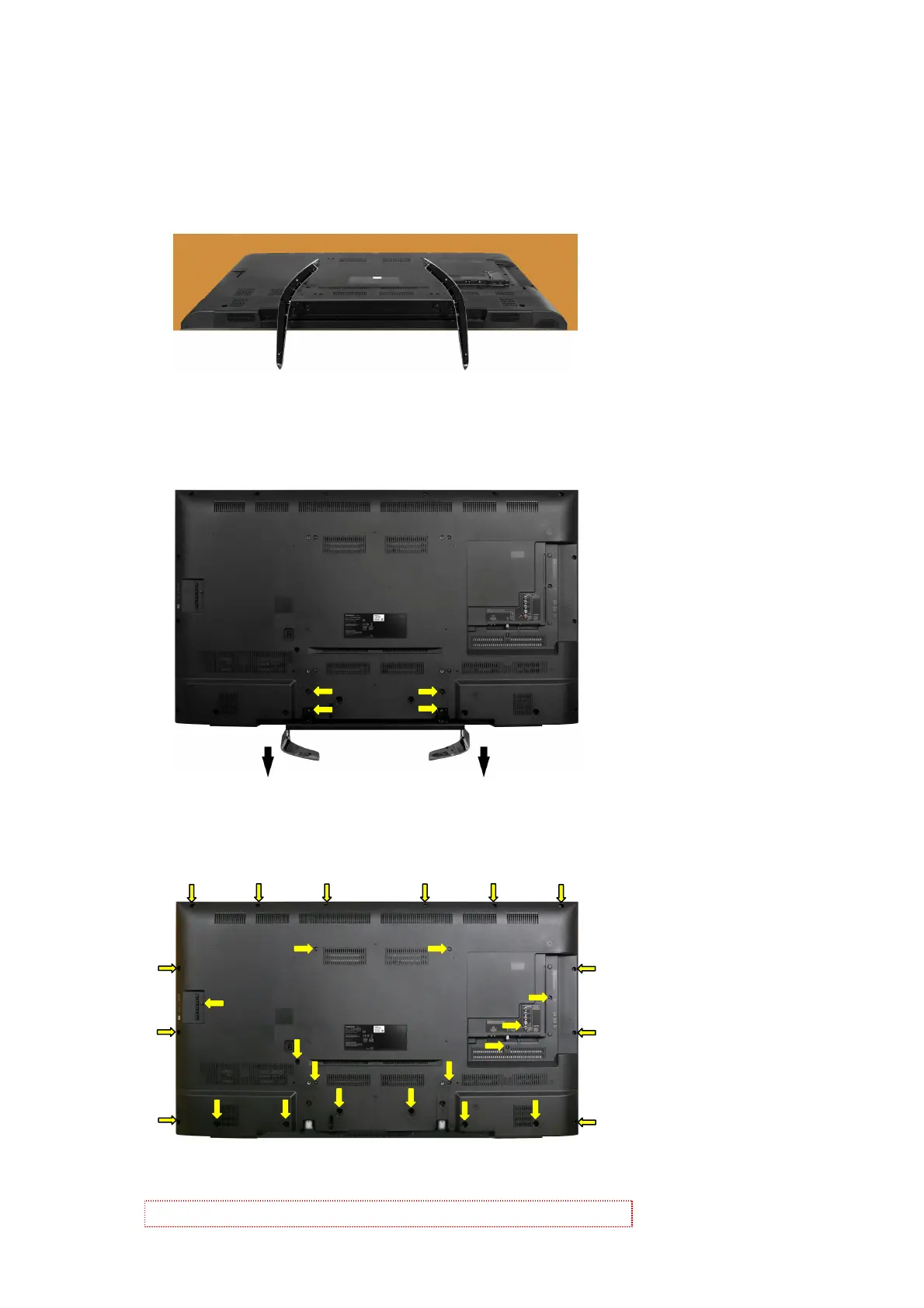

Lay the main unit face down. (see Fig.5)
Remove the 4 fixing screws and Pedestal assembly. (see Fig.6)
Remove the 27 fixing screws and the back cover. (see Fig.7)
(1)
(1)
(1)
(1)
Fig.6
Caution: Before removing cover, receiver must be disconnect from mains.
Fig.5
SCREWS
(1) THE5ZL002N /4pcs/
(2)
(2)
(2)
Fig.7
SCREWS
(2) THEC1509 /21pcs/
(3) THTD037J /6pcs/
(2)
(2)
(2)
(3)
(3)
(3)
(2)
(2)
(3)
(3)
(3)
(2)(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2)
(2) (2)
(2)
7
