English
14

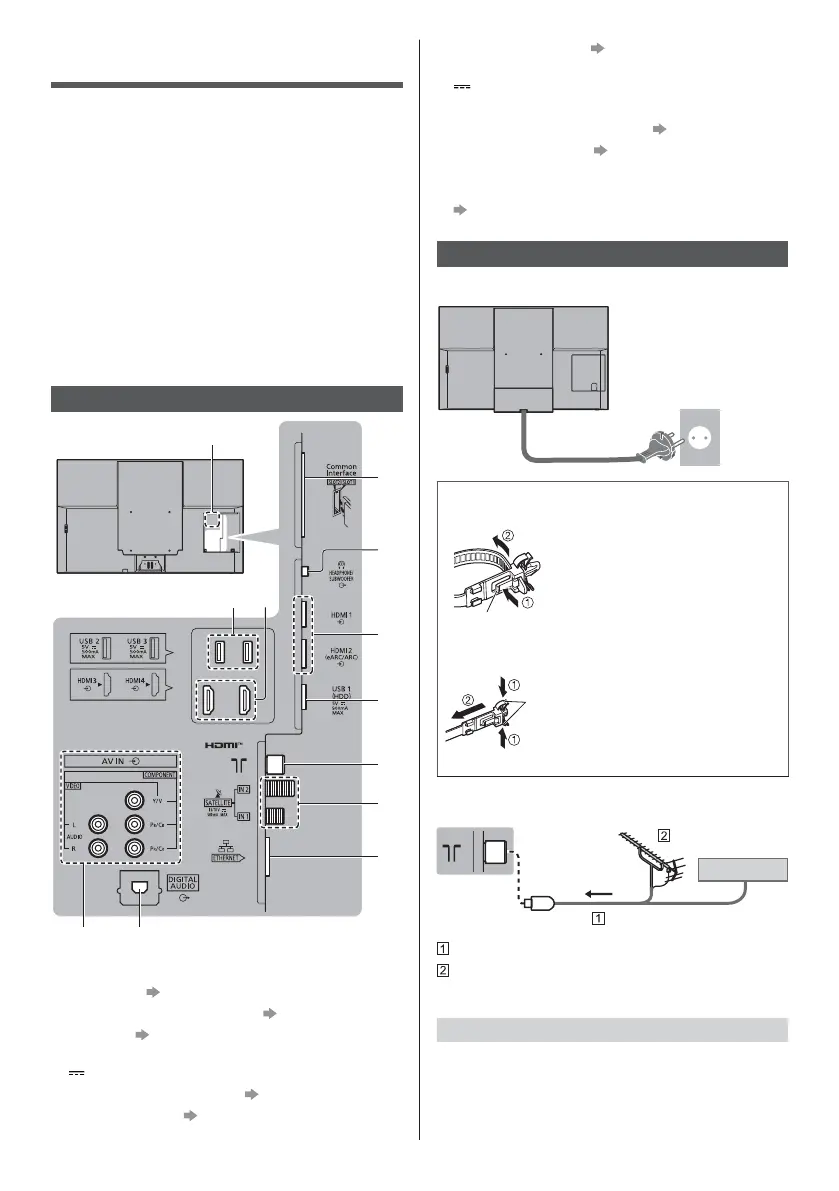

Connections
External equipment and cables shown are not
supplied with this TV.
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
Check the terminal type and cable plugs are correct
for connection.
Use a fully wired HDMI compliant cable.
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
Please also read the manual of the equipment being
connected.
Terminals
2
3
4
5
6
7
1
8
910
11 12
1 Model name plate
2 CI slot 1 - 2
(p. 18)
3 Headphone / Subwoofer jack (p. 17, 18)
4 HDMI1 - 2 (p. 16, 17)
5 USB 1 port
This symbol indicates DC operation.
6 Terrestrial / cable terminal
(p. 14)
7 Satellite terminal (p. 14)
8 ETHERNET terminal
(p. 16)
9 USB 2 - 3 port
This symbol indicates DC operation.
10
HDMI3 - 4
11
AV IN (COMPONENT / VIDEO) (p. 17)
12
DIGITAL AUDIO OUT (p. 17)
To watch content in 4K format, use HDMI terminal.
(p. 16)
Basic connections
Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
Cable tie (Bundled the mains lead)
To loosen:
Knob
Keep pushing the knob
To remove from the TV:
Keep pushing both side snaps
Snaps
Aerial
TV
Cable
RF cable
Terrestrial aerial
For DVB-C, DVB-T, Analogue
Satellite connection
For DVB-S
To Next Page
