Panasonic TX-L32C4E - Chassis Board Layout; Location of Lead Wiring

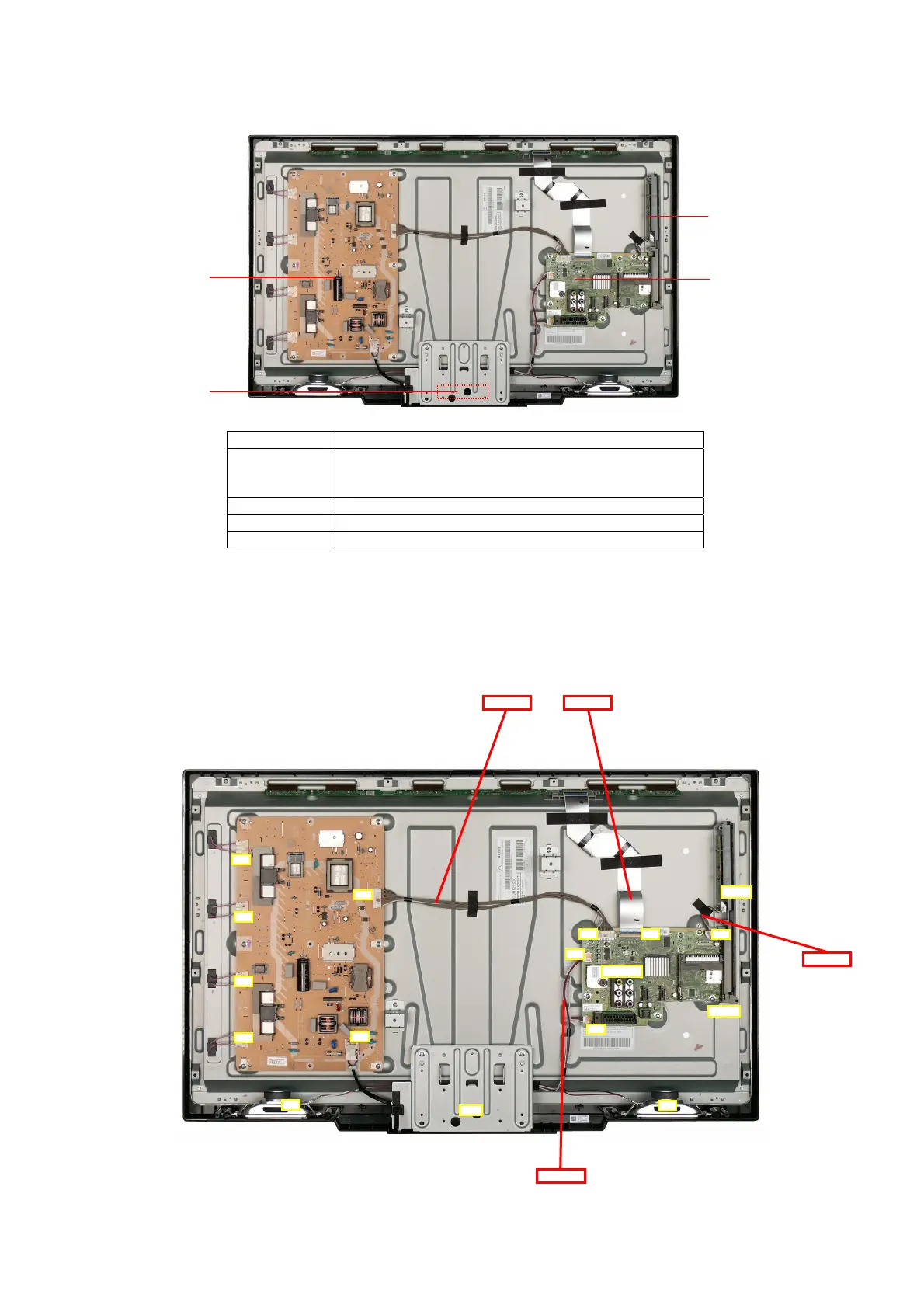

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
AV Terminal, HDMI, Digital Audio Out,Tv tuner, SD Card
CI slot, sLD2, AV switch, Speaker Out, EEPROM
FlashMemory, DDR SDRAM
P-Board Power Supply, Main Input, Inverter
KA-Board Remote Receiver, R/G LED
GK-Board Control Button, Power Switch
GK-BOARD
P-BOARD
A-BOARD
A-KA-SP
A14-PAN A09-P2
A
14
A
09
A
10
A
12
A02-GK01
A02
K
A
10
P2
SP
SP
P1
TU4801
A-Board
JK8850
P8
P7
P6
P5
GK01
KA-BOARD
9
