Panasonic TX-L37G10E - Chassis Board Layout; Location of Lead Wiring

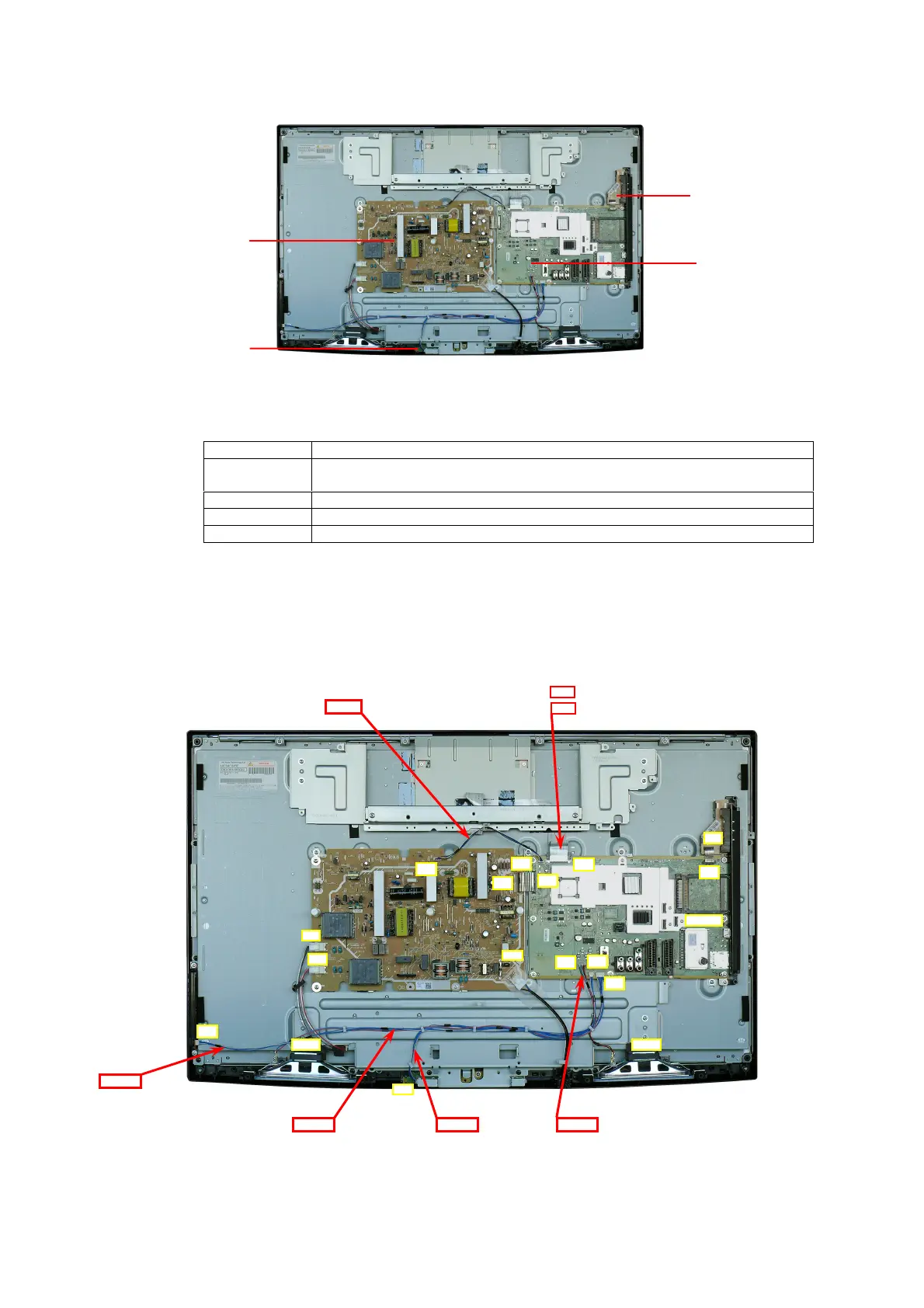

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
A-Board AV Terminal, HDMI, AV Switch, Sound Processor, TV tuner, PC,SD Card,
OFDM, ZWEI, GENX, EEPROM, ADV, Peaks AVC, Speaker out
G-Board Side AV Terminal
V-Board Remote Receiver, R&G LED, Timer Rec LED, C.A.T.S., SD LED
P-Unit Main Input, Power Supply, Inverter
P-UNIT
G-BOARD
V-BOARD
A-BOARD
9
A20-P4
A01
P4
SPL
V10
LVDS
P6
K01
A10
P1
A04
LVDS
(32’’)
(37’’)
A-K/SP/V
G04
TU2901
A12
A03
P2
A11
A20
SPR
P5
(32’’+37’’)
(32’’)
A12-SP
(37’’)
A10-V10
(37’’)
A01-K01
(37’’)
