Basic Connection
Quick Start Guide
11

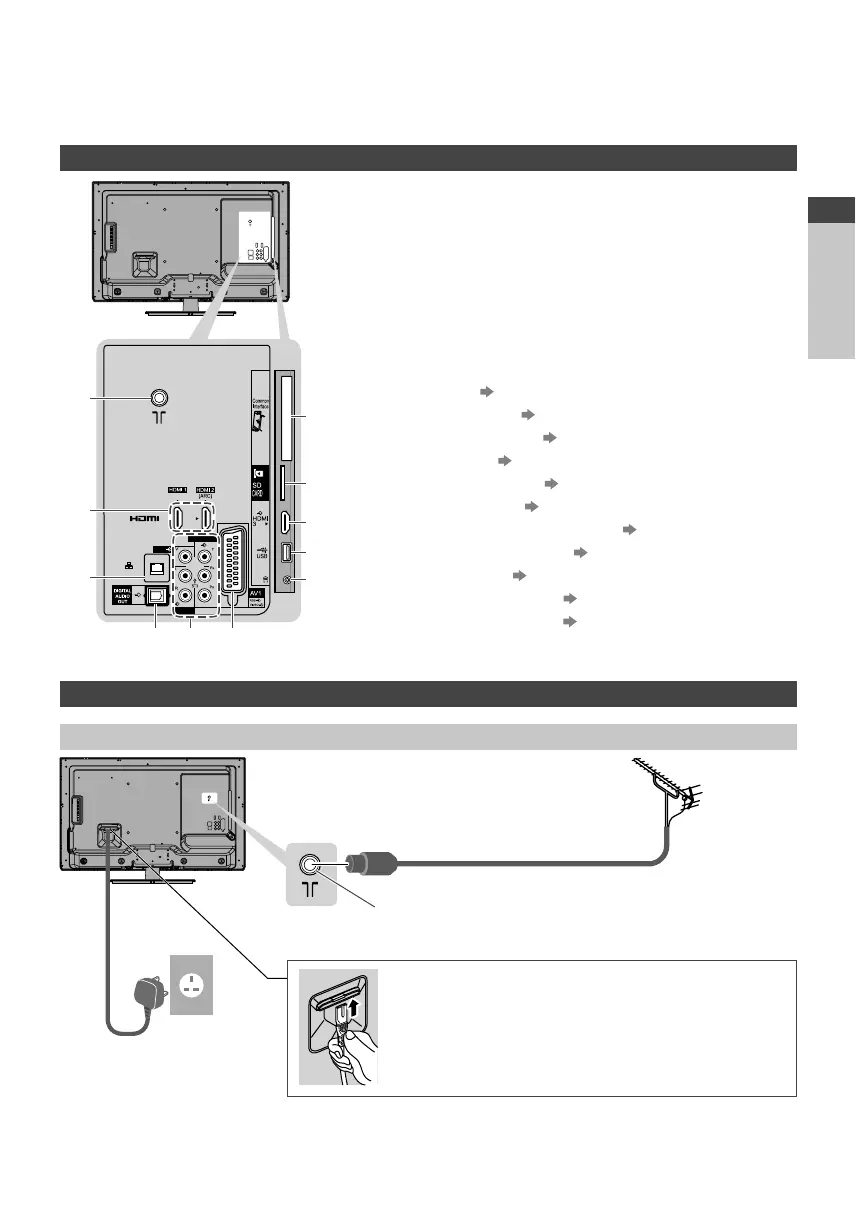

Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Terminals
AUDIO IN
COMPONENT
AV2
ETHERNET
1
2
3
4
5
678
10
9
11
1
CI slot (p. 50)
2
SD Card slot (p. 52)
3
HDMI 3 terminal (p. 68)
4
USB port (p. 52)
5
Headphone jack (p. 68)
6
AV1 (SCART) (p. 12, 13)
7
AV2 (COMPONENT / VIDEO) (p. 68, 69)
8
DIGITAL AUDIO OUT (p. 69)
9
ETHERNET (p. 46, 68)
10
HDMI 1 - 2 terminal (p. 12, 13)
11
Terrestrial terminal (p. 11)
Connections
Mains lead and aerial
Terrestrial aerial
AC 220-240 V
50 / 60 Hz
Mains
lead
RF cable
DVB, Analogue
Mains Lead
Insert the mains plug (supplied) firmly into place.
When disconnecting the mains lead, be absolutely sure to
disconnect the mains plug at the socket outlet first.
Aerial input terminal
tx-l32x5b_2217.indb 11 3/9/2012 7:47:23 PM
