Panasonic WJ-AVE7 - Major Operating Controls

(1) Power Switch (POWER ON/OFF)
@ Indicator Section
(2) Power Indicator (POWER)
(3) Audio Level Indicator (AUDIO LEVEL)
@ Wipe Mode Section (WIPE MODE)
(4)
(5)
(6)
(7)
(8)
(9)

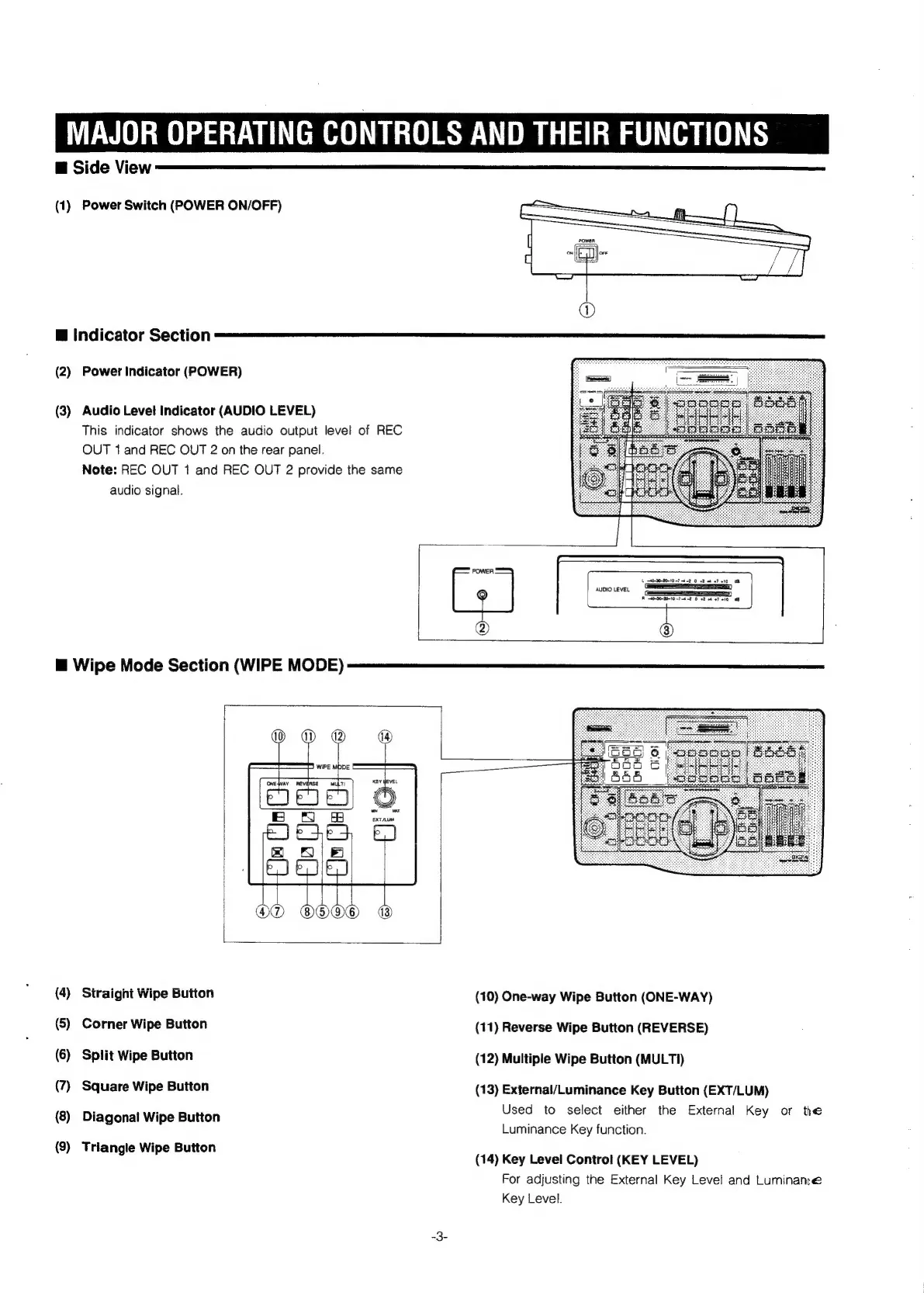

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
@ Side View
This indicator shows the audio output level of REC
OUT 1 and REC OUT 2 on the rear panel.
Note: REC OUT 1 and REC OUT 2 provide the same
audio signal.
L
AUDIO LEVEL
Straight Wipe Button
Corner Wipe Button
Split Wipe Button
Square Wipe Button
Diagonal Wipe Button
Triangle Wipe Button
ae
(10) One-way Wipe Button (ONE-WAY)
(11) Reverse Wipe Button (REVERSE)
(12) Multiple Wipe Button (MULTI)
(13) External/Luminance Key Button (EXT/LUM)
Used to select either the External Key or the
Luminance Key function.
(14) Key Level Control (KEY LEVEL)
For adjusting the External Key Level and Luminane
Key Level.
