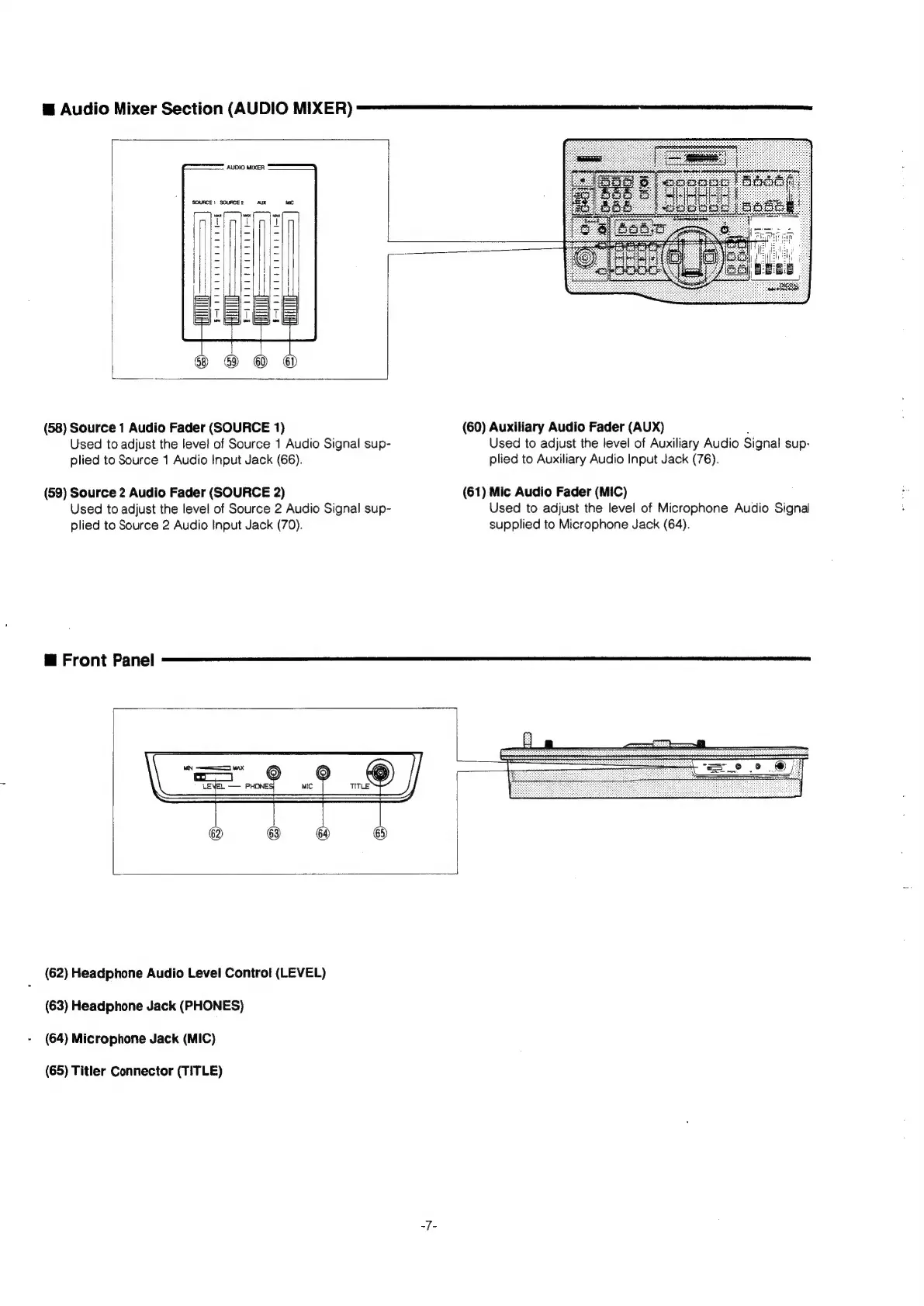

Audio
Mixer
Section
(AUDIO
MIXER)
AUDIO
MIXER
F—-1
bree
ri
rtttreg
(58)
Source
1
Audio
Fader
(SOURCE
1)
Used
to
adjust
the
level
of
Source
1
Audio
Signal
sup-
plied
to
Source
1
Audio
Input
Jack
(66).
(59)
Source
2
Audio
Fader
(SOURCE
2)
Used
to
adjust
the
level
of
Source
2
Audio
Signal
sup-
plied
to
Source
2
Audio
Input
Jack
(70).
@
Front
Panel
(60)
Auxiliary
Audio
Fader
(AUX)
:
Used
to
adjust
the
level
of
Auxiliary
Audio
Signal
sup-
plied
to
Auxiliary
Audio
Input
Jack
(76).
(61)
Mic
Audio
Fader
(MIC)
Used
to
adjust
the
level
of
Microphone
Audio
Signal
supplied
to
Microphone
Jack
(64).
(62)
Headphone
Audio
Level
Control
(LEVEL)
(63)
Headphone
Jack
(PHONES)
(64)
Microphone
Jack
(MIC)
(65)
Titler
Connector
(TITLE)
