Panasonic WV-CP410

(1)
(2)
(3)
(4
—
(5)

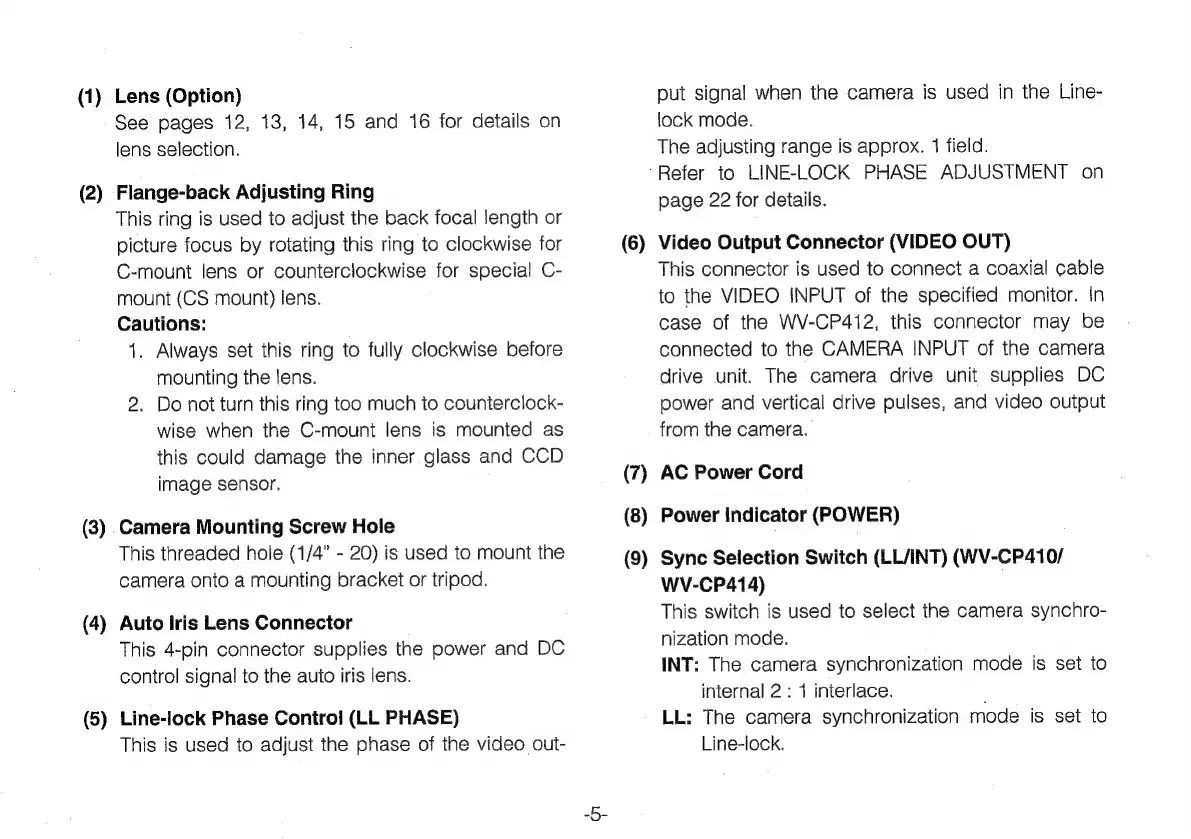

Lens (Option)
See pages 12, 13, 14, 15 and 16 for details on
lens selection.
Flange-back Adjusting Ring
This ring is used to adjust the back focal length or
picture focus by rotating this ring to clockwise for
C-mount lens or counterclockwise for special C-
mount (CS mount) lens.
Cautions:
1. Always set this ring to fully clockwise before
mounting the lens.
2. Do not turn this ring too much to counterclock-
wise when the C-mount lens is mounted as
this could damage the inner glass and CCD
image sensor.
Camera Mounting Screw Hole
This threaded hole (1/4” - 20) is used to mount the
camera onto a mounting bracket or tripod.
Auto Iris Lens Connector
This 4-pin connector supplies the power and DC
control signal to the auto iris lens.
Line-lock Phase Control (LL PHASE)
This is used to adjust the phase of the video out-
(6)
(7)
(8)
(9)
put signal when the camera is used in the Line-
lock mode.
The adjusting range is approx. 1 field.
Refer to LINE-LOCK PHASE ADJUSTMENT on
page 22 for details.
Video Output Connector (VIDEO OUT)
This connector is used to connect a coaxial cable
to the VIDEO INPUT of the specified monitor. In
case of the WV-CP412, this connector may be
connected to the CAMERA INPUT of the camera
drive unit. The camera drive unit supplies DC
power and vertical drive pulses, and video output
from the camera.
AC Power Cord
Power Indicator (POWER)
Sync Selection Switch (LL/AINT) (WV-CP410/
WV-CP414)
This switch is used to select the camera synchro-
nization mode.
INT: The camera synchronization mode is set to
internal 2 : 1 interlace.
LL: The camera synchronization mode is set to
Line-lock.
