Panduit TX6 PLUS - Advanced Wiring and Final Assembly; Removal Steps; Removing the Jack Module; Disconnecting and Re-terminating Wires

CWST
INSTALLATION INSTRUCTIONS
Cable End 1
10
Cable End 2
Cable End 1
Cable End 2
9
T568B
T568A
11
EGJT
12
13
2
Notes:
1. For specified performance, follow ANSI/NECA/BICSI-568-2006 installation guidelines.
2. Jack Modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062 (1.57 mm) maximum insulated conductor outside diameter.
3. Jack Modules may be re-terminated a minimum of 20 times.
4. On cable end 2 for A & B wiring and cable end 1 of A wiring, wrap the designated pairs around the proper center dividing post (A or B) and terminate in
the proper location.
5. For technical and performance information, consult Panduit Technical Support.
As with all Communication Components, the following statements apply:
1. Never install communications wiring during a lightning storm.
2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
4. Use caution when installing or modifying communication wiring.
Page 2 of 2
For Instructions in Local Languages
and Technical Support:
http://www.panduit.com/resources/install_maintain.asp
E-mail:
techsupport@panduit.com
Phone:
866-405-6654
www.panduit.com

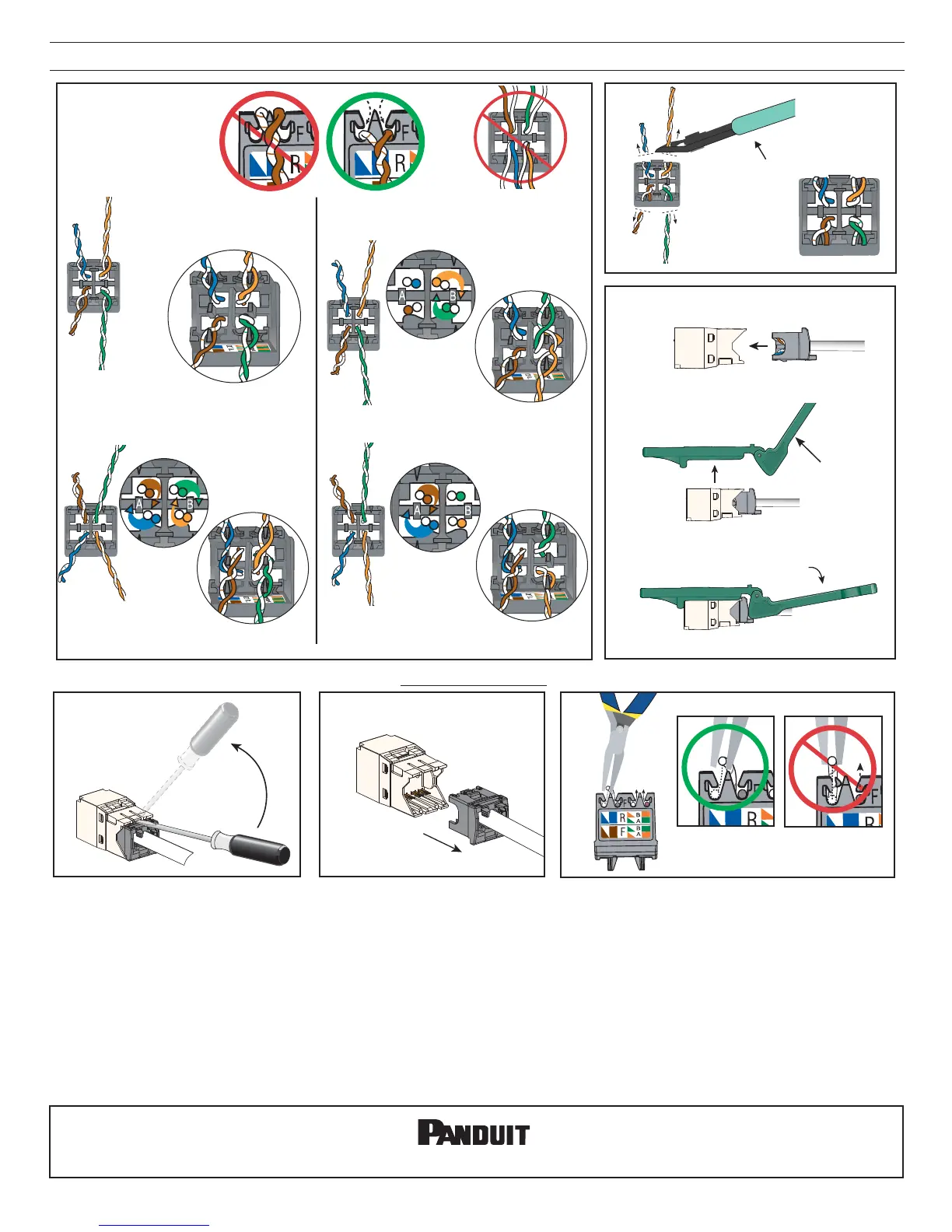

REMOVAL STEPS
1
2
1
3
1
2
3
1
2
3
See note 4.
1
2
3
PN403L
©Panduit Corp. 2011
