Pantum P2200 Series User Manual

15

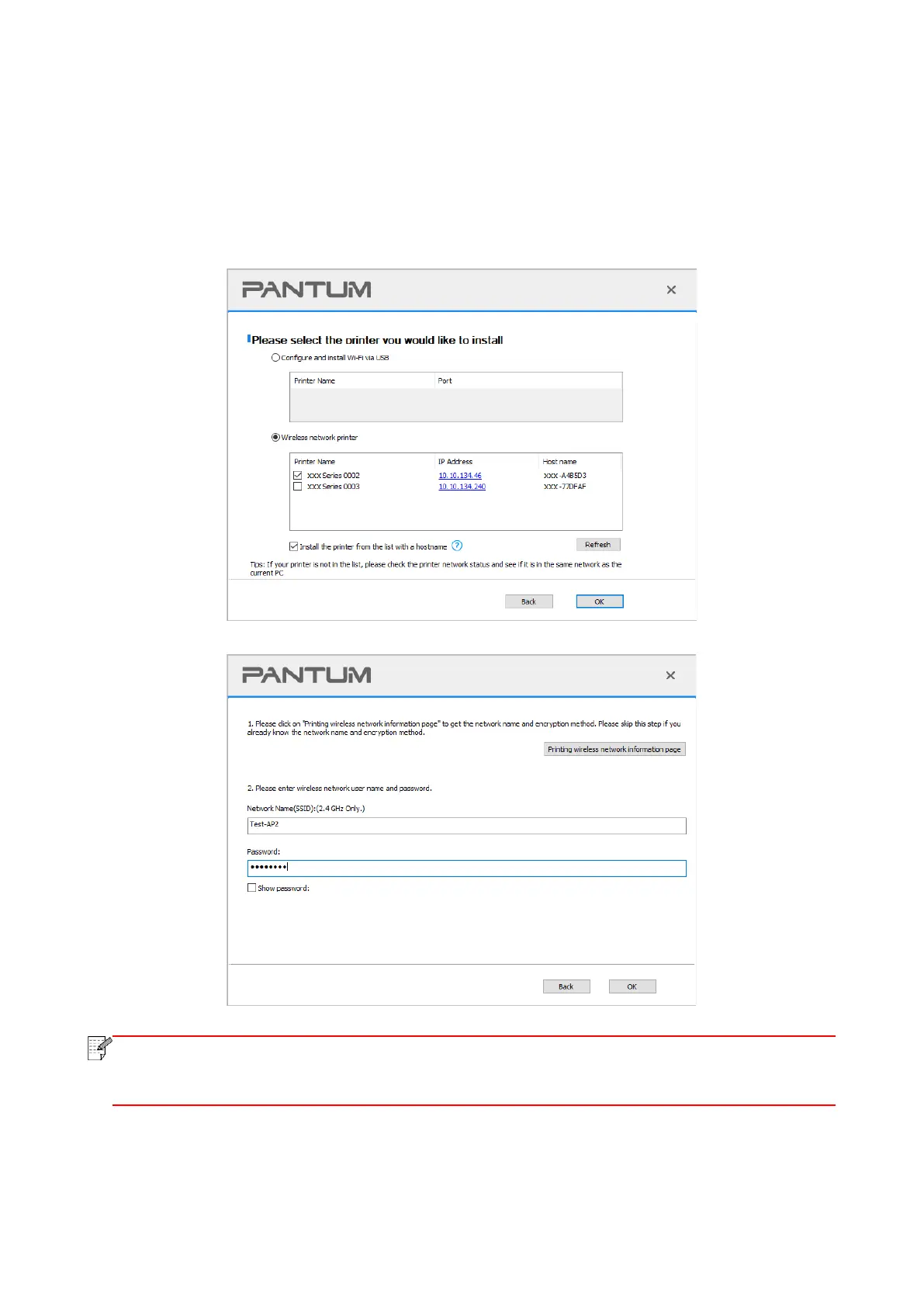

• If your software has searched more than one printers, the printer list interface will pop up.You
need to configure the current printer which is connected via USB cable to wireless network and
install driver. Please select "Configure the print via USB and install" on the printer list interface and
check the USB printer option. Click the "Confirm" button, and the wireless network configuration
interface will pop up. Input the wireless SSID and password that you need, then click "Confirm"
button, and enter into installation process. The process may need some time, and the duration is
related to your computer configuration, please wait patiently.
Note:
• When the printer IP address changes under printer driver installed with host ID , you can
also directly print without re-installing the driver. If you need to install the printer driver with
the host ID, please check the option "Install the printer in the list with host ID".
7. After the installation, click "Print &Test Page" button. If your printer prints the test page
successfully, it means that you have installed the driver correctly.

Pantum P2200 Series Specifications

General

Print Technology	Monochrome Laser
Max Print Resolution	1200 x 1200 dpi
Paper Input Capacity	150 sheets
Paper Output Capacity	100 sheets
Printer Language	GDI
Processor Speed	600 MHz
Memory	64 MB
Connectivity	USB 2.0
Media Weight	60-163 g/m²
Compatible Operating Systems	Windows, Linux, Mac OS
Dimensions	337 x 220 x 178 mm
Weight	4.75 kg
First Print Out Time	Less than 7.8 seconds
Recommended Monthly Page Volume	250 to 2, 000 pages
Media Types	Plain, Cardstock, Label, Envelope, Thin
Media Sizes	A4, A5, A6, B5, Legal, Letter, Executive, DL envelope, C5 envelope, Postcard
Power Consumption	Average: 370W
Print Speed	Up to 20 ppm
