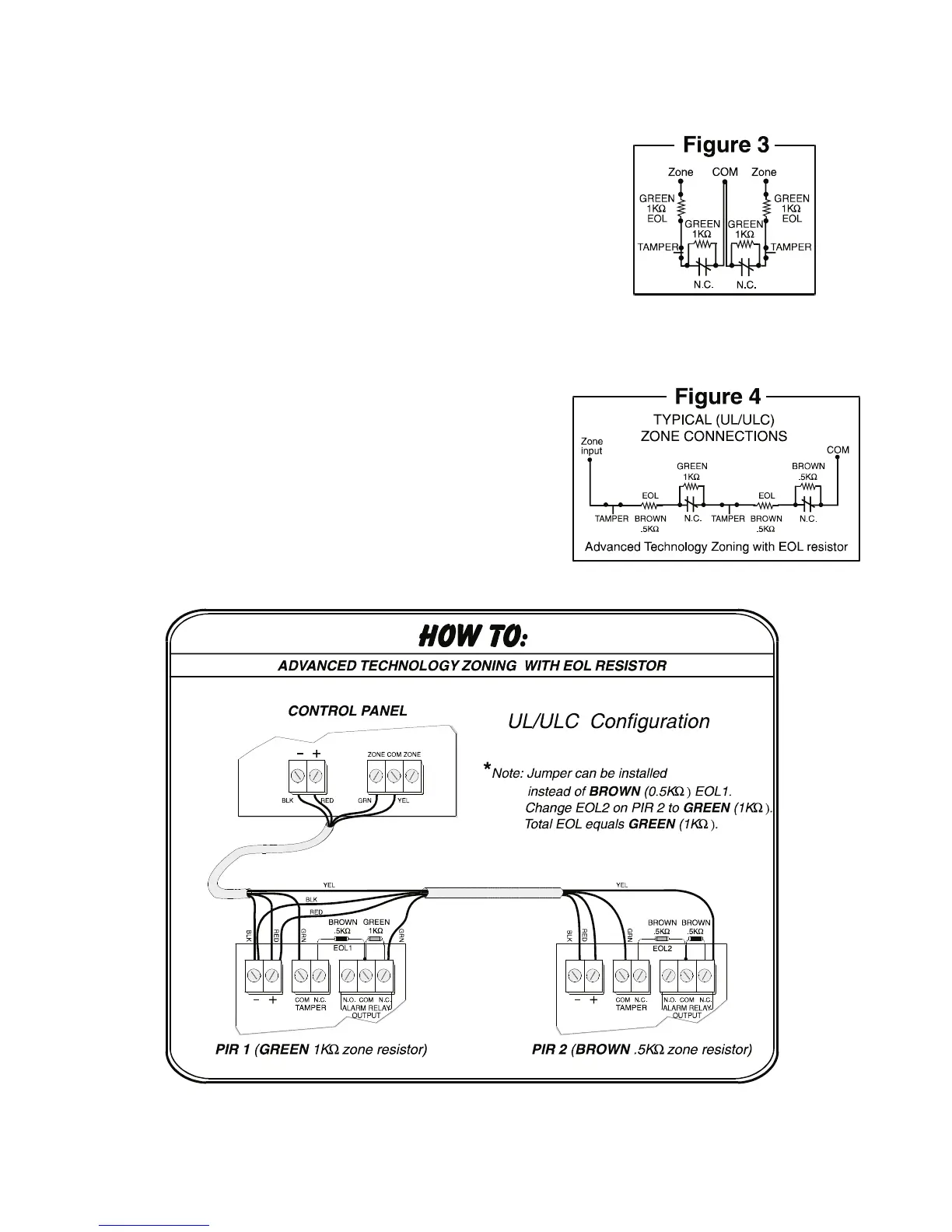

SINGLE ZONE connection with 1 green (1K
OHM
) EOL resistor, tamper recognition (N.C. contacts)
address 208, key [MEM] = "off"
key [10] =
key [11] =
address 210, key [8] = "off"
Tamper fault transmits separate code, see Figure 3
ADVANCED TECHNOLOGY ZONE connection, 2 zone with zone resistors, 1 green (1K
OHM
) EOL
resistor tamper (open) recognition, wire fault (short circuit) recognition (N.C. contacts)
address 208, key [MEM] = "off"
key [10] =
key [11] =
address 210, key [8] = "on"
Tamper fault transmits separate code. Each zone transmits
separate alarm code. Wire faults (short circuit) transmit alarm
codes, and are indicated by fast flashing zone light on keypad
and reported in
Espload
, see figure 4.
IM8
11
(UL/ULC configuration)
See "Tamper/wire Fault Definitions
and Options"
See "Tamper/wire Fault Definitions
and Options"
(UL/ULC configuration)
*Not available on models
718, 748ES
*
